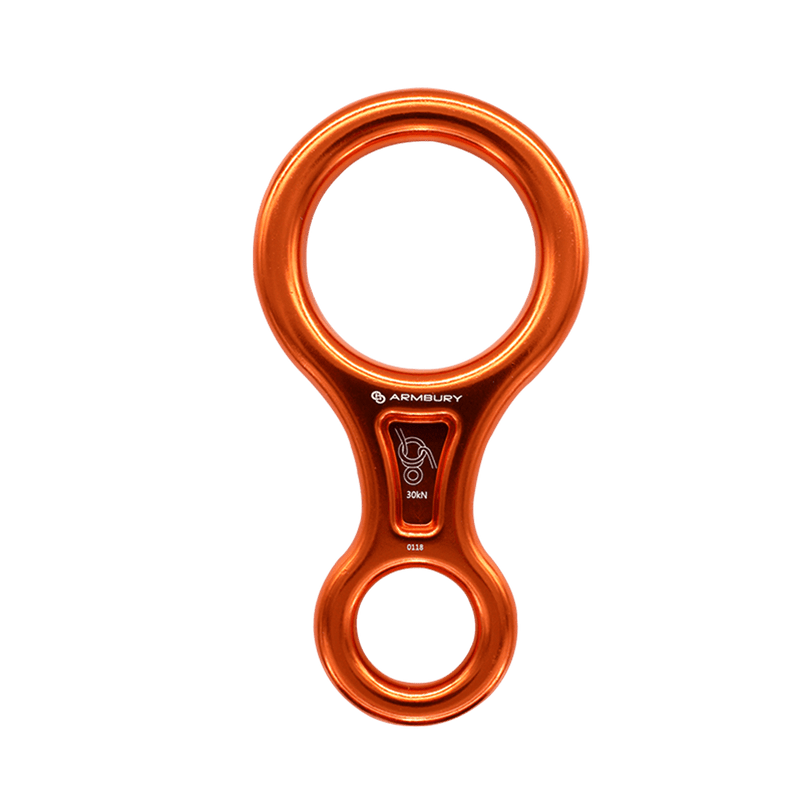

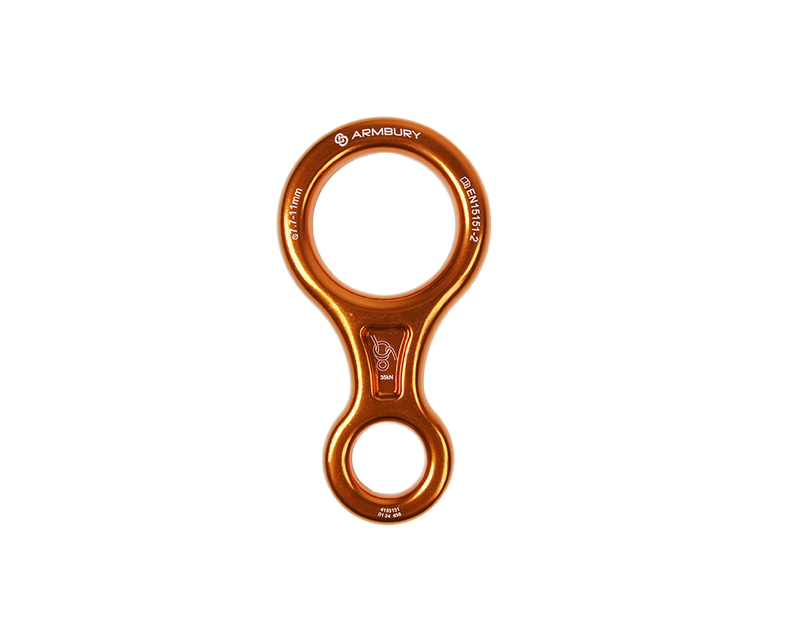

ARMBURY Figure 8 Belay & Rappel Device
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

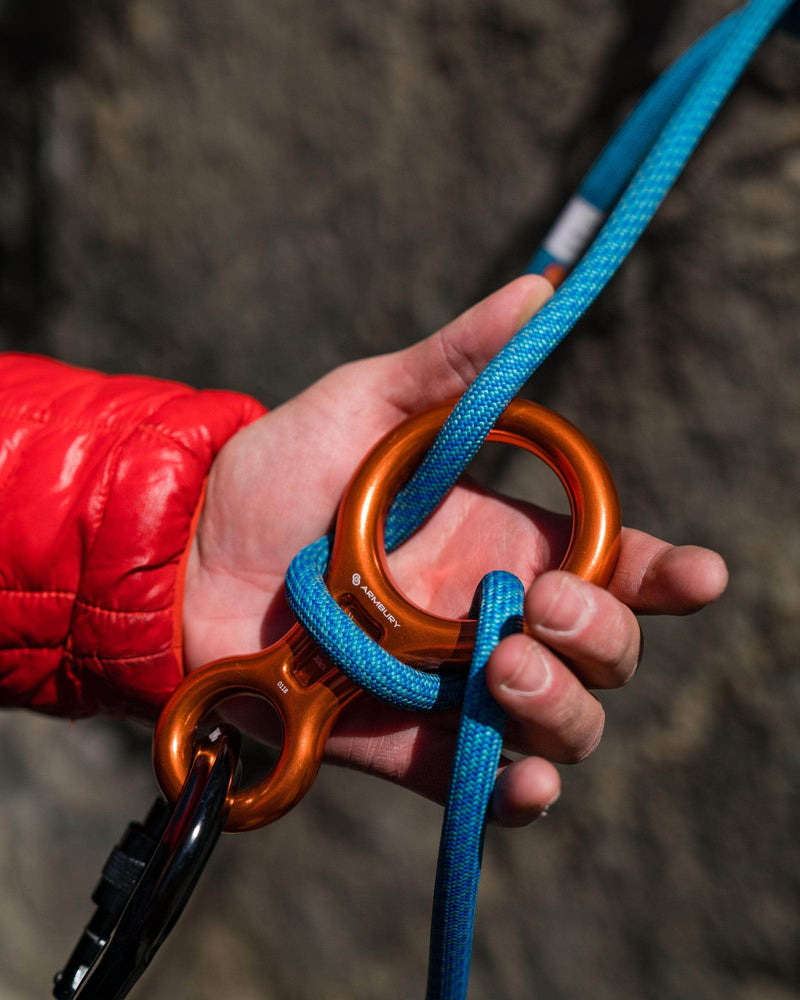

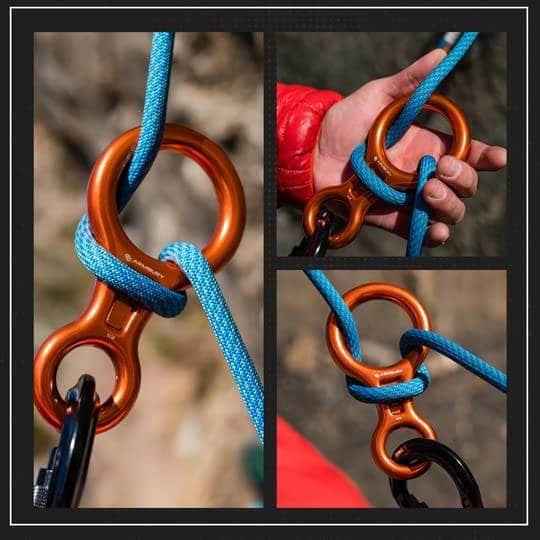

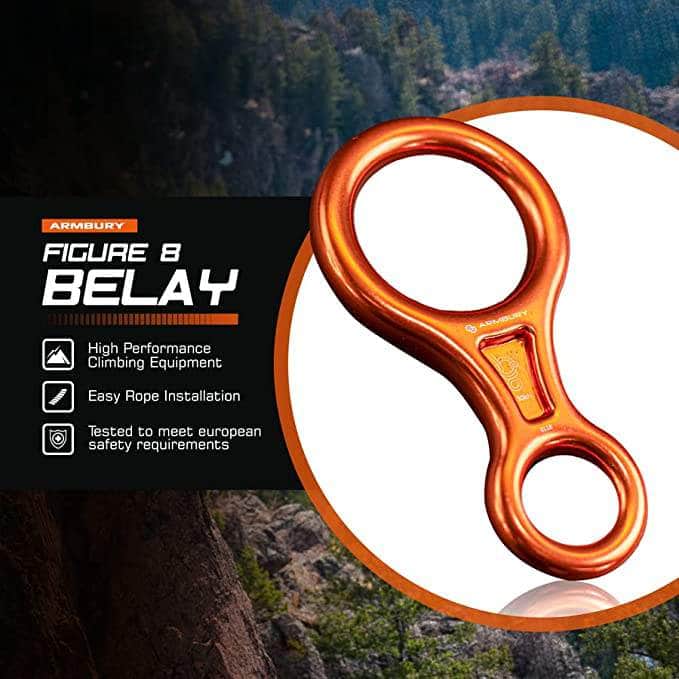

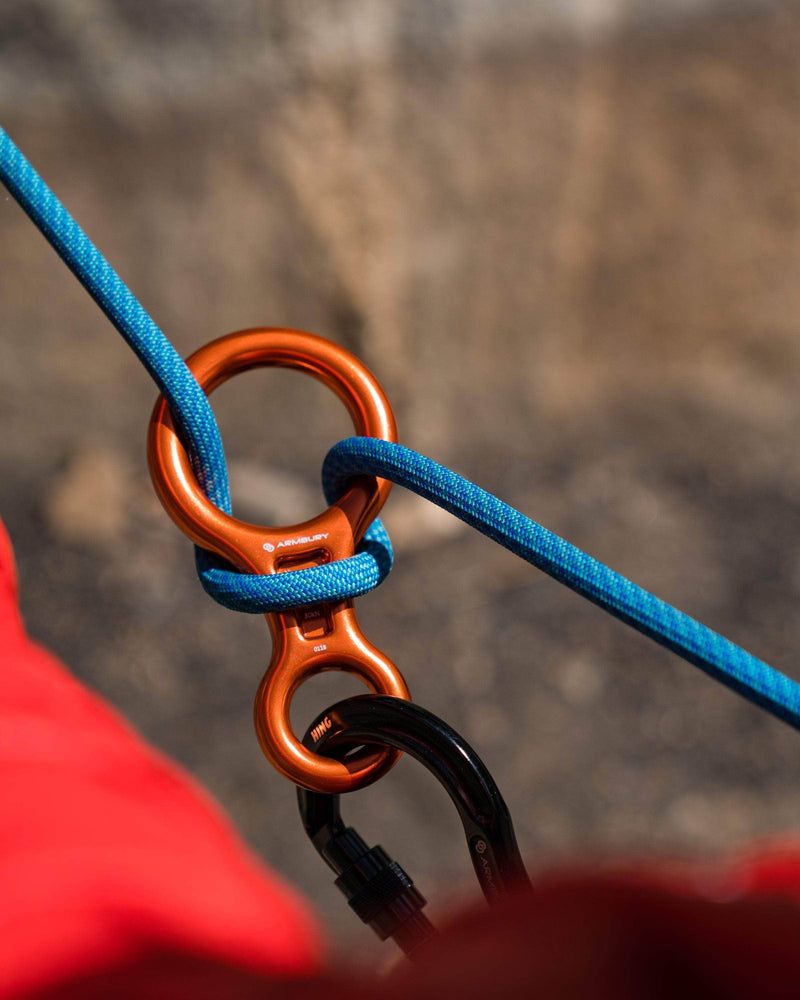

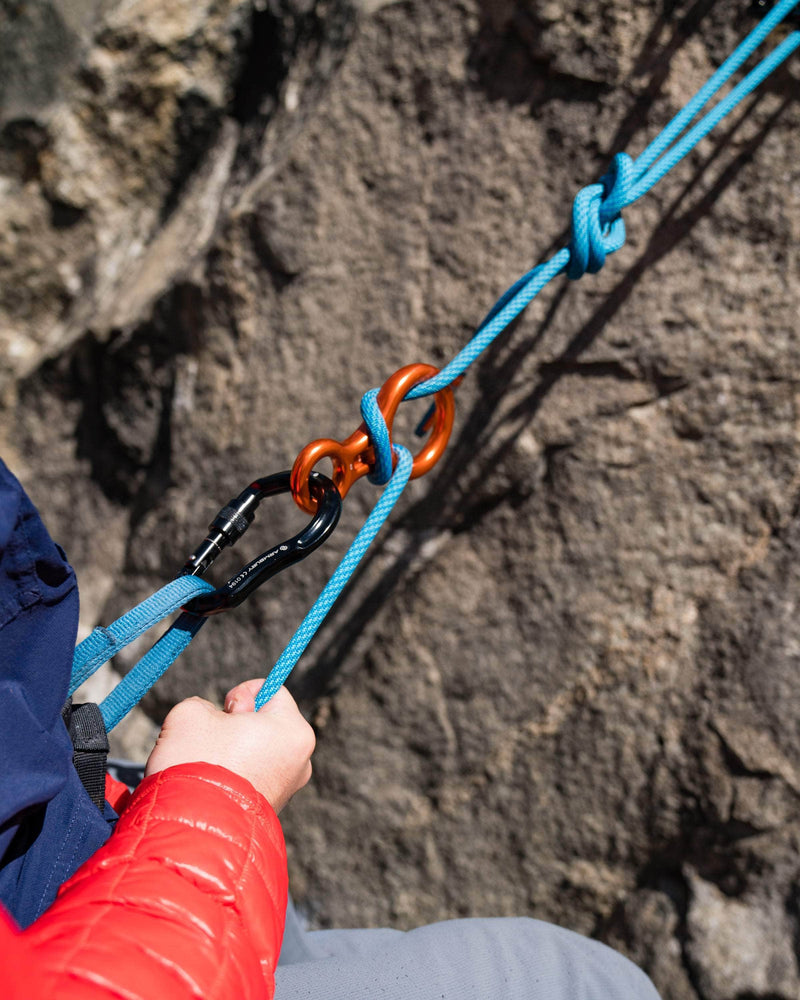

The ARMBURY Figure 8 is a traditional belay and rappel device made from robust, hot-forged aluminium. Compatible with single, half and twin ropes within the manufacturer's specified 7.7–11 mm range, it offers a straightforward design for trained users. At just 132 g, it keeps equipment weight low while providing a manufacturer-listed minimum breaking load of 35 kN.
Simple Design, Versatile Rope Compatibility
When assembling your rope kit, the Figure 8 combines a familiar belay and rappel design with lightweight alloy construction. The manufacturer also identifies it as suited for rigging and rescue, subject to the approved configuration and instructions. Its compatibility with single, half and twin ropes gives you options when selecting an appropriate system.
Key Features
- Traditional figure-eight design: A straightforward belay and rappel device for trained users.
- Hot-forged aluminium: Robust construction with a low 132 g weight.
- Rope compatibility: Single, half and twin ropes, within the manufacturer's instructions.
- Specified rope range: 7.7–11 mm.
- Additional applications: Manufacturer-described suitability for rigging and rescue in approved setups.
Size & Color
-
Available colors:

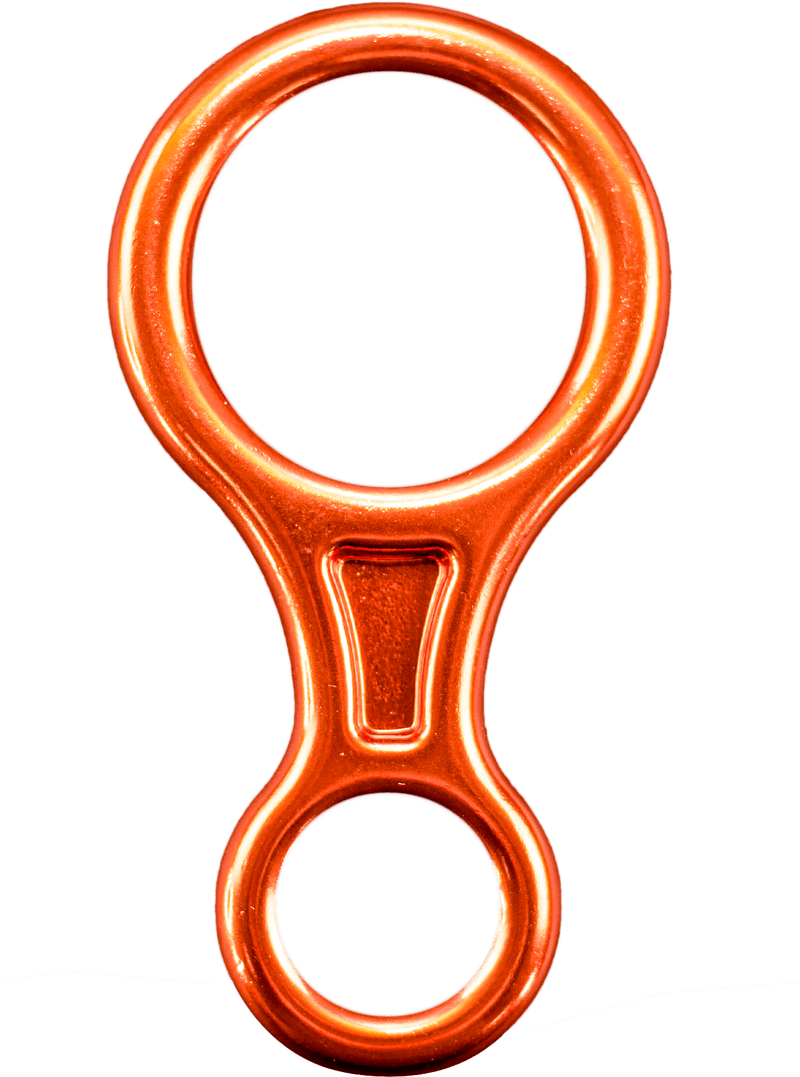

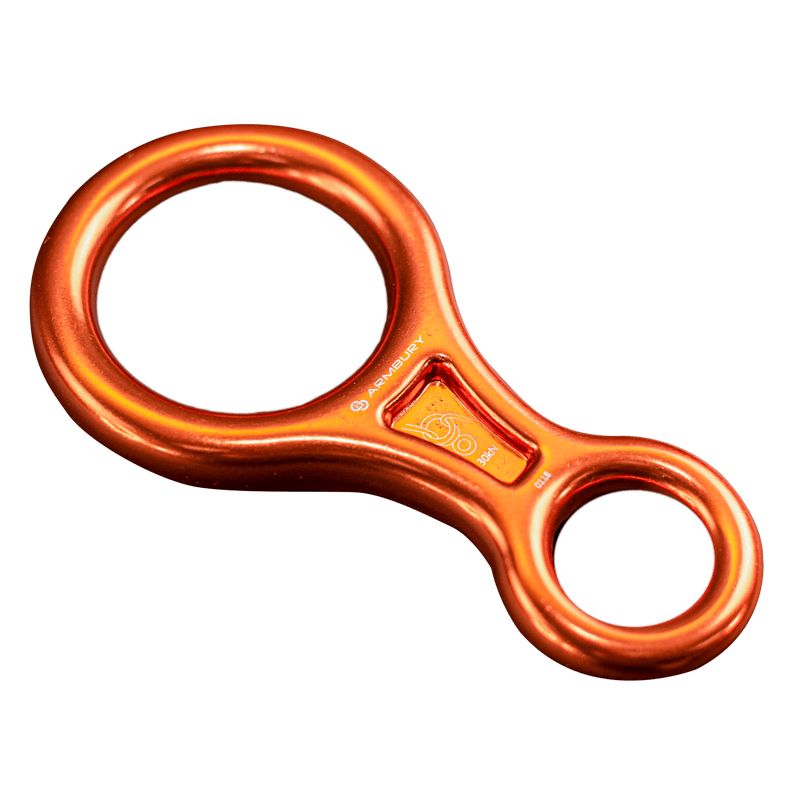

- Orange - reference 4153131 and

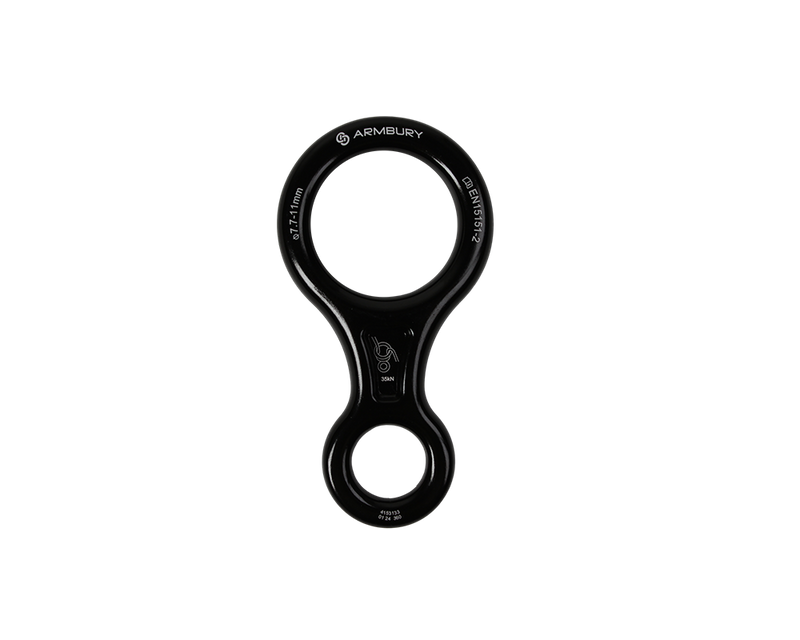

- Black - reference 4153133
-
Rope diameter range: 7.7–11 mm; this is a compatibility specification, not a device size variant.
Technical Specifications
- Brand: ARMBURY
- Model: Figure 8
- Device type: Belay / rappel device
- Material: Hot-forged aluminium alloy
- Weight: 132 g
- Rope size: 7.7–11 mm
- Rope configurations: Single, half and twin ropes, as permitted by the manufacturer
- Minimum breaking load: 35 kN
- Manufacturer-listed standard: EN 15151-2
Certification & Safety
This belay is certified by the EN 15151-2. Follow the manufacturer's instructions for compatible ropes and connectors, correct installation, operation and inspection. Rope diameter alone does not establish system compatibility.
The 35 kN minimum breaking load is not a working load limit. Use requires appropriate training and correct rope handling. Inspect before each use and follow the manufacturer's care and retirement requirements.
About ARMBURY
ARMBURY develops equipment for professionals working at height — including rope access technicians, industrial maintenance crews, arborists, and rescue teams. Every product is built to perform consistently in real-world conditions where reliability and safety are non-negotiable.
