Capella
WIN-PES
Capella WIN-PES features rope with a 12-strand polyolefin core and a braided polyester jacket. Review the WIN-PES core and jacket construction for a winch-rope specification.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

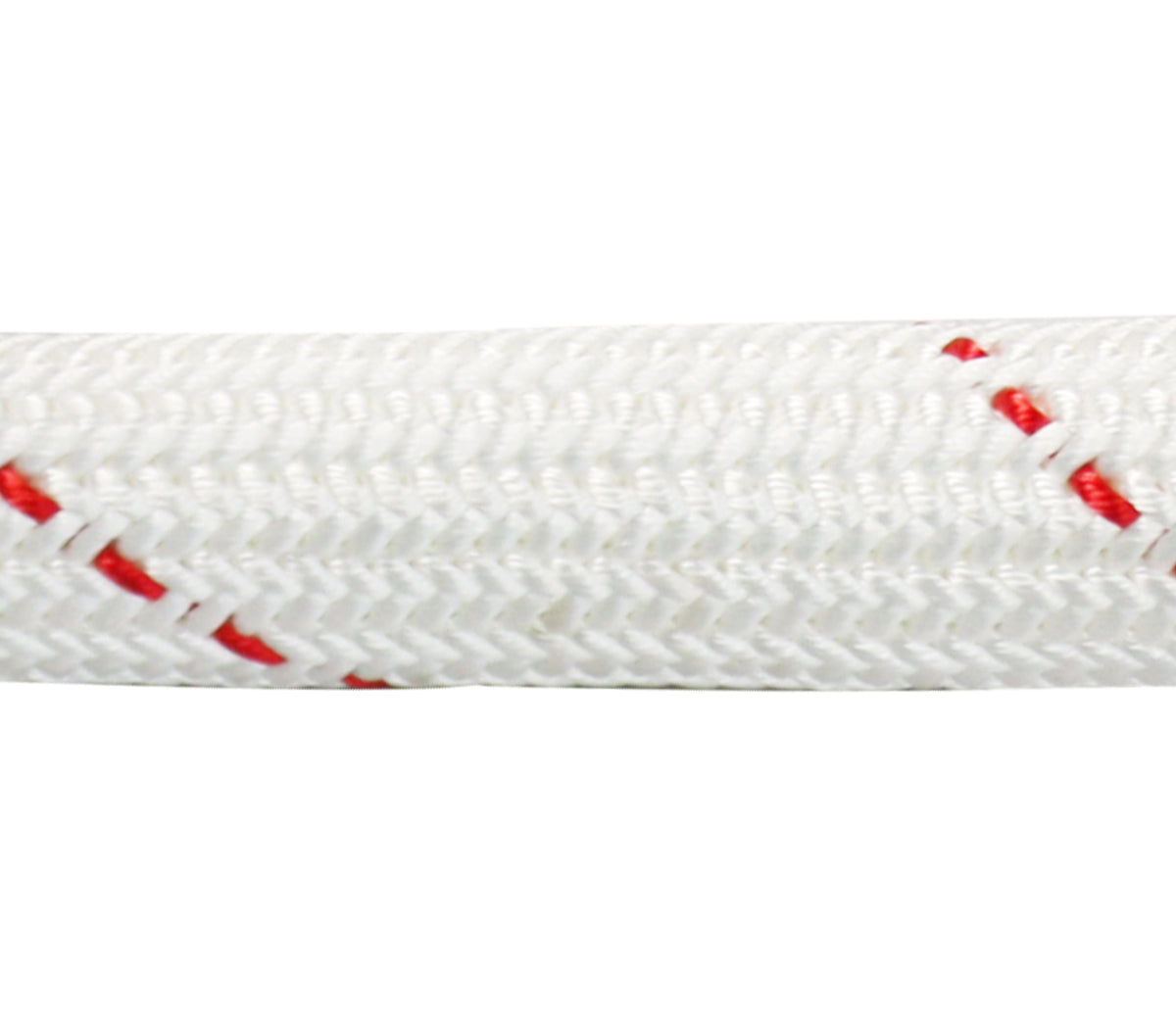

Jacketed winch rope
Capella WIN-PES features rope with a 12-strand polyolefin core and a braided polyester jacket. Review the WIN-PES core and jacket construction for a winch-rope specification.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Engineered for unparalleled strength, WIN-PES™ is constructed with a 12-strand
Polyolefin core covered by 32-strand braided HT Polyester,the protective jacket
offers very good abrasion resistance and gripping properties while the load bearing
core ensures the maximum strength.
Construction, Features and Applications
High Tenacity Polyolefin & Polyester
Structure: Polyolefin 12-strand Load-bearing Core & Polyester Braided Jacket
Features:
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Applications:
Mooring Lines
Winch Lines
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6109125 | 48 | 2 | 6 | 136.1 | 91.4 | 46.7 | 458 | 42.0 | 412 |
| 6109126 | 52 | 2-1/8 | 6-1/2 | 157.5 | 105.7 | 56.5 | 554 | 50.9 | 498 |
| 6109127 | 56 | 2-1/4 | 7 | 186.4 | 125.1 | 65.7 | 644 | 59.1 | 579 |
| 6109128 | 60 | 2-1/2 | 7-1/2 | 209.5 | 140.7 | 76.6 | 751 | 68.9 | 676 |
| 6109130 | 64 | 2-5/8 | 8 | 236.4 | 158.7 | 89.1 | 873 | 80.2 | 786 |
| 6109131 | 68 | 2-3/4 | 8-1/2 | 265.8 | 178.4 | 97.1 | 952 | 87.4 | 856 |
| 6109133 | 72 | 3 | 9 | 298.1 | 200.1 | 108.8 | 1066 | 97.9 | 960 |
| 6109134 | 76 | 3-1/8 | 9-1/2 | 332.5 | 223.2 | 121.7 | 1193 | 109.5 | 1073 |
| 6109136 | 80 | 3-1/4 | 10 | 374.7 | 251.6 | 134.4 | 1317 | 121.0 | 1185 |
| 6109137 | 84 | 3-1/2 | 10-1/2 | 414.3 | 278.1 | 145.8 | 1429 | 131.2 | 1286 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
