Capella
VP-SHIELD

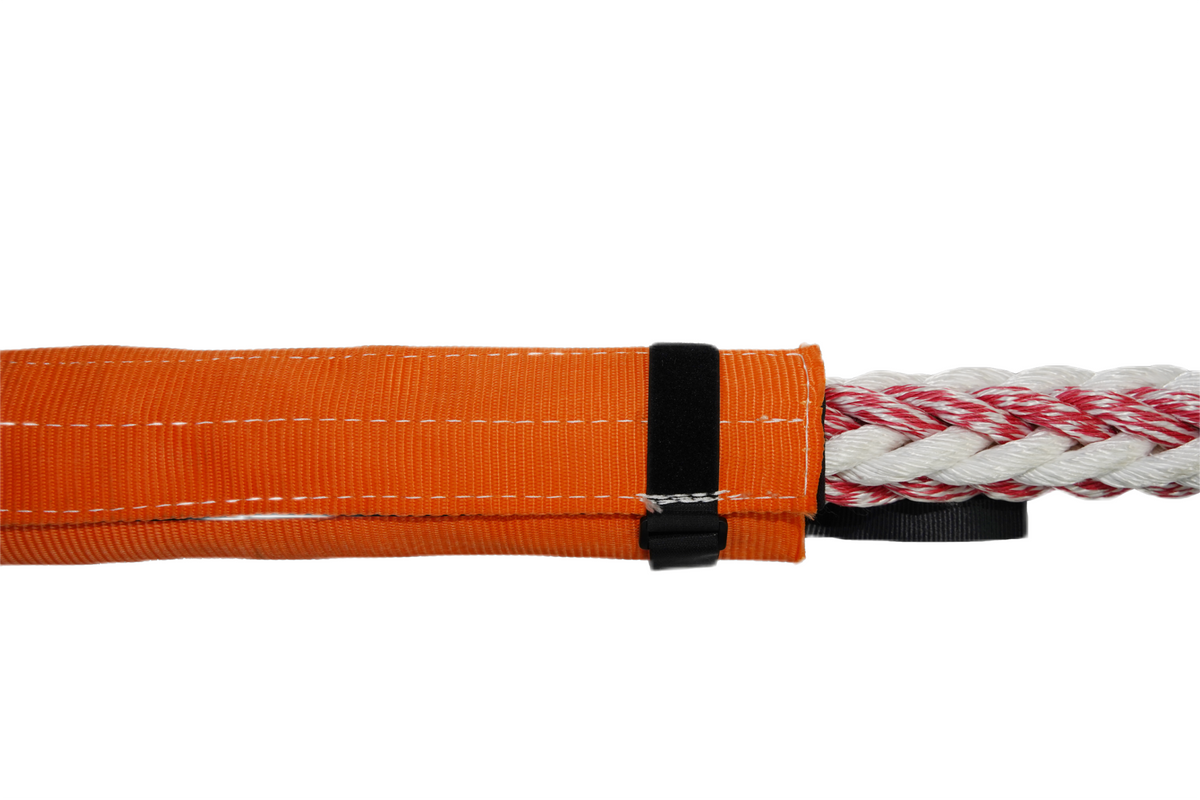

Capella VP-SHIELD features polyester chafe protector with a hook-and-loop closure. Review the protective sleeve dimensions for your rope arrangement.
- Product family
- Marine Chafe Protector
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Polyester chafe protector
Capella VP-SHIELD features polyester chafe protector with a hook-and-loop closure. Review the protective sleeve dimensions for your rope arrangement.
Request a quote with the rope diameter, required cover length and quantity. This is a non-stocked item; fit, price and lead time require confirmation.
Overview
Chafe protector protects your ropes from abrasion and wear is essential to maintaining their integrity and ensuring safe mooring and towing operations. We offer a range of chafe protection solutions specifically designed to safeguard your ropes and slings extend their service life in demanding environments.
Construction, Features and Applications
Features:
Made of High Tenacity Polyester with Velcro
Comes in length of 3 meters
Orange color for higher visibility
Will not split or crack when bunched or compressed Improves lifespan of the rope
Technical Specifications
| Code | Width | Rope Dia | Code | Width | Rope Dia |
| 6414122 | 200 mm | under 40 mm | 6414136 | 400 mm | 78 - 80 mm |
| 6414126 | 250 mm | 40 - 50 mm | 6414139 | 450 mm | 80 - 90 mm |
| 6414128 | 300 mm | 50 - 60 mm | 6414141 | 500 mm | 90 - 100 mm |
| 6414132 | 350 mm | 60 - 70 mm | 6414145 | 550 mm | 100 - 110 mm |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
