Capella
TOUGH-PP 3
Capella TOUGH-PP 3 features 3-strand polypropylene rope. Confirm the intended fiber grade because the source overview and construction block use different grade descriptions.
- Product family
- Commercial Fishing Rope
- Industry
- Commercial Fishing
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

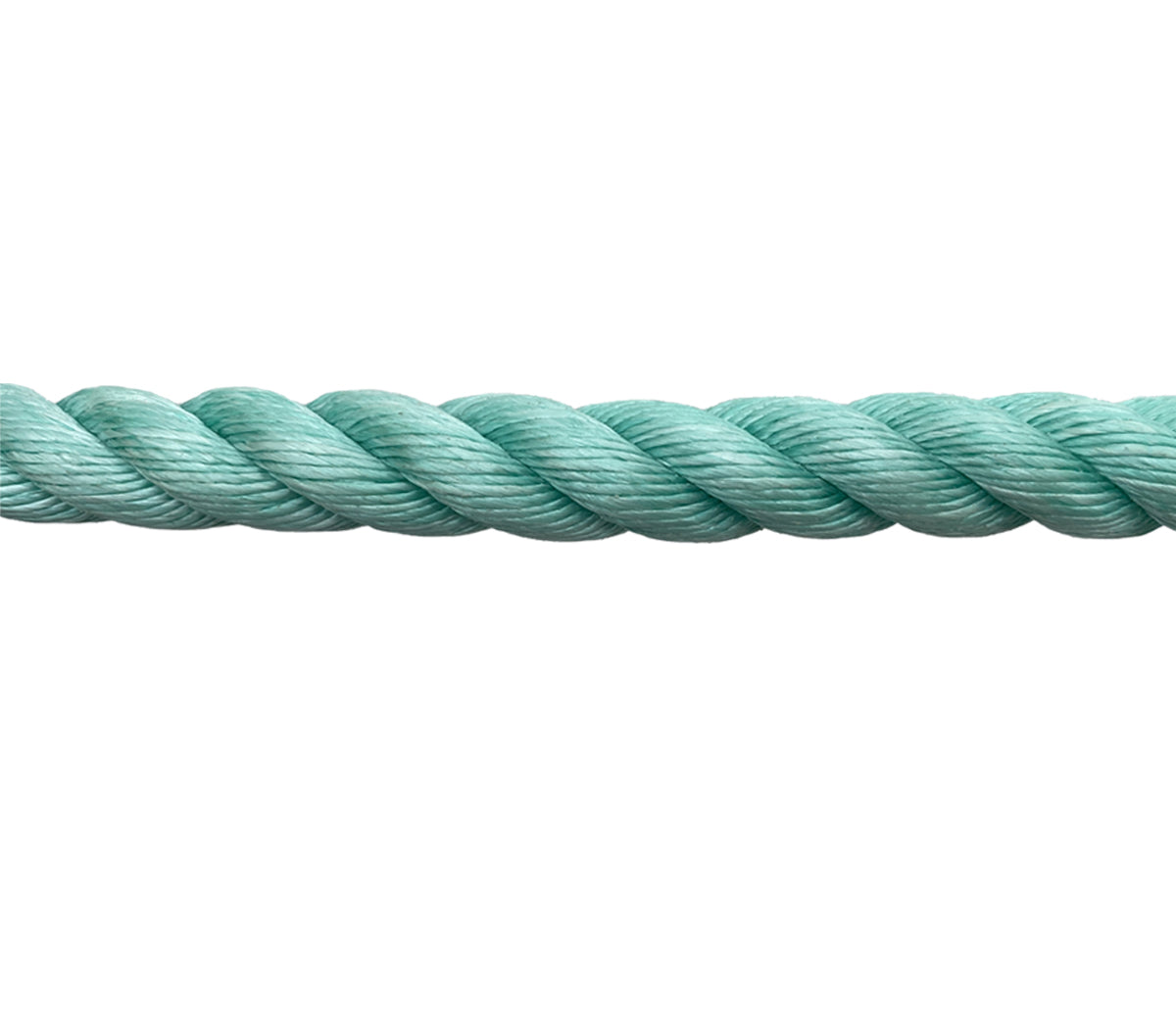

3-strand polypropylene rope
Capella TOUGH-PP 3 features 3-strand polypropylene rope. Confirm the intended fiber grade because the source overview and construction block use different grade descriptions.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Made by normal polypropylene fiber, makes this mooring line with light weight, very easy to handle and keep same strength in wet or dry environment. Floats and good UV resistance.
Construction, Features and Applications
High Tenacity Polypropylene
Construction: 3-strand
Features:
Specific Gravity:0.91-0.93g/cm³
Melting Point:165℃
Breaking Elongation:12%-20%
Abrasion Resistance:Normal
Chemical Resistance:Very Good
UV Resistance:Normal
Water Absorption:0%
Wet-dry Strength Ratio:100%
Applications:
Folating Tow Line
Mooring Line
Tie-up Line
Fishing Line
Mooring Pick-up Line
Technical Specifications
| Dia. | Circ. | Weight | Unspliced MBL | Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN |
| 12 | 1/2 | 1-1/2 | 7.11 | 4.77 | 2.2 | 22 | 1.9 | 19 |
| 14 | 9/16 | 1-3/4 | 9.14 | 6.14 | 2.7 | 26 | 2.4 | 24 |
| 16 | 5/8 | 2 | 11.2 | 7.52 | 3.3 | 32 | 3.0 | 29 |
| 18 | 3/4 | 2-1/4 | 16.1 | 10.81 | 4.5 | 44 | 4.0 | 39 |
| 22 | 7/8 | 2-3/4 | 22 | 14.77 | 6.2 | 61 | 5.6 | 55 |
| 24 | 1 | 3 | 27.8 | 18.66 | 7.4 | 73 | 6.7 | 66 |
| 26 | 1-1/16 | 3-1/4 | 31.5 | 21.15 | 8.4 | 82 | 7.6 | 74 |
| 28 | 1-1/8 | 3-1/2 | 35.3 | 23.70 | 9.4 | 92 | 8.4 | 82 |
| 30 | 1-1/4 | 3-3/4 | 42.7 | 28.67 | 11.2 | 110 | 10.1 | 99 |
| 32 | 1-5/16 | 4 | 47 | 31.55 | 12.3 | 121 | 11.1 | 109 |
| 36 | 1-1/2 | 4-1/2 | 61 | 40.95 | 15.9 | 156 | 14.4 | 141 |
| 40 | 1-5/8 | 5 | 71.1 | 47.73 | 18.7 | 183 | 16.8 | 165 |
| 44 | 1-3/4 | 5-1/2 | 82 | 55.05 | 21.5 | 211 | 19.4 | 190 |
| 48 | 2 | 6 | 106.9 | 71.77 | 27.3 | 268 | 24.6 | 241 |
| 52 | 2-1/8 | 6-1/2 | 120.7 | 81.03 | 30.7 | 301 | 27.7 | 271 |
| 56 | 2-1/4 | 7 | 136.2 | 91.44 | 34.7 | 340 | 31.2 | 306 |
| 60 | 2-1/2 | 7-1/2 | 165.2 | 110.91 | 41.9 | 411 | 37.8 | 370 |
| 64 | 2-5/8 | 8 | 186 | 124.87 | 47.1 | 462 | 42.4 | 416 |
| 68 | 2-3/4 | 8-1/2 | 218.8 | 146.89 | 55.3 | 542 | 49.8 | 488 |
| 72 | 3 | 9 | 236.6 | 158.85 | 60.1 | 589 | 54.1 | 530 |
| 80 | 3-1/4 | 10 | 287.2 | 192.82 | 70.9 | 695 | 63.9 | 626 |
| 88 | 3-7/16 | 11 | 385 | 258.48 | 90.4 | 886 | 81.3 | 797 |
| 96 | 3-3/4 | 460 | 308.83 | 97.1 | 952 | 87.4 | 857 | |
| 100 | 4 | 12 | 500 | 335.68 | 106.9 | 1048 | 96.2 | 943 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation for the requested configuration before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show supplier branding. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for your required diameter, length or spool weight, color, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
