Capella
TOUGH - PP 12
Capella TOUGH - PP 12 features 12-strand polypropylene marine rope. Compare the TOUGH - PP 12 construction and manufacturer specifications.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

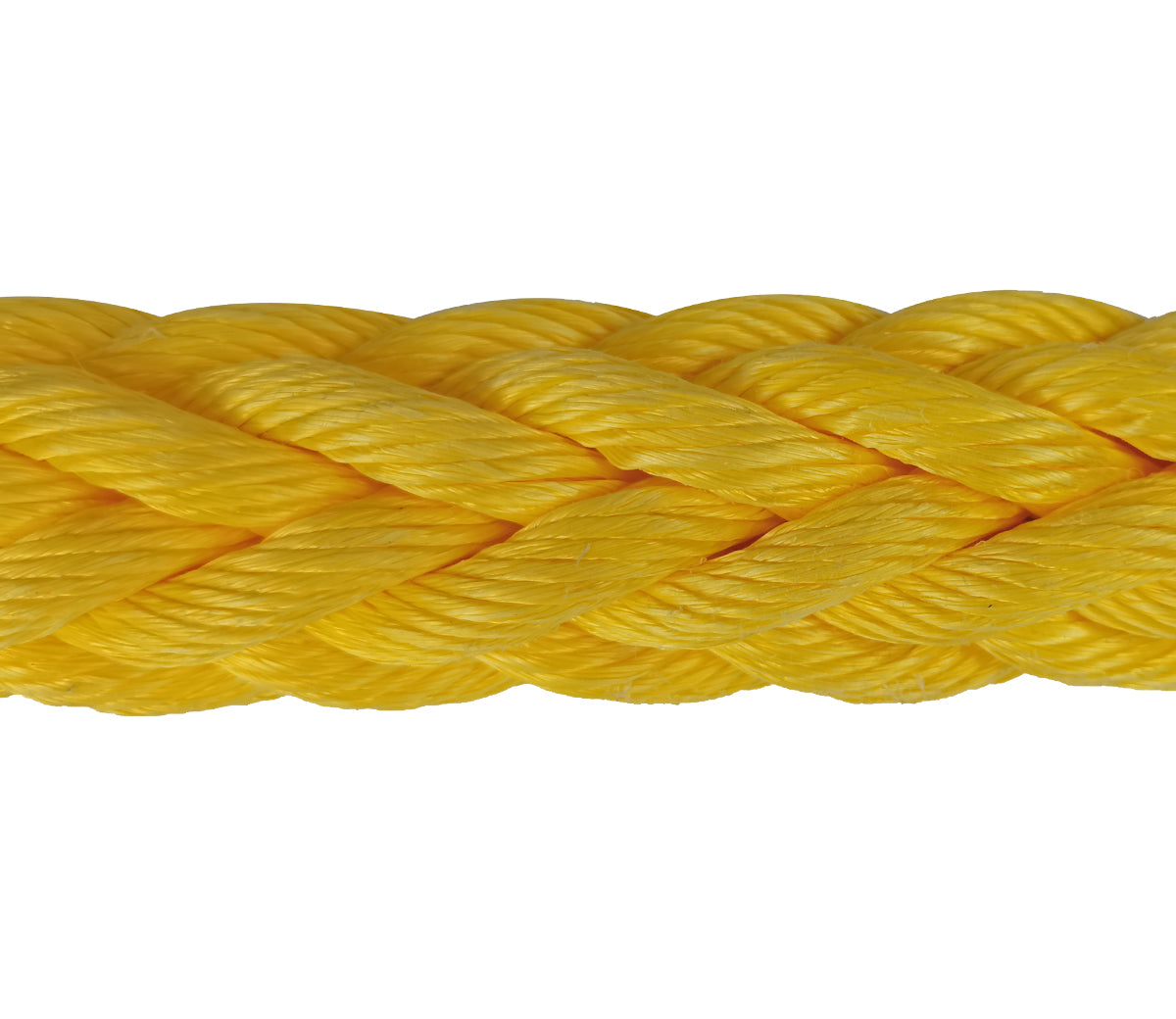

12-strand polypropylene marine rope
Capella TOUGH - PP 12 features 12-strand polypropylene marine rope. Compare the TOUGH - PP 12 construction and manufacturer specifications.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Made by normal polypropylene fiber, very easy to handle and keep same strength in wet or dry environment. Floats and good UV resistance.
Construction, Features and Applications
POLYPROPYLENE
12-STRAND
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Floating Tow Lines
Mooring Lines
Tie-up Lines
Anchor Lines
Fishing Lines
Pick-up Lines
Technical Specifications
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 26.1 | 17.5 | 6106514 | 9.0 | 88 | 8.2 | 80 | 6106614 | 9.3 | 92 | 8.4 | 82 |
| 26 | 1-1/16 | 3-1/4 | 30.6 | 20.5 | 6106515 | 10.5 | 103 | 9.5 | 93 | 6106615 | 10.9 | 107 | 9.8 | 96 |
| 28 | 1-1/8 | 3-1/2 | 35.5 | 23.8 | 6106516 | 12.0 | 118 | 10.8 | 106 | 6106616 | 12.5 | 123 | 11.3 | 110 |
| 30 | 1-1/4 | 3-3/4 | 40.8 | 27.4 | 6106517 | 13.7 | 134 | 12.3 | 121 | 6106617 | 14.2 | 139 | 12.8 | 125 |
| 32 | 1-5/16 | 4 | 46.4 | 31.2 | 6106518 | 15.5 | 152 | 14.0 | 137 | 6106618 | 16.1 | 158 | 14.5 | 142 |
| 36 | 1-1/2 | 4-1/2 | 58.7 | 39.4 | 6106520 | 19.4 | 190 | 17.6 | 172 | 6106620 | 20.2 | 198 | 18.1 | 178 |
| 40 | 1-5/8 | 5 | 72.5 | 48.7 | 6106522 | 23.8 | 233 | 21.4 | 210 | 6106622 | 24.7 | 242 | 22.3 | 218 |
| 44 | 1-3/4 | 5-1/2 | 87.7 | 58.9 | 6106523 | 28.4 | 278 | 25.5 | 250 | 6106623 | 29.5 | 289 | 26.6 | 260 |
| 48 | 2 | 6 | 104.0 | 69.8 | 6106525 | 33.4 | 327 | 30.1 | 295 | 6106625 | 34.7 | 340 | 31.2 | 306 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 81.9 | 6106526 | 38.9 | 381 | 35.0 | 343 | 6106626 | 40.4 | 396 | 36.4 | 357 |
| 56 | 2-1/4 | 7 | 142.0 | 95.3 | 6106527 | 44.6 | 437 | 40.2 | 394 | 6106627 | 46.4 | 454 | 41.7 | 409 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 109.4 | 6106528 | 50.6 | 496 | 45.5 | 446 | 6106628 | 52.6 | 516 | 47.4 | 464 |
| 64 | 2-5/8 | 8 | 186.0 | 124.9 | 6106530 | 56.9 | 558 | 51.2 | 502 | 6106630 | 59.2 | 580 | 53.3 | 522 |
| 68 | 3-3/4 | 8-1/2 | 210.0 | 141.0 | 6106531 | 63.9 | 626 | 57.6 | 564 | 6106631 | 66.4 | 651 | 59.8 | 586 |
| 72 | 3 | 9 | 235.0 | 157.8 | 6106533 | 71.1 | 697 | 64.0 | 627 | 6106633 | 74.0 | 725 | 66.6 | 652 |
| 80 | 3-1/4 | 10 | 290.0 | 194.7 | 6106536 | 86.3 | 846 | 77.8 | 762 | 6106636 | 89.8 | 880 | 80.8 | 792 |
| 88 | 3-5/8 | 11 | 351.0 | 235.6 | 6106538 | 103.3 | 1012 | 92.9 | 910 | 6106638 | 107.4 | 1052 | 96.7 | 947 |
| 96 | 4 | 12 | 417.0 | 280.0 | 6106540 | 121.4 | 1190 | 109.3 | 1071 | 6106640 | 126.3 | 1238 | 113.7 | 1114 |
| 104 | 4-1/4 | 13 | 490.0 | 329.0 | 6106542 | 140.5 | 1377 | 126.6 | 1241 | 6106642 | 146.1 | 1432 | 131.5 | 1289 |
| 112 | 4-5/8 | 14 | 568.0 | 381.3 | 6106545 | 163.1 | 1598 | 146.6 | 1437 | 6106645 | 169.6 | 1662 | 152.6 | 1496 |
| 120 | 5 | 15 | 652.0 | 437.7 | 6106548 | 184.8 | 1811 | 166.5 | 1632 | 6106648 | 192.2 | 1883 | 173.0 | 1695 |
| 128 | 5-1/4 | 16 | 742.0 | 498.2 | 6106549 | 209.9 | 2057 | 189.1 | 1853 | 6106649 | 218.3 | 2139 | 196.5 | 1925 |
| 136 | 5-5/8 | 17 | 838.0 | 562.6 | 6106551 | 235.9 | 2312 | 212.6 | 2083 | 6106651 | 245.4 | 2404 | 220.8 | 2164 |
| 144 | 6 | 18 | 939.0 | 630.4 | 6106552 | 263.7 | 2584 | 237.7 | 2329 | 6106652 | 274.2 | 2687 | 246.8 | 2419 |
| 152 | 6-1/4 | 19 | 1050.0 | 704.9 | 6106554 | 293.2 | 2873 | 263.7 | 2584 | 6106654 | 304.9 | 2988 | 274.4 | 2689 |
| 160 | 6-5/8 | 20 | 1160.0 | 778.0 | 6106555 | 324.4 | 3179 | 292.3 | 2865 | 6106655 | 337.4 | 3306 | 303.6 | 2976 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
