Capella
TOUGH-POLYETHELENE

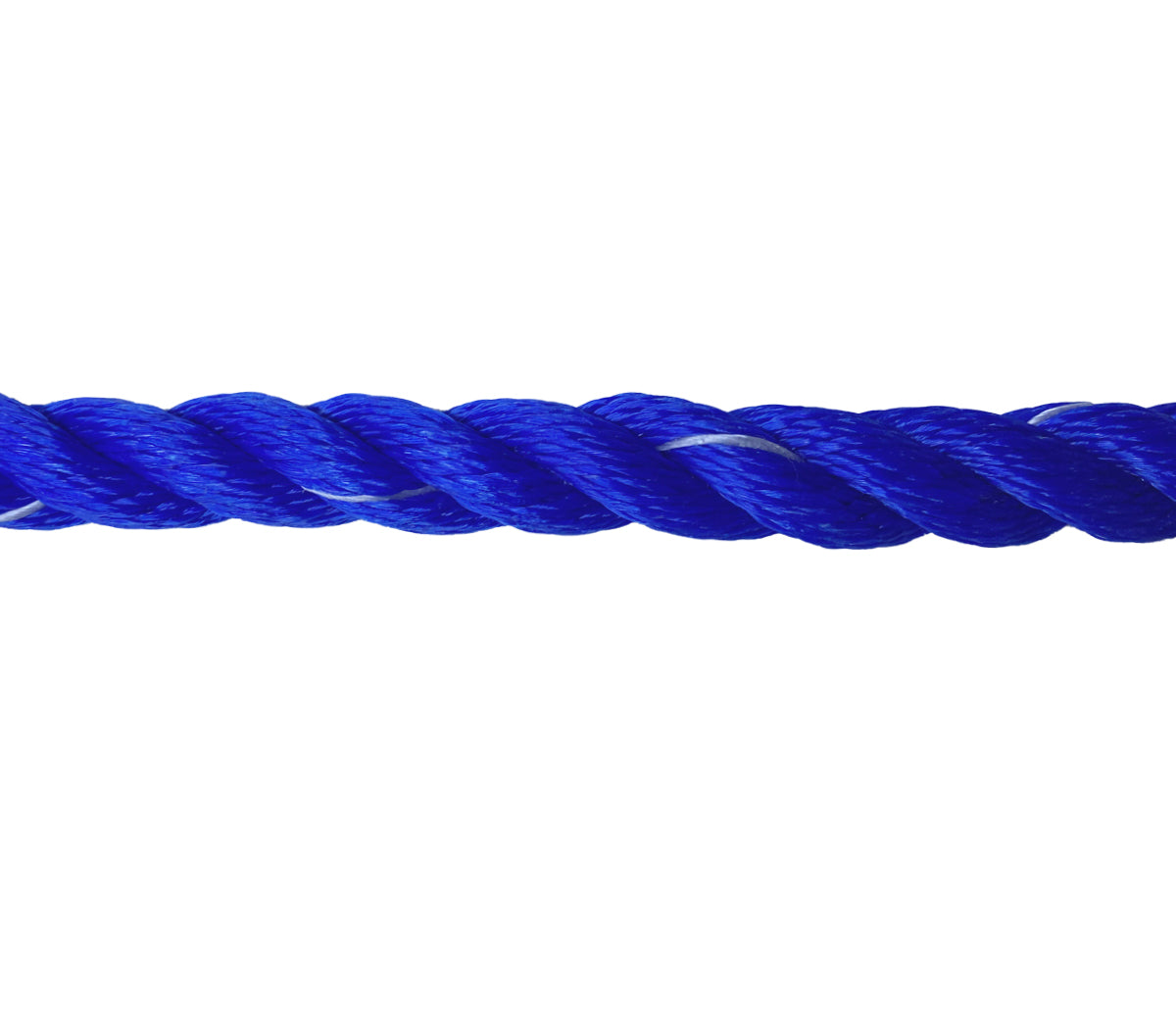

Capella TOUGH-POLYETHELENE features 3-strand polyethylene rope listed for commercial fishing and marine applications. The source model spelling is retained while the material is described as polyethylene.
- Product family
- Commercial Fishing Rope
- Industry
- Commercial Fishing
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Polyethylene fishing rope
Capella TOUGH-POLYETHELENE features 3-strand polyethylene rope listed for commercial fishing and marine applications. The source model spelling is retained while the material is described as polyethylene.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This rope floats and does not absorb water, which makes it soft on hand, easy to handle and flexible. The special nature of filaments highly contributes to an increased abrasion resistance, thus improving its lifetime and security. Mainly used on fishing vessels and inland shipping.
Construction, Features and Applications
High Tenacity Polyethelene
Construction: 3 strand
Features:
Specific Gravity:0.94-0.97g/cm³
Melting Point: 132～135℃
Abrasion Resistance:Good
Chemical Resistance:Very Good
UV Resistance:Good
Water Absorption：0%
Wet-dry Strength Ratio:Dry=Wet
Applications:
Mooring Line
Fishing Line
Towing Line
Aquaculture
Winch Line
Messenger Line
Pick-up Line
Technical Specifications
| Dia. | Circ. | Weight | Unspliced MBL | Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN |
| 12 | 1/2 | 1-1/2 | 7.1 | 4.8 | 2.3 | 23 | 2 | 20 |
| 14 | 9/16 | 1-3/4 | 9.1 | 6.1 | 2.9 | 28 | 2.6 | 25 |
| 16 | 5/8 | 2 | 11.2 | 7.5 | 3.4 | 33 | 3.1 | 30 |
| 18 | 3/4 | 2-1/4 | 16.1 | 10.8 | 4.7 | 46 | 4.2 | 41 |
| 22 | 7/8 | 2-3/4 | 22.0 | 14.8 | 6.5 | 64 | 5.9 | 58 |
| 24 | 1 | 3 | 27.8 | 18.6 | 7.9 | 77 | 7 | 69 |
| 26 | 1-1/16 | 3-1/4 | 31.5 | 21.1 | 8.8 | 86 | 8 | 78 |
| 28 | 1-1/8 | 3-1/2 | 35.3 | 23.7 | 9.8 | 96 | 8.8 | 86 |
| 30 | 1-1/4 | 3-3/4 | 42.7 | 28.6 | 11.8 | 116 | 10.6 | 104 |
| 32 | 1-5/16 | 4 | 47.0 | 31.5 | 13 | 127 | 11.6 | 114 |
| 36 | 1-1/2 | 4-1/2 | 61.0 | 40.9 | 16.7 | 164 | 15.1 | 148 |
| 40 | 1-5/8 | 5 | 71.1 | 47.7 | 19.6 | 192 | 17.7 | 173 |
| 44 | 1-3/4 | 5-1/2 | 82.0 | 55.0 | 22.7 | 222 | 20.4 | 200 |
| 48 | 2 | 6 | 106.9 | 71.7 | 28.7 | 281 | 25.8 | 253 |
| 52 | 2-1/8 | 6-1/2 | 120.7 | 81.0 | 32.2 | 316 | 29 | 284 |
| 56 | 2-1/4 | 7 | 136.2 | 91.4 | 36.4 | 357 | 32.8 | 321 |
| 60 | 2-1/2 | 7-1/2 | 165.2 | 110.8 | 44.1 | 432 | 39.7 | 389 |
| 64 | 2-5/8 | 8 | 186.0 | 124.8 | 49.5 | 485 | 44.6 | 437 |
| 68 | 2-3/4 | 8-1/2 | 218.8 | 146.8 | 58.1 | 569 | 52.2 | 512 |
| 72 | 3 | 9 | 236.6 | 158.7 | 63.1 | 618 | 56.7 | 556 |
| 80 | 3-1/4 | 10 | 287.2 | 192.6 | 74.5 | 730 | 67 | 657 |
| 88 | 3-5/8 | 11 | 385.0 | 258.2 | 94.9 | 930 | 85.4 | 837 |
| 96 | 4 | 12 | 460.0 | 308.5 | 102 | 1000 | 91.8 | 900 |
| 100 | 4-1/8 | 12-1/2 | 500.0 | 335.4 | 112.2 | 1100 | 101 | 990 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation for the requested configuration before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show supplier branding. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for your required diameter, length or spool weight, color, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
