Capella
TOUGH-MIX PRO REDUCED RECOIL RISK ROPE

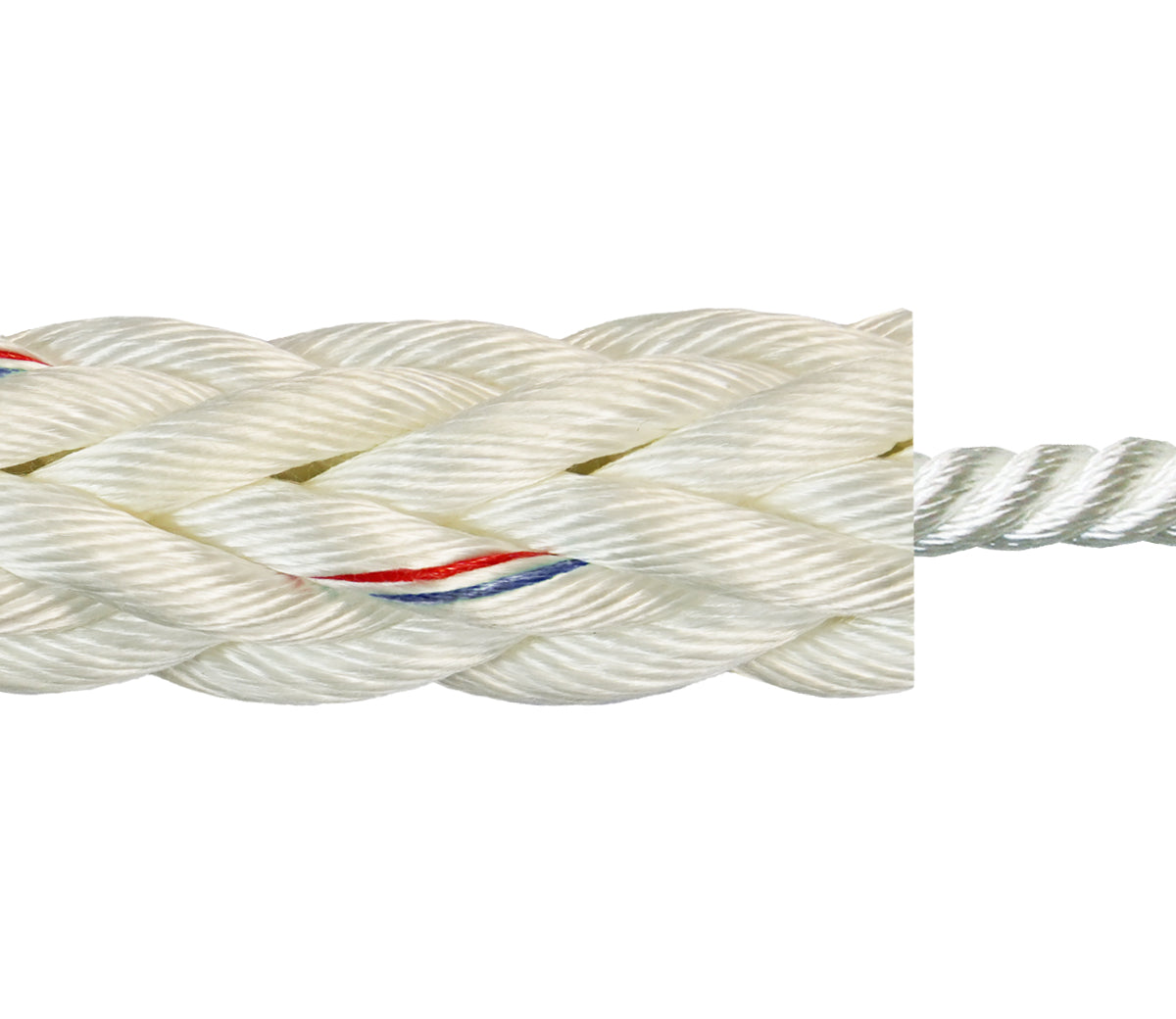

Capella TOUGH-MIX PRO REDUCED RECOIL RISK ROPE features 12-strand marine rope made from a polyolefin and polyester blend. Review the source's reduced-recoil model designation; application and safety claims require confirmation.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Marine mooring rope
Capella TOUGH-MIX PRO REDUCED RECOIL RISK ROPE features 12-strand marine rope made from a polyolefin and polyester blend. Review the source's reduced-recoil model designation; application and safety claims require confirmation.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
The Anti Snap Back design is a revolutionary and safe solution for mooring applications, the 12 strand construction rope is easy for handling during operation. This design reduces dangerous snap backs technically and increases the safety of the crew.
Construction, Features and Applications
High Tenacity Polyolefin & Polyester Mixed
Structure: 12-strand
Applications:
Mooring Lines
Anti Snap Back
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6103522 | 40 | 1-5/8 | 5 | 90.5 | 60.8 | 36.5 | 357 | 32.8 | 321 |
| 6103523 | 44 | 1-3/4 | 5-1/2 | 109.5 | 73.5 | 43.7 | 428 | 39.3 | 385 |
| 6103525 | 48 | 2 | 6 | 129.4 | 86.9 | 51.6 | 506 | 46.6 | 456 |
| 6103526 | 52 | 2-1/8 | 6-1/2 | 153.9 | 103.3 | 60.1 | 589 | 54.2 | 531 |
| 6103527 | 56 | 2-1/4 | 7 | 177.2 | 119.0 | 69.4 | 680 | 62.4 | 612 |
| 6103528 | 60 | 2-1/2 | 7-1/2 | 204.1 | 137.0 | 79.1 | 776 | 71.3 | 698 |
| 6103530 | 64 | 2-5/8 | 8 | 232.0 | 155.8 | 89.5 | 878 | 80.6 | 790 |
| 6103531 | 68 | 2-3/4 | 8-1/2 | 262.4 | 176.2 | 100.3 | 983 | 90.3 | 885 |
| 6103533 | 72 | 3 | 9 | 293.8 | 197.2 | 111.9 | 1097 | 100.8 | 988 |
| 6103536 | 80 | 3-1/4 | 10 | 362.6 | 243.4 | 136.6 | 1339 | 123.0 | 1205 |
| 6103538 | 88 | 3-5/8 | 11 | 437.3 | 293.6 | 164.6 | 1613 | 147.6 | 1446 |
| 6103540 | 96 | 4 | 12 | 521.2 | 349.9 | 194.4 | 1906 | 174.6 | 1711 |
| 6103542 | 104 | 4-1/4 | 13 | 613.3 | 411.7 | 225.7 | 2211 | 203.0 | 1989 |
| 6103545 | 112 | 4-5/8 | 14 | 705.4 | 473.6 | 261.1 | 2559 | 235.5 | 2308 |
| 6103548 | 120 | 5 | 15 | 813.9 | 546.4 | 298.0 | 2920 | 268.2 | 2629 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4).
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
