Capella
TOUGH-MIX PRO 24
Capella TOUGH-MIX PRO 24 features 24-strand marine rope made from a polyolefin and polyester blend. Review model-specific data for mooring and towing requirements.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

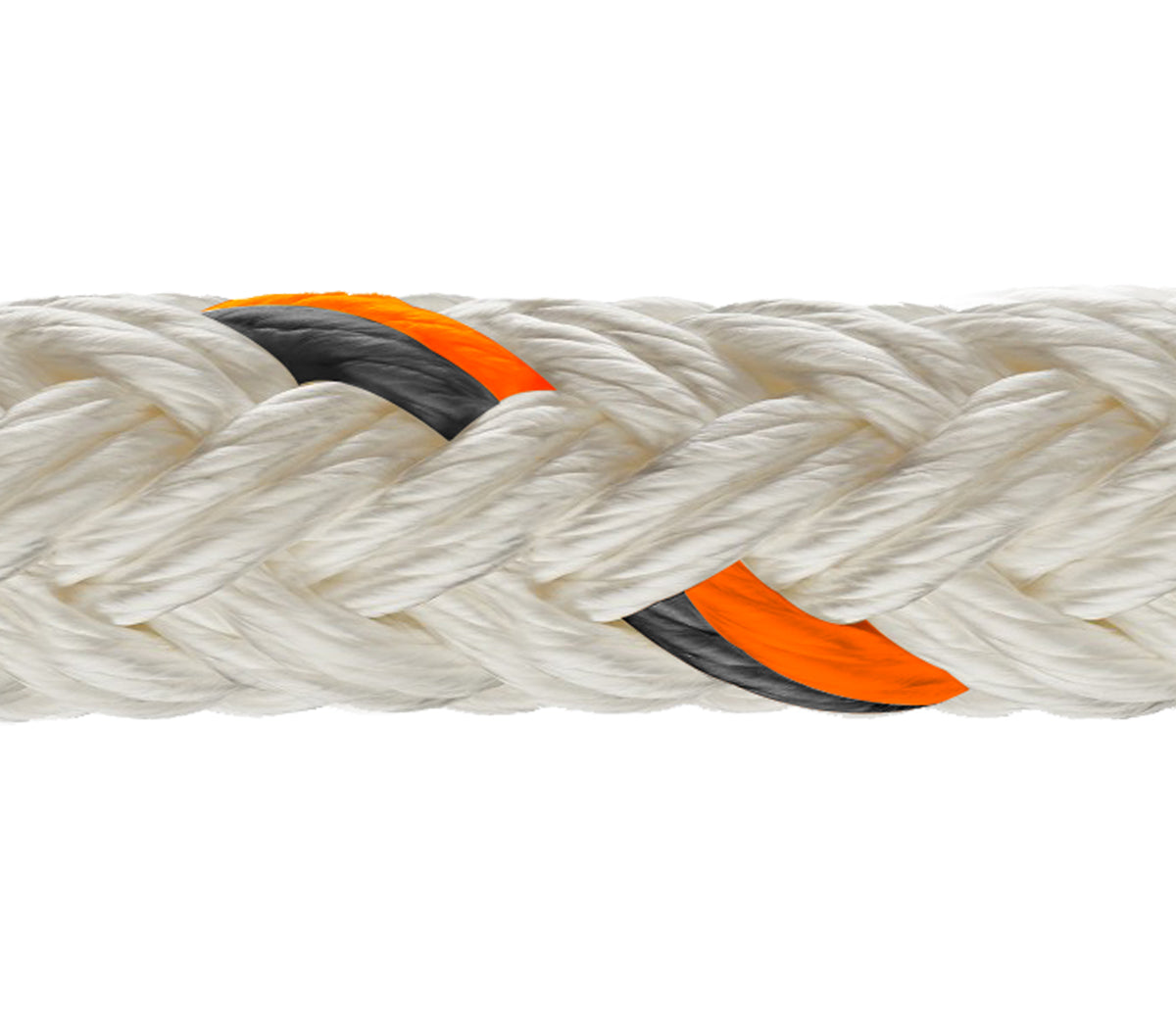

24-strand mixed-fiber mooring rope
Capella TOUGH-MIX PRO 24 features 24-strand marine rope made from a polyolefin and polyester blend. Review model-specific data for mooring and towing requirements.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
A 24 strands rope typically refers to a rope that is braided using 12 strands, with each strand potentially being a double braid. The 24 construction rope, with its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications.With its additional strand layers, provides greater flexibility, making it easier to handle and more adaptable to various applications. With multiple strands, the construction rope distributes loads more evenly, reducing stress on individual strands and enhancing overall rope performance.This construction rope allows for smoother handling, reducing the risk of kinking or twisting during use.
Construction, Features and Applications
High Tenacity Polyolefin & Polyester Mixed
Structure: 24-strand
Applications:
Mooring Lines
Towing Lines
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6109820 | 36 | 1-1/2 | 4-1/2 | 69.2 | 46.5 | 29.8 | 293 | 26.8 | 263 |
| 6109822 | 40 | 1-5/8 | 5 | 85.4 | 57.3 | 36.5 | 357 | 32.8 | 321 |
| 6109823 | 44 | 1-3/4 | 5-1/2 | 103.3 | 69.4 | 43.7 | 428 | 39.3 | 385 |
| 6109825 | 48 | 2 | 6 | 122.1 | 82.0 | 51.6 | 506 | 46.6 | 456 |
| 6109826 | 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 60.1 | 589 | 54.2 | 531 |
| 6109827 | 56 | 2-1/4 | 7 | 167.2 | 112.3 | 69.4 | 680 | 62.4 | 612 |
| 6109828 | 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 79.1 | 776 | 71.3 | 698 |
| 6109830 | 64 | 2-5/8 | 8 | 218.9 | 147.0 | 89.5 | 878 | 80.6 | 790 |
| 6109831 | 68 | 2-3/4 | 8-1/2 | 247.5 | 166.2 | 100.3 | 983 | 90.3 | 885 |
| 6109833 | 72 | 3 | 9 | 277.2 | 186.1 | 111.9 | 1097 | 100.8 | 988 |
| 6109836 | 80 | 3-1/4 | 10 | 342.1 | 229.7 | 136.6 | 1339 | 123.0 | 1205 |
| 6109838 | 88 | 3-5/8 | 11 | 412.5 | 276.9 | 164.6 | 1613 | 147.6 | 1446 |
| 6109840 | 96 | 4 | 12 | 491.7 | 330.1 | 194.4 | 1906 | 174.6 | 1711 |
| 6109842 | 104 | 4-1/4 | 13 | 578.6 | 388.5 | 225.7 | 2211 | 203.0 | 1989 |
| 6109845 | 112 | 4-5/8 | 14 | 665.5 | 446.8 | 261.1 | 2559 | 235.5 | 2308 |
| 6109848 | 120 | 5 | 15 | 767.8 | 515.5 | 298.0 | 2920 | 268.2 | 2629 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4).
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
