Capella
TOUGH - MIX PRO 12

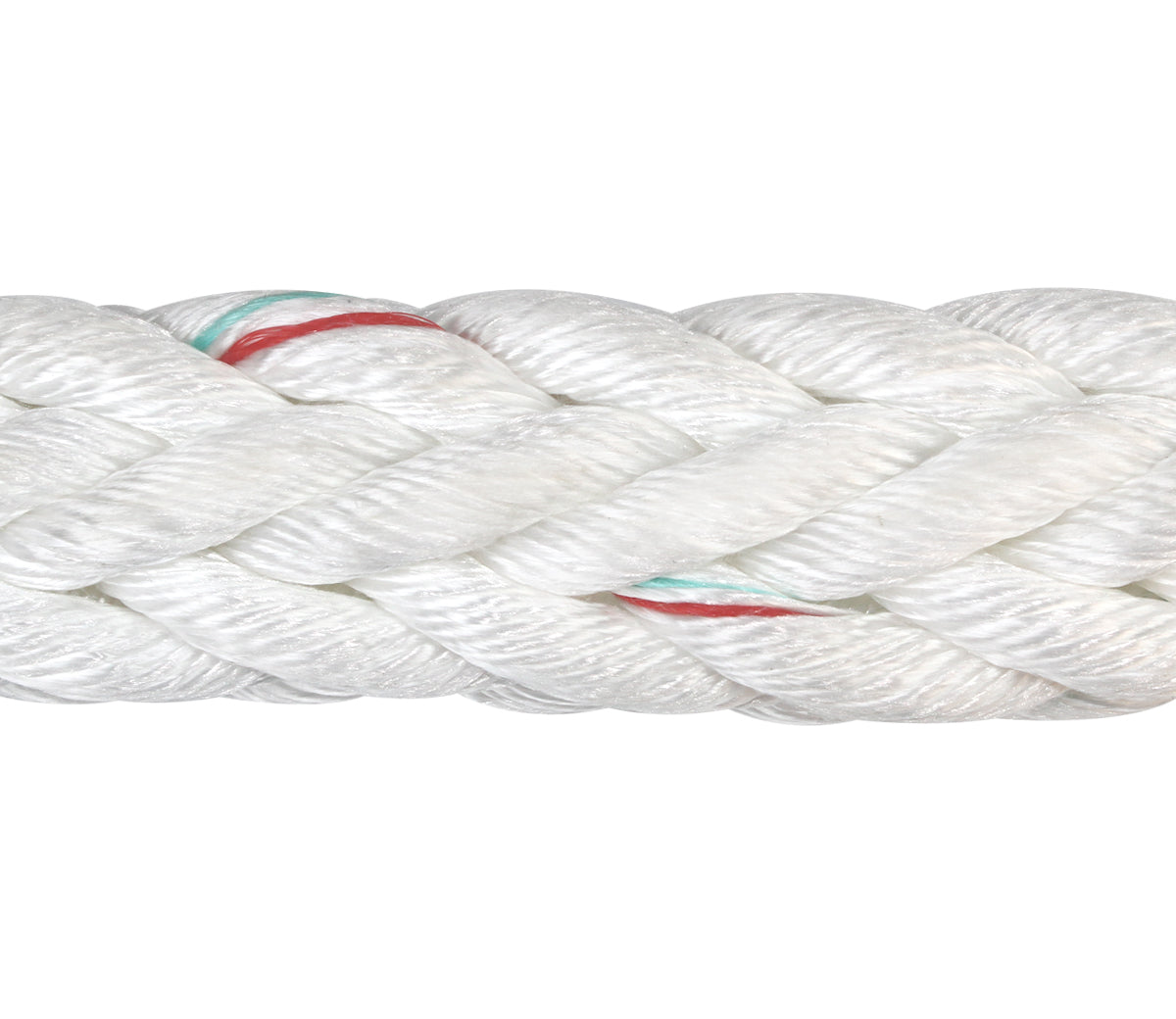

Capella TOUGH - MIX PRO 12 features marine rope made from a polyolefin and polyester blend. Review the MIX PRO 12 model; the source overview also uses a different model designation that requires confirmation.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Polyolefin and polyester marine rope
Capella TOUGH - MIX PRO 12 features marine rope made from a polyolefin and polyester blend. Review the MIX PRO 12 model; the source overview also uses a different model designation that requires confirmation.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
The reinforced composition of high tenacity polyester & polyolefin creates superior breaking strength. The techinically designed construction provides higher tensile strength, more flexibility and better abrasion resistance than normal composite rope. TOUGH-MIX PLUS retains stability, safety and higher residual tensile strength after repeated mooring operations.
Construction, Features and Applications
Features:
Specific Gravity: 0.99
Melting Point: 165/260℃
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring and Tie-up Lines
Mooring Pendants
Tug Assist Lines
Anchor Lines
Towing Lines
Mooring Lines
Technical Specifications
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 30.7 | 20.6 | 6109514 | 13.3 | 130 | 11.9 | 117 | 6109614 | 13.7 | 133.9 | 12.3 | 121 |
| 26 | 1-1/16 | 3-1/4 | 36.1 | 24.2 | 6109515 | 15.6 | 153 | 14.1 | 138 | 6109615 | 16.1 | 157.6 | 14.5 | 142 |
| 28 | 1-1/8 | 3-1/2 | 41.8 | 28.1 | 6109516 | 18.0 | 176 | 16.1 | 158 | 6109616 | 18.5 | 181.3 | 16.6 | 163 |
| 30 | 1-1/4 | 3-3/4 | 48.1 | 32.3 | 6109517 | 20.4 | 200 | 18.4 | 180 | 6109617 | 21.0 | 206.0 | 18.9 | 185 |
| 32 | 1-5/16 | 4 | 54.7 | 36.7 | 6109518 | 23.0 | 225 | 20.7 | 203 | 6109618 | 23.6 | 231.8 | 21.3 | 209 |
| 36 | 1-1/2 | 4-1/2 | 69.2 | 46.5 | 6109520 | 29.0 | 284 | 26.0 | 255 | 6109620 | 29.8 | 292.5 | 26.8 | 263 |
| 40 | 1-5/8 | 5 | 85.4 | 57.3 | 6109522 | 35.4 | 347 | 31.8 | 312 | 6109622 | 36.5 | 357.4 | 32.8 | 321 |
| 44 | 1-3/4 | 5-1/2 | 103.3 | 69.4 | 6109523 | 42.4 | 416 | 38.2 | 374 | 6109623 | 43.7 | 428.5 | 39.3 | 385 |
| 48 | 2 | 6 | 122.1 | 82.0 | 6109525 | 50.1 | 491 | 45.2 | 443 | 6109625 | 51.6 | 505.7 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 6109526 | 58.4 | 572 | 52.7 | 516 | 6109626 | 60.1 | 589.2 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 112.3 | 6109527 | 67.3 | 660 | 60.6 | 594 | 6109627 | 69.4 | 679.8 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 6109528 | 76.8 | 753 | 69.2 | 678 | 6109628 | 79.1 | 775.6 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 147.0 | 6109530 | 86.9 | 852 | 78.3 | 767 | 6109630 | 89.5 | 877.6 | 80.6 | 790 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 166.2 | 6109531 | 97.3 | 954 | 87.7 | 859 | 6109631 | 100.3 | 982.6 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 186.1 | 6109533 | 108.7 | 1065 | 97.9 | 959 | 6109633 | 111.9 | 1097.0 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 229.7 | 6109536 | 132.7 | 1300 | 119.4 | 1170 | 6109636 | 136.6 | 1339.0 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 276.9 | 6109538 | 159.8 | 1566 | 143.3 | 1404 | 6109638 | 164.6 | 1613.0 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 330.1 | 6109540 | 188.8 | 1850 | 169.5 | 1661 | 6109640 | 194.4 | 1905.5 | 174.6 | 1711 |
| 104 | 4-1/4 | 13 | 578.6 | 388.5 | 6109542 | 219.1 | 2147 | 197.0 | 1931 | 6109642 | 225.7 | 2211.4 | 203.0 | 1989 |
| 112 | 4-5/8 | 14 | 665.5 | 446.8 | 6109545 | 253.5 | 2484 | 228.7 | 2241 | 6109645 | 261.1 | 2558.5 | 235.5 | 2308 |
| 120 | 5 | 15 | 767.8 | 515.5 | 6109548 | 289.3 | 2835 | 260.4 | 2552 | 6109648 | 298.0 | 2920.1 | 268.2 | 2629 |
| 128 | 5-1/4 | 16 | 874.5 | 587.1 | 6109549 | 326.5 | 3200 | 293.5 | 2876 | 6109649 | 336.3 | 3296.0 | 302.3 | 2962 |
| 136 | 5-5/8 | 17 | 984.5 | 661.0 | 6109551 | 366.4 | 3591 | 329.3 | 3227 | 6109651 | 377.4 | 3698.7 | 339.2 | 3324 |
| 144 | 6 | 18 | 1111 | 745.9 | 6109552 | 409.2 | 4010 | 367.9 | 3605 | 6109652 | 421.5 | 4130.3 | 378.9 | 3713 |
| 152 | 6-1/4 | 19 | 1243 | 834.5 | 6109554 | 453.3 | 4442 | 407.8 | 3996 | 6109654 | 466.9 | 4575.3 | 420.0 | 4116 |
| 160 | 6-5/8 | 20 | 1375 | 923.1 | 6109555 | 500.1 | 4901 | 450.5 | 4415 | 6109655 | 515.1 | 5048.0 | 464.0 | 4547 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
