Capella
TOUGH MIX 3
Capella TOUGH MIX 3 features 3-strand rope made from a polypropylene and polyester blend. Compare the TOUGH MIX 3 source table for the requested marine or fishing configuration.
- Product family
- Commercial Fishing Rope
- Industry
- Commercial Fishing
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

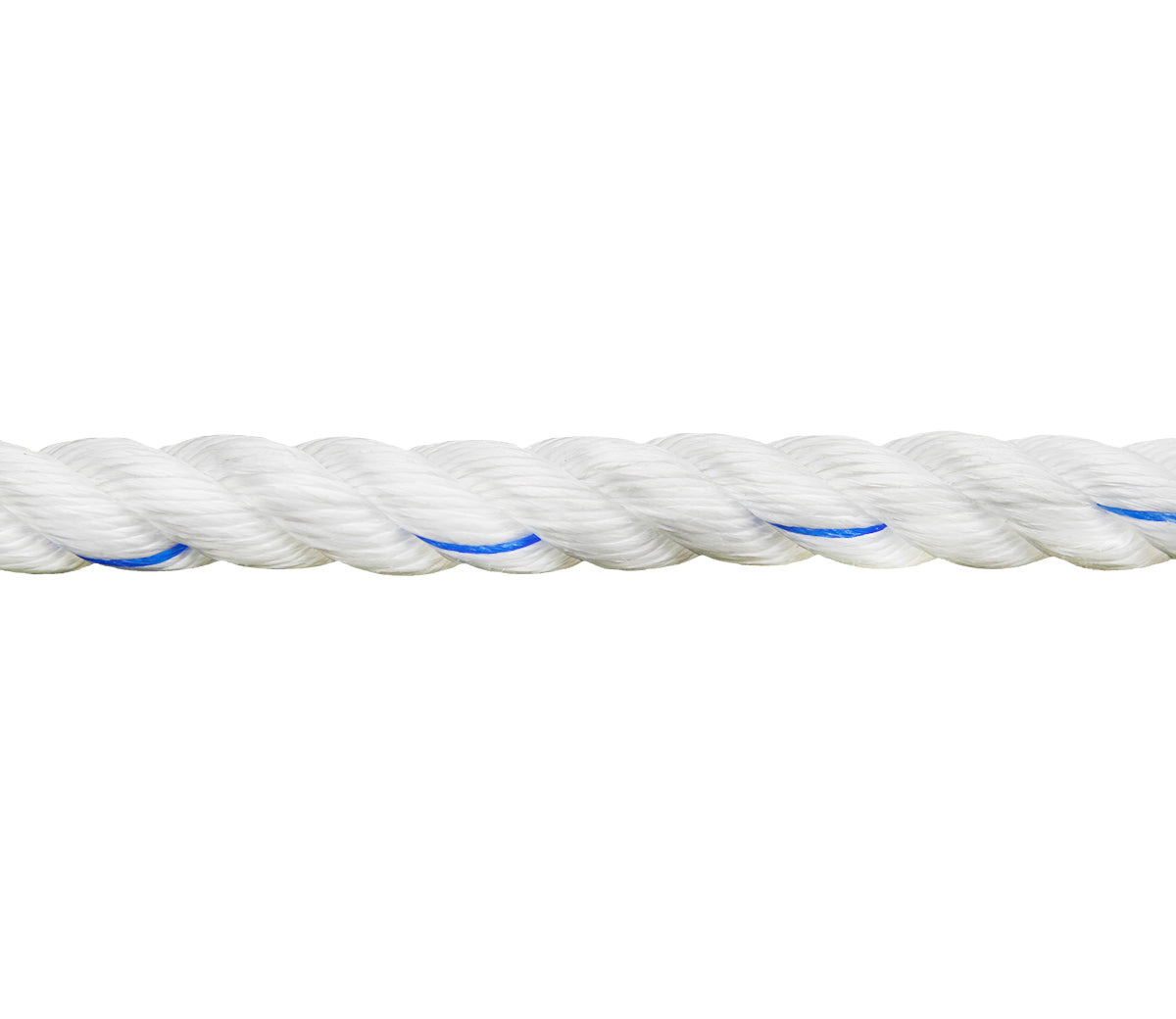

3-strand mixed-fiber rope
Capella TOUGH MIX 3 features 3-strand rope made from a polypropylene and polyester blend. Compare the TOUGH MIX 3 source table for the requested marine or fishing configuration.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Updated product of High Tenacity polypropylene & polyester, it's superior to pure polyester or polypropylene only, lighter weight than polyester and stronger break strength than polypropylene, this rope is smooth, non-rotational and excellent coefficient of friction.
Construction, Features and Applications
Construction:
3-strand
Features:
Specific Gravity:0.99g/cm³
Melting Point: 165/260°C
Abrasion Resistance:Very Good
Chemical Resistance:Very Good
UV Resistance:Very Good
Water Absorption：0%
Wet-dry Strength Ratio:Dry≈Wet
Applications:
Mooring and Tie-up Line
Mooring Pendants
Tug Assist Line
Technical Specifications
| Dia. | Circ. | Weight | Unspliced MBL | Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN |
| 12 | 1/2 | 1-1/2 | 9.2 | 6.2 | 2.2 | 22 | 2 | 20 |
| 14 | 9/16 | 1-3/4 | 11.8 | 7.9 | 2.7 | 26 | 2.3 | 23 |
| 16 | 5/8 | 2 | 14.1 | 9.5 | 3.1 | 30 | 2.8 | 27 |
| 18 | 3/4 | 2-1/4 | 20.1 | 13.5 | 4.3 | 42 | 3.8 | 37 |
| 22 | 7/8 | 2-3/4 | 26.8 | 18.0 | 5.6 | 55 | 5 | 49 |
| 24 | 1 | 3 | 32.4 | 21.7 | 6.6 | 65 | 6 | 59 |
| 26 | 1-1/16 | 3-1/4 | 36.5 | 24.5 | 7.4 | 73 | 6.7 | 66 |
| 28 | 1-1/8 | 3-1/2 | 40.3 | 27.0 | 8.3 | 81 | 7.4 | 73 |
| 30 | 1-1/4 | 3-3/4 | 49.7 | 33.3 | 10 | 98 | 9.1 | 89 |
| 32 | 1-5/16 | 4 | 54.3 | 36.4 | 11.1 | 109 | 10 | 98 |
| 36 | 1-1/2 | 4-1/2 | 69.9 | 46.9 | 14.3 | 140 | 12.9 | 126 |
| 40 | 1-5/8 | 5 | 81.9 | 54.9 | 16.6 | 163 | 15 | 147 |
| 44 | 1-3/4 | 5-1/2 | 92.3 | 61.9 | 18.6 | 182 | 16.7 | 164 |
| 48 | 2 | 6 | 120.5 | 80.8 | 24.3 | 238 | 21.8 | 214 |
| 52 | 2-1/8 | 6-1/2 | 135.4 | 90.8 | 27.2 | 267 | 24.5 | 240 |
| 56 | 2-1/4 | 7 | 150.3 | 100.8 | 30.2 | 296 | 27.2 | 267 |
| 60 | 2-1/2 | 7-1/2 | 184.5 | 123.8 | 37.1 | 364 | 33.4 | 327 |
| 64 | 2-5/8 | 8 | 202.4 | 135.8 | 40.7 | 399 | 36.6 | 359 |
| 68 | 2-3/4 | 8-1/2 | 239.6 | 160.7 | 48.2 | 472 | 43.3 | 424 |
| 72 | 3 | 9 | 258.9 | 173.7 | 51.9 | 509 | 46.7 | 458 |
| 80 | 3-1/4 | 10 | 315.5 | 211.6 | 61.9 | 607 | 55.7 | 546 |
| 88 | 3-5/8 | 11 | 385.0 | 258.2 | 72.8 | 713 | 65.5 | 642 |
| 96 | 4 | 12 | 460.0 | 308.5 | 87.3 | 856 | 78.6 | 770 |
| 100 | 4-1/8 | 12-1/2 | 500.0 | 335.4 | 96.3 | 944 | 86.7 | 850 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation for the requested configuration before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show supplier branding. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for your required diameter, length or spool weight, color, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
