Capella
TOUGH-LEAD
Capella TOUGH-LEAD features 3-strand polypropylene rope with a lead core. Review source dimensions and weights for fishing or aquaculture requirements; the lead core is part of the material specification.
- Product family
- Commercial Fishing Rope
- Industry
- Commercial Fishing
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

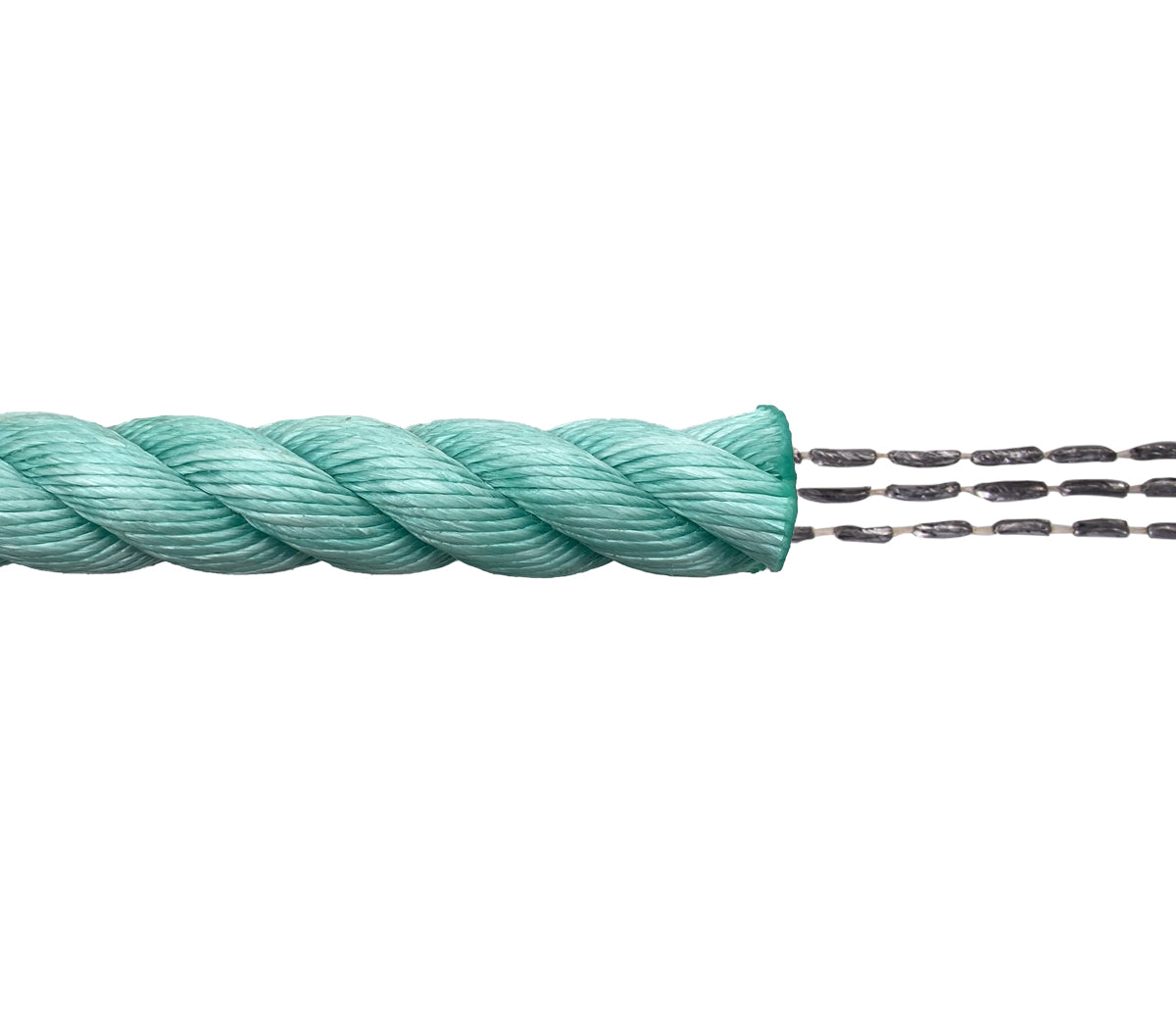

Lead-core fishing rope
Capella TOUGH-LEAD features 3-strand polypropylene rope with a lead core. Review source dimensions and weights for fishing or aquaculture requirements; the lead core is part of the material specification.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This rope works well in a variety of marine applications requiring durable, rot-proof lines that sink. It can offer good strength and resistance to abrasion and UV light. We can provide leaded ground line in both coils and reels.
Construction, Features and Applications
High Tenacity Polypropylene with Lead Core
Construction: 3-strand
Features:
Abrasion Resistance:Good
Chemical Resistance:Very Good
UV Resistance:Good
Water Absorption：0%
Wet-dry Strength Ratio:Dry=Wet
Applications:
Fishing Line
Aquaculture
Technical Specifications
| Dia. | Circ. | Weight | MBL | |||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN |
| 12 | 1/2 | 1-1/2 | 10.5 | 7.0 | 0.2 | 1.9 |
| 14 | 9/16 | 1-3/4 | 14.3 | 9.6 | 0.3 | 2.6 |
| 16 | 5/8 | 2 | 18.8 | 12.6 | 0.3 | 3.2 |
| 18 | 3/4 | 2-1/4 | 22.5 | 15.1 | 0.4 | 4.0 |
| 20 | 13/16 | 2-1/2 | 29.5 | 19.8 | 0.5 | 4.8 |
| 22 | 7/8 | 2-3/4 | 35.0 | 23.5 | 0.6 | 5.9 |
| 24 | 1 | 3 | 41.3 | 27.7 | 0.7 | 6.9 |
| 26 | 1-1/16 | 3-1/4 | 49.5 | 33.2 | 0.8 | 7.9 |
| 28 | 1-1/8 | 3-1/2 | 57.5 | 38.6 | 0.9 | 9.0 |
| 30 | 1-1/4 | 3-3/4 | 63.8 | 42.8 | 1.1 | 10.4 |
| 32 | 1-5/16 | 4 | 71.3 | 47.8 | 1.2 | 11.7 |
| 36 | 1-1/2 | 4-1/2 | 91.0 | 61.0 | 1.4 | 13.4 |
| 40 | 1-5/8 | 5 | 112.5 | 75.5 | 1.8 | 17.7 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation for the requested configuration before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show supplier branding. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for your required diameter, length or spool weight, color, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
