Capella
TOUGH - HS 8
Capella TOUGH - HS 8 features 8-strand rope made from high-tenacity polyolefin. Compare the HS 8 construction and marine rope diameter table.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

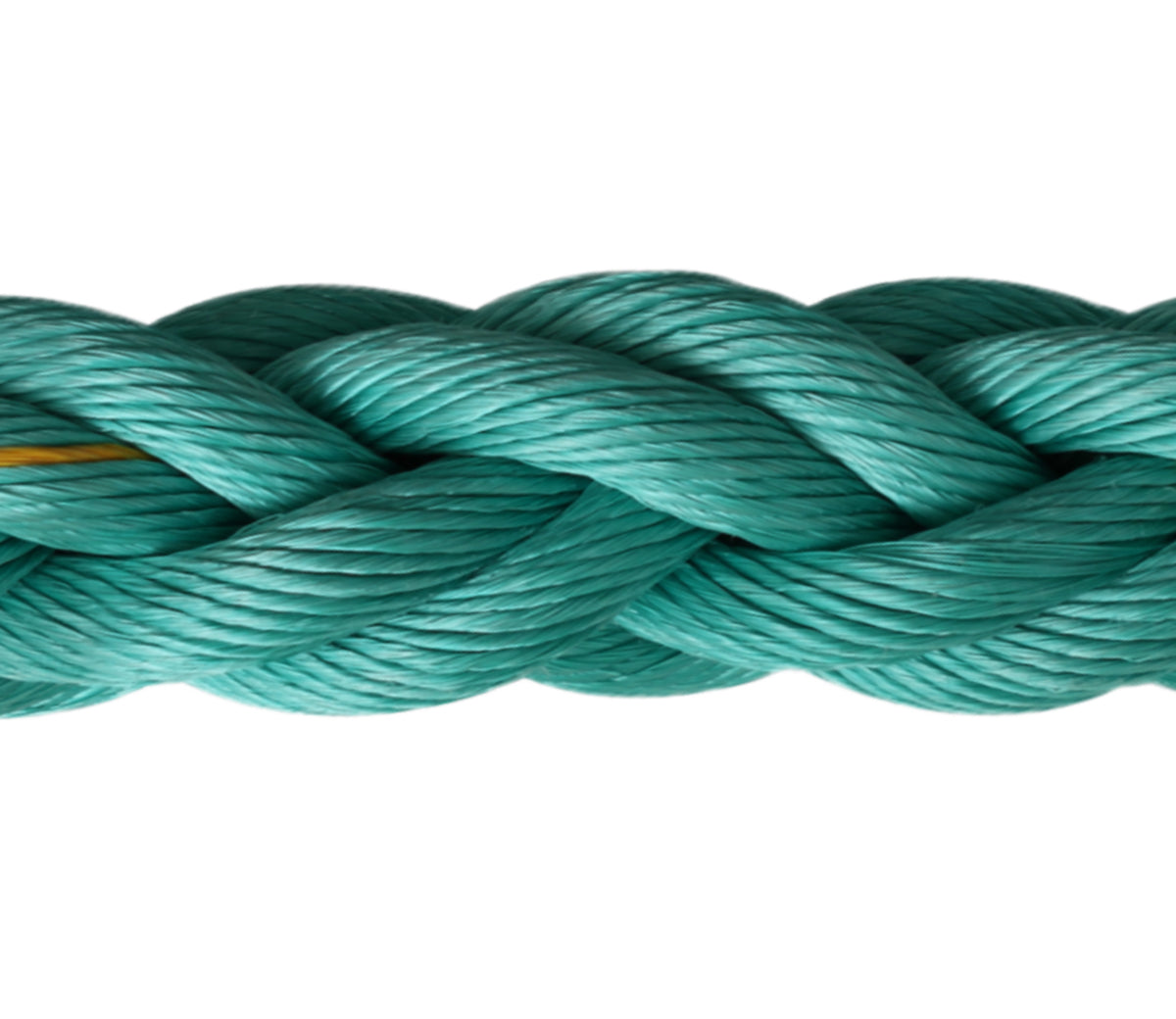

8-strand polyolefin rope
Capella TOUGH - HS 8 features 8-strand rope made from high-tenacity polyolefin. Compare the HS 8 construction and marine rope diameter table.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Made of high tenacity polyolefin fiber, which is the stronger rope among PP, PE and Polyolefin ropes. Excellent breaking strength and remarkable abrasion resistance.
Construction, Features and Applications
HIGH TENACITY POLYOLEFIN
8-STRAND
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Floating Tow Lines
Mooring Lines
Tie-up Lines
Anchor Lines
Fishing Lines
Pick-up Lines
Technical Specifications
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 28.8 | 19.3 | 6108514 | 13.5 | 132 | 12.2 | 120 | 6108614 | 14.0 | 137 | 12.7 | 125 |
| 26 | 1-1/16 | 3-1/4 | 33.7 | 22.6 | 6108515 | 15.7 | 154 | 14.3 | 140 | 6108615 | 16.3 | 160 | 14.9 | 146 |
| 28 | 1-1/8 | 3-1/2 | 39.4 | 26.5 | 6108516 | 18.0 | 176 | 16.3 | 160 | 6108616 | 18.7 | 183 | 17.0 | 166 |
| 30 | 1-1/4 | 3-3/4 | 44.9 | 30.1 | 6108517 | 20.4 | 200 | 18.6 | 182 | 6108617 | 21.2 | 208 | 19.3 | 189 |
| 32 | 1-5/16 | 4 | 51.1 | 34.3 | 6108518 | 23.1 | 227 | 21.0 | 206 | 6108618 | 24.0 | 236 | 21.9 | 214 |
| 36 | 1-1/2 | 4-1/2 | 64.1 | 43.0 | 6108520 | 29.1 | 285 | 26.4 | 259 | 6108620 | 30.2 | 296 | 27.5 | 269 |
| 40 | 1-5/8 | 5 | 79.1 | 53.1 | 6108522 | 35.5 | 348 | 32.2 | 316 | 6108622 | 36.9 | 362 | 33.5 | 329 |
| 44 | 1-3/4 | 5-1/2 | 97.7 | 65.6 | 6108523 | 42.2 | 414 | 38.4 | 376 | 6108623 | 43.9 | 430 | 39.9 | 391 |
| 48 | 2 | 6 | 114.5 | 76.9 | 6108525 | 49.8 | 488 | 45.3 | 444 | 6108625 | 51.8 | 508 | 47.1 | 462 |
| 52 | 2-1/8 | 6-1/2 | 134.0 | 90.0 | 6108526 | 57.9 | 568 | 52.7 | 516 | 6108626 | 60.2 | 590 | 54.8 | 537 |
| 56 | 2-1/4 | 7 | 156.0 | 104.7 | 6108527 | 66.6 | 652 | 60.5 | 593 | 6108627 | 69.2 | 678 | 62.9 | 617 |
| 60 | 2-1/2 | 7-1/2 | 179.0 | 120.2 | 6108528 | 75.4 | 739 | 68.6 | 672 | 6108628 | 78.4 | 769 | 71.3 | 699 |
| 64 | 2-5/8 | 8 | 203.6 | 136.7 | 6108530 | 84.9 | 832 | 77.1 | 756 | 6108630 | 88.3 | 865 | 80.2 | 786 |
| 68 | 3-3/4 | 8-1/2 | 230.0 | 154.4 | 6108531 | 95.3 | 934 | 86.6 | 849 | 6108631 | 99.1 | 971 | 90.1 | 883 |
| 72 | 3 | 9 | 258.0 | 173.2 | 6108533 | 106.1 | 1040 | 96.4 | 945 | 6108633 | 110.3 | 1081 | 100.3 | 983 |
| 80 | 3-1/4 | 10 | 319.0 | 214.2 | 6108536 | 128.7 | 1262 | 117.0 | 1147 | 6108636 | 133.9 | 1312 | 121.7 | 1193 |
| 88 | 3-5/8 | 11 | 386.0 | 259.1 | 6108538 | 153.8 | 1507 | 139.8 | 1370 | 6108638 | 159.9 | 1567 | 145.4 | 1425 |
| 96 | 4 | 12 | 459.0 | 308.2 | 6108540 | 181.1 | 1774 | 164.6 | 1613 | 6108640 | 188.3 | 1845 | 171.2 | 1678 |
| 104 | 4-1/4 | 13 | 536.0 | 359.9 | 6108542 | 209.8 | 2056 | 190.7 | 1869 | 6108642 | 218.2 | 2138 | 198.3 | 1944 |
| 112 | 4-5/8 | 14 | 623.0 | 418.3 | 6108545 | 242.8 | 2379 | 220.7 | 2163 | 6108645 | 252.5 | 2474 | 229.5 | 2250 |
| 120 | 5 | 15 | 718.0 | 482.0 | 6108548 | 275.9 | 2704 | 250.8 | 2458 | 6108648 | 286.9 | 2812 | 260.8 | 2556 |
| 128 | 5-1/4 | 16 | 816.0 | 547.8 | 6108549 | 313.2 | 3069 | 284.7 | 2790 | 6108649 | 325.7 | 3192 | 296.1 | 2902 |
| 136 | 5-5/8 | 17 | 922.0 | 619.0 | 6108551 | 352.0 | 3450 | 320.0 | 3136 | 6108651 | 366.1 | 3588 | 332.8 | 3261 |
| 144 | 6 | 18 | 1033.0 | 693.5 | 6108552 | 393.6 | 3858 | 357.9 | 3507 | 6108652 | 409.4 | 4012 | 372.2 | 3647 |
| 152 | 6-1/4 | 19 | 1155.0 | 775.4 | 6108554 | 436.7 | 4280 | 397.0 | 3891 | 6108654 | 454.2 | 4451 | 412.9 | 4047 |
| 160 | 6-5/8 | 20 | 1276.0 | 856.7 | 6108555 | 484.2 | 4745 | 440.2 | 4314 | 6108655 | 503.6 | 4935 | 457.8 | 4487 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
