Capella
TOUGH - FLEX 8

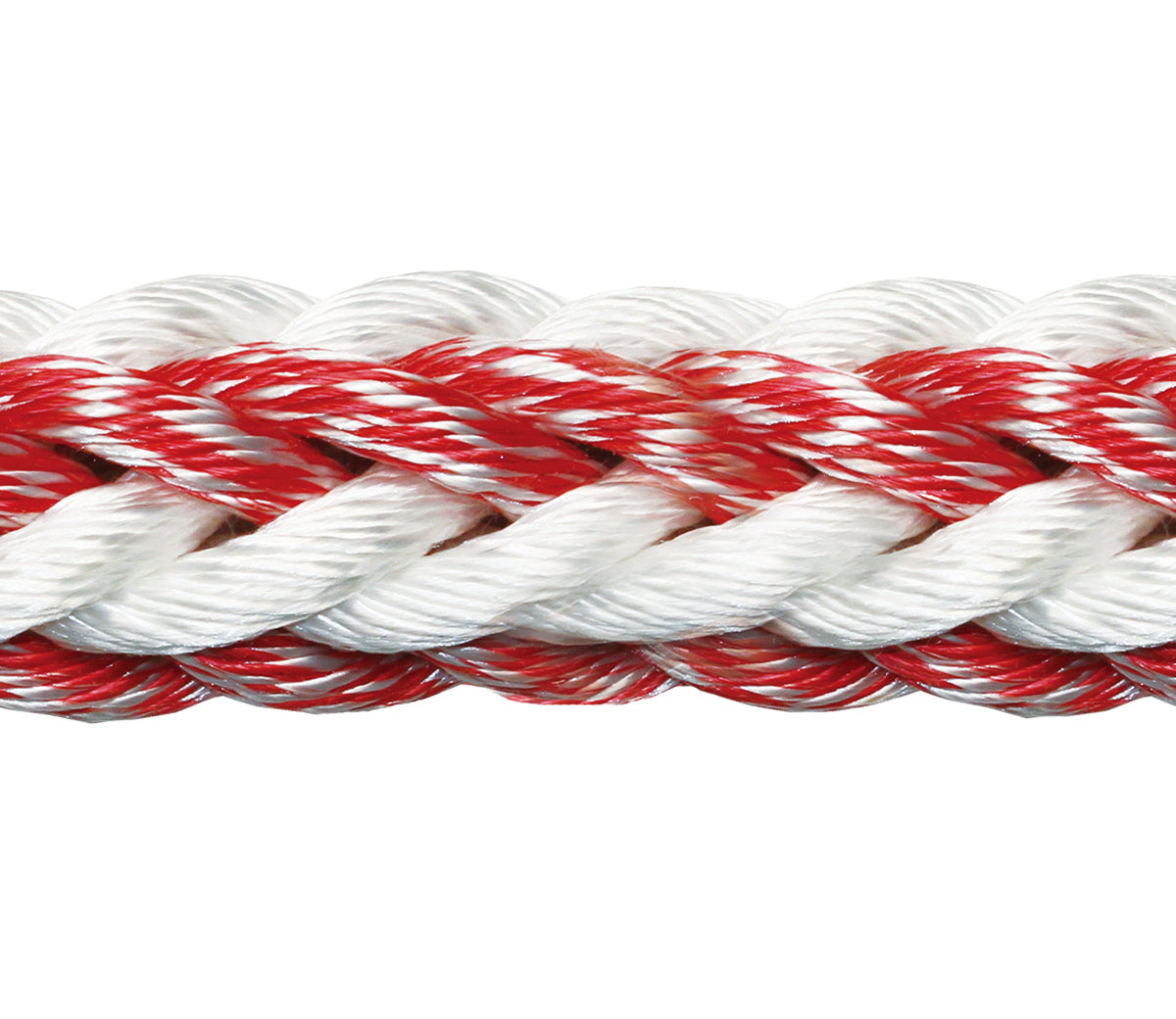

Capella TOUGH - FLEX 8 features marine rope made from a polypropylene and polyester blend. Review the FLEX 8 model data; confirm the exact construction and matching document revision.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Mixed-fiber marine rope
Capella TOUGH - FLEX 8 features marine rope made from a polypropylene and polyester blend. Review the FLEX 8 model data; confirm the exact construction and matching document revision.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
A polypropylene and polyester mixed mooring rope combines the lightweight and buoyant characteristics of polypropylene with the durability and strength of polyester. This blend results in a rope that is both easy to handle and resistant to abrasion, making it suitable for reliable performance in various marine environments.
Construction, Features and Applications
High Tenacity Polypropylene & Polyester Mixed
Structure: 3/8/12-Strand
Features:
Melting Point: 165/260℃
Abrasion Resistance: Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Mooring and Tie-up Lines
Mooring Pendants
Tug Assist Line
Anchor Lines
Towing Lines
Mooring Lines
Technical Specifications
| Dia | Circ. | Weight | Code | 8-Strand | Code | 12-Strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 33.2 | 22.3 | 6115514 | 14.1 | 138 | 12.8 | 125 | 6115614 | 14.6 | 143 | 13.3 | 130 |
| 26 | 1-1/16 | 3-1/4 | 39.4 | 26.5 | 6115515 | 16 | 157 | 14.5 | 142 | 6115615 | 16.6 | 163 | 15.1 | 148 |
| 28 | 1-1/8 | 3-1/2 | 45.5 | 30.5 | 6115516 | 18.2 | 178 | 16.5 | 162 | 6115616 | 18.9 | 185 | 17.2 | 169 |
| 30 | 1-1/4 | 3-3/4 | 52.6 | 35.3 | 6115517 | 20.6 | 202 | 18.8 | 184 | 6115617 | 21.5 | 210 | 19.5 | 191 |
| 32 | 1-5/16 | 4 | 59.5 | 39.9 | 6115518 | 23.2 | 227 | 21.1 | 206 | 6115618 | 24.1 | 236 | 21.9 | 215 |
| 36 | 1-1/2 | 4-1/2 | 74.1 | 49.7 | 6115520 | 26.2 | 257 | 23.8 | 234 | 6115620 | 27.3 | 267 | 24.8 | 243 |
| 40 | 1-5/8 | 5 | 91.4 | 61.4 | 6115522 | 32.4 | 317 | 29.4 | 288 | 6115622 | 33.7 | 330 | 30.6 | 300 |
| 44 | 1-3/4 | 5-1/2 | 108.9 | 73.1 | 6115523 | 38.2 | 374 | 34.7 | 340 | 6115623 | 39.7 | 389 | 36.1 | 354 |
| 48 | 2 | 6 | 131.9 | 88.6 | 6115525 | 44.6 | 437 | 40.6 | 398 | 6115625 | 46.4 | 455 | 42.2 | 414 |
| 52 | 2-1/8 | 6-1/2 | 150 | 100.7 | 6115526 | 51.3 | 503 | 46.6 | 457 | 6115626 | 53.4 | 523 | 48.5 | 475 |
| 56 | 2-1/4 | 7 | 179 | 120.2 | 6115527 | 60.9 | 597 | 55.4 | 543 | 6115627 | 63.4 | 621 | 57.6 | 564 |
| 60 | 2-1/2 | 7-1/2 | 200.5 | 134.6 | 6115528 | 68.2 | 669 | 62 | 608 | 6115628 | 71 | 695 | 64.5 | 632 |
| 64 | 2-5/8 | 8 | 227 | 152.4 | 6115530 | 77.5 | 760 | 70.5 | 691 | 6115630 | 80.6 | 790 | 73.3 | 718 |
| 68 | 3-3/4 | 8-1/2 | 254 | 170.5 | 6115531 | 84.3 | 826 | 76.6 | 751 | 6115631 | 87.7 | 859 | 79.7 | 781 |
| 72 | 3 | 9 | 284 | 190.7 | 6115533 | 96.5 | 945 | 87.7 | 859 | 6115633 | 100.3 | 983 | 91.2 | 894 |
| 80 | 3-1/4 | 10 | 348.5 | 234 | 6115536 | 117.5 | 1152 | 106.8 | 1047 | 6115636 | 122.2 | 1198 | 111.1 | 1089 |
| 88 | 3-5/8 | 11 | 420.5 | 282.3 | 6115538 | 141 | 1382 | 128.2 | 1256 | 6115638 | 146.6 | 1437 | 133.3 | 1306 |
| 96 | 4 | 12 | 500 | 335.7 | 6115540 | 164.8 | 1615 | 149.8 | 1468 | 6115640 | 171.4 | 1680 | 155.8 | 1527 |
| 104 | 4-1/4 | 13 | 584 | 392.1 | 6115542 | 192.4 | 1885 | 174.9 | 1714 | 6115642 | 200.1 | 1961 | 181.9 | 1783 |
| 112 | 4-5/8 | 14 | 673 | 451.8 | 6115545 | 221.9 | 2175 | 201.7 | 1977 | 6115645 | 230.8 | 2262 | 209.8 | 2056 |
| 120 | 5 | 15 | 774 | 519.6 | 6115548 | 253.3 | 2483 | 230.3 | 2257 | 6115648 | 263.5 | 2582 | 239.5 | 2347 |
| 128 | 5-1/4 | 16 | 884 | 593.5 | 6115549 | 285.2 | 2795 | 259.2 | 2540 | 6115649 | 296.6 | 2906 | 269.6 | 2642 |
| 136 | 5-5/8 | 17 | 995 | 668 | 6115551 | 320 | 3136 | 290.9 | 2850 | 6115651 | 332.8 | 3261 | 302.5 | 2965 |
| 144 | 6 | 18 | 1123 | 7539 | 6115552 | 357.4 | 3502 | 324.9 | 3184 | 6115652 | 371.7 | 3643 | 337.9 | 3311 |
| 152 | 6-1/4 | 19 | 1255 | 842.6 | 6115554 | 395.9 | 3880 | 359.9 | 3527 | 6115654 | 411.7 | 4035 | 374.3 | 3668 |
| 160 | 6-5/8 | 20 | 1396 | 937.2 | 6115555 | 436.9 | 4282 | 397.2 | 3893 | 6115655 | 454.4 | 4453 | 413.1 | 4048 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
