Capella
ROUND SLING
Capella ROUND SLING features round sling with continuous polyester load-bearing yarns inside a tubular polyester jacket. Review color coding, hitch configurations and source load tables for the exact assembly.
- Product family
- Lifting Sling
- Industry
- Lifting
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

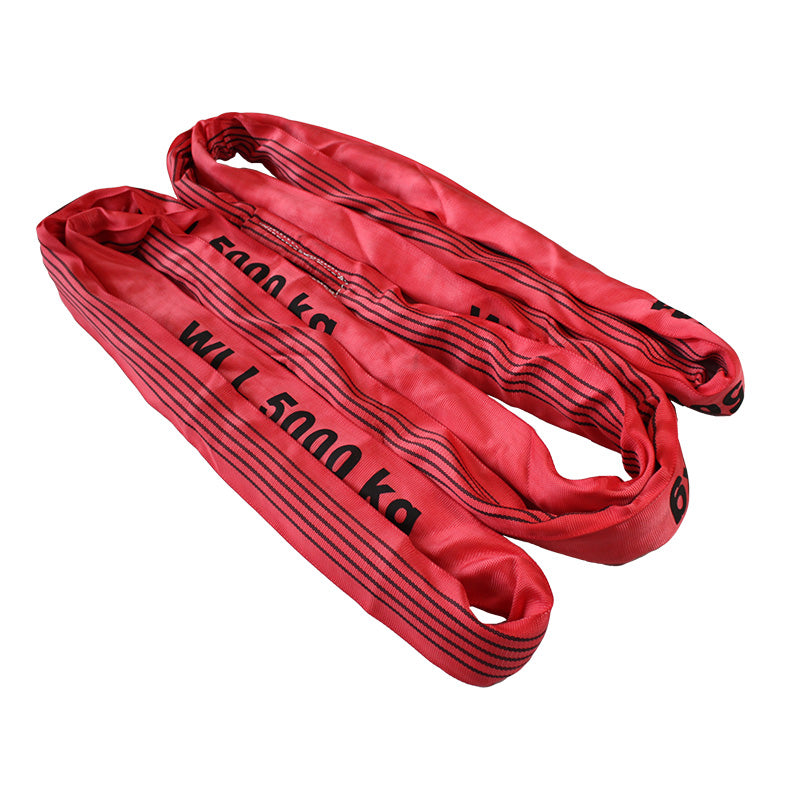

Polyester round sling
Capella ROUND SLING features round sling with continuous polyester load-bearing yarns inside a tubular polyester jacket. Review color coding, hitch configurations and source load tables for the exact assembly.
For a quotation, specify the required capacity, sling length, hitch or leg configuration, fittings and quantity. This is a non-stocked product; confirm the exact assembly and applicable ratings before ordering.
Overview
Round sling offer an enhanced combination of strength abrasion resistant outer jacket. Better breaking strength than web sling with less weight Flexibility handling and stocking, Protect the lifted body well.High resistance to chemical and oil contamination.
Construction, Features and Applications
Construction:
Made from a continuous loop of polyester yarn covered by a double wall tubular polyester jacket
Safety Factor:
5:1, 7:1, 8:1
Features/Benefits:

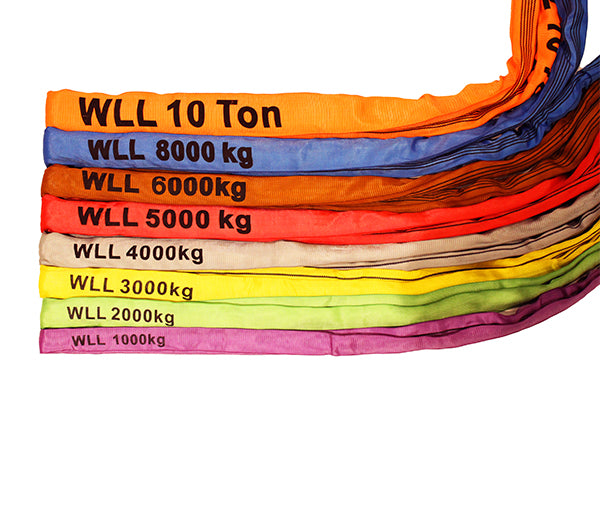

Color coded for easy identification
Lightweight and flexible for easy rigging and storage
Design allows legs to be spread, increasing load stability
Low stretch - good for low headroom lifts
Resists moisture absorption, rot and mildew
Soft seamless cover protects and securely grips load
Resists most industrial acids and hot bleaching solutions
Red striped core yarns visually warn of sling damage
Load bearing yarns protected from UV degradation
Sizes/Capacities:
Length range from 1.5 to 50 feet
Capacities from 2,600 to 180,000 lbs
Technical Specifications
| Item Number | Color Code | S.W.L(T) | Working Load Limits | ||||||||
| Vertical Hitch | Chocker Hitch | Basket Hitch | Two Leg Sling |
Three and Four Leg Sling |
|||||||
| Parallel | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | β=0°-45° | β=45°-60° | |||||
|
|
 |
|
|
|
|
|
|
|||
| M=1.0 | M=0.8 | M=2 | M=1.4 | M=1 | M=1.4 | M=1 | M=2.1 | M=1.5 | |||

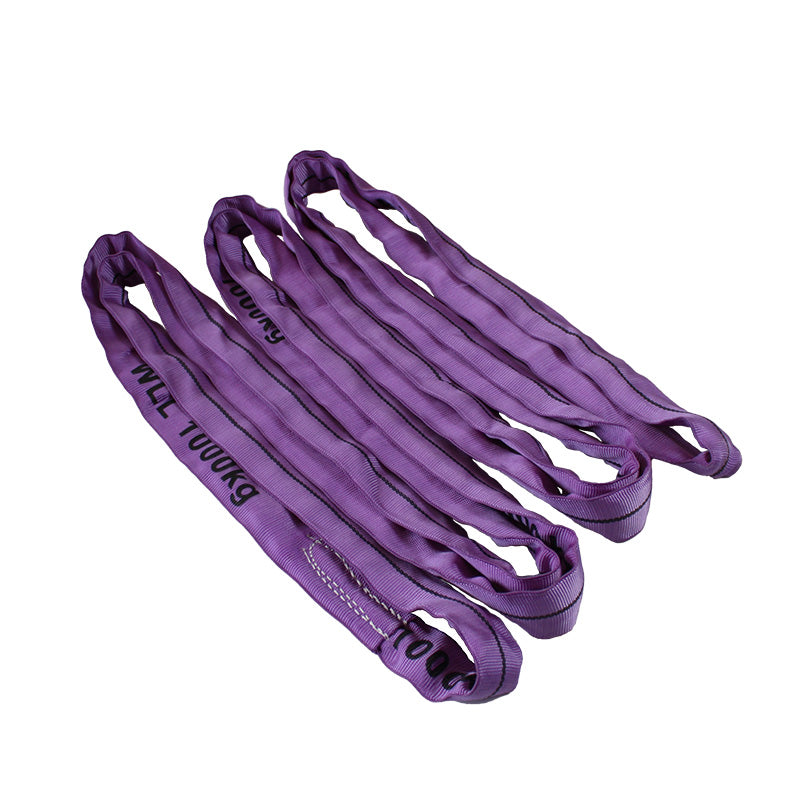

| 5232012 | VIOLET | 1 | 1 | 0.8 | 2 | 1.4 | 1 | 1.4 | 1 | 2.1 | 1.5 |

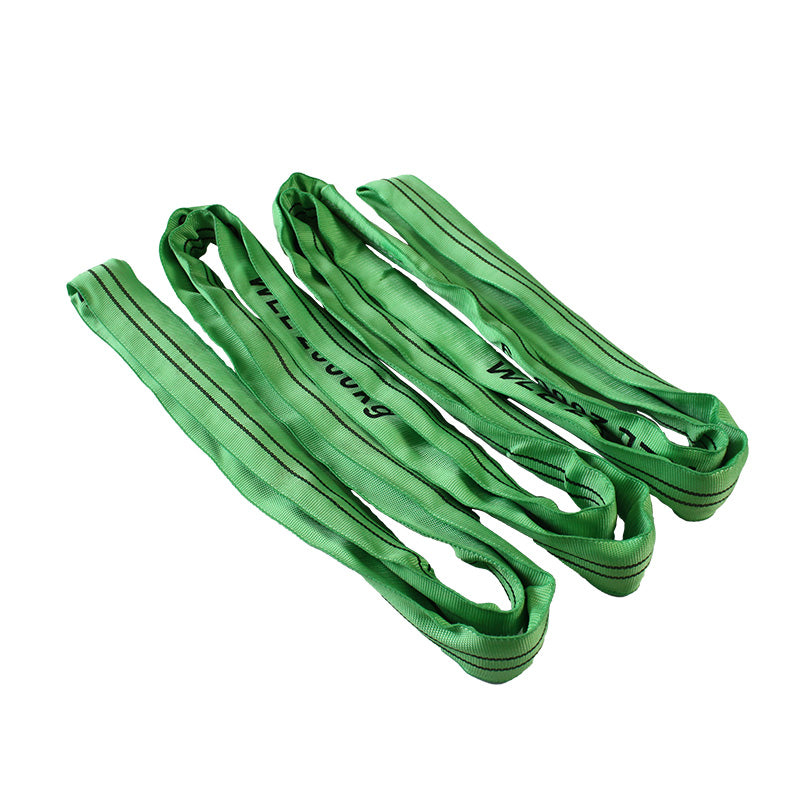

| 5232022 | GREEN | 2 | 2 | 1.6 | 4 | 2.8 | 2 | 2.8 | 2 | 4.2 | 3.0 |

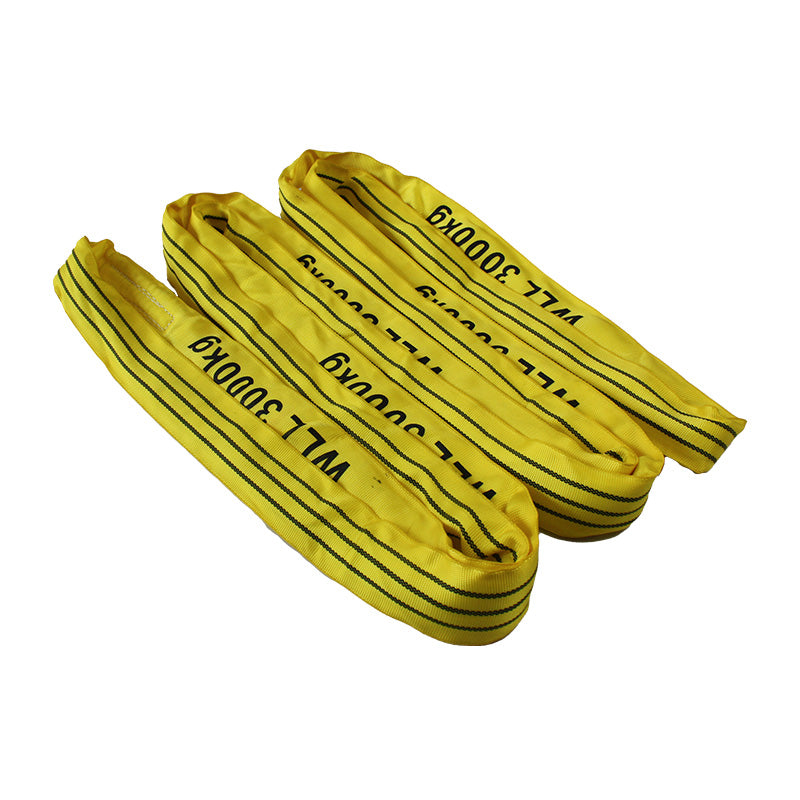

| 5232032 | YELLOW | 3 | 3 | 2.4 | 6 | 4.2 | 3 | 4.2 | 3 | 6.3 | 4.5 |

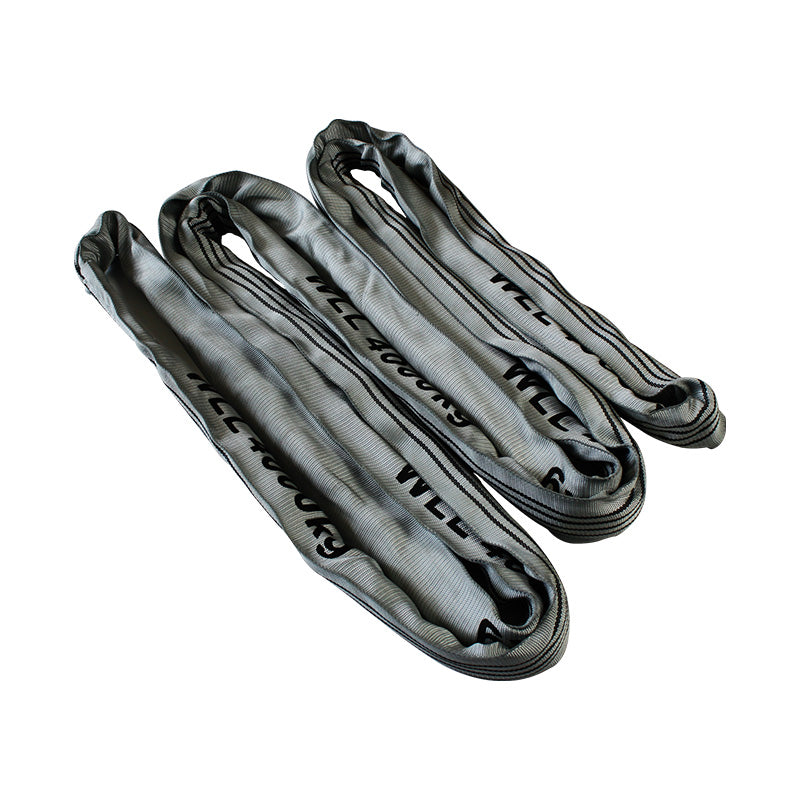

| 5232042 | GREY | 4 | 4 | 3.2 | 8 | 5.6 | 4 | 5.6 | 4 | 8.4 | 6.0 |
| 5232052 | RED | 5 | 5 | 4.0 | 10 | 7.0 | 5 | 7.0 | 5 | 10.5 | 7.5 |

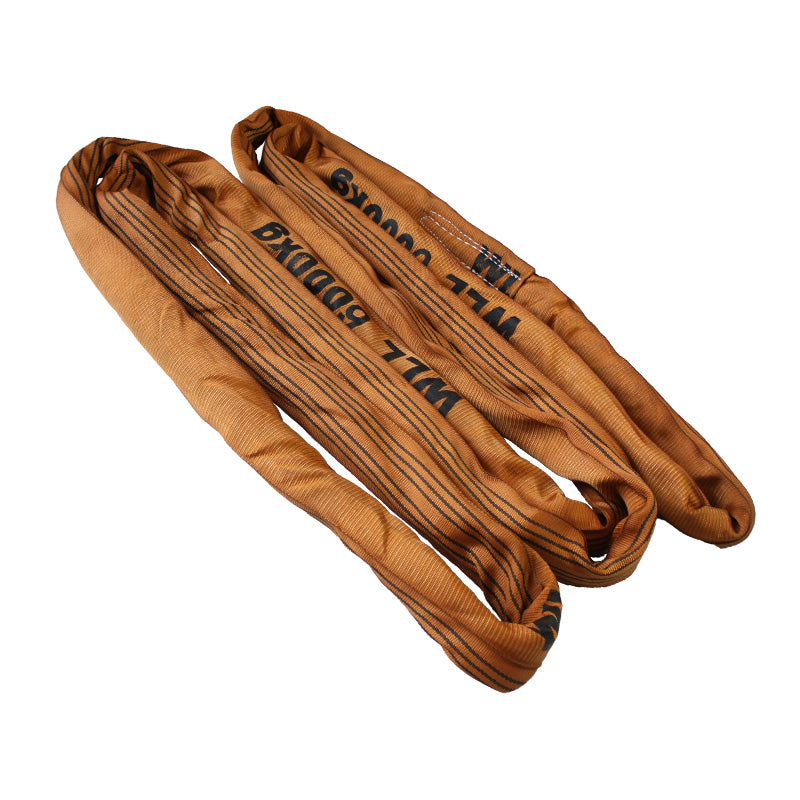

| 5232062 | BROWN | 6 | 6 | 4.8 | 12 | 8.4 | 6 | 8.4 | 6 | 12.6 | 9.0 |

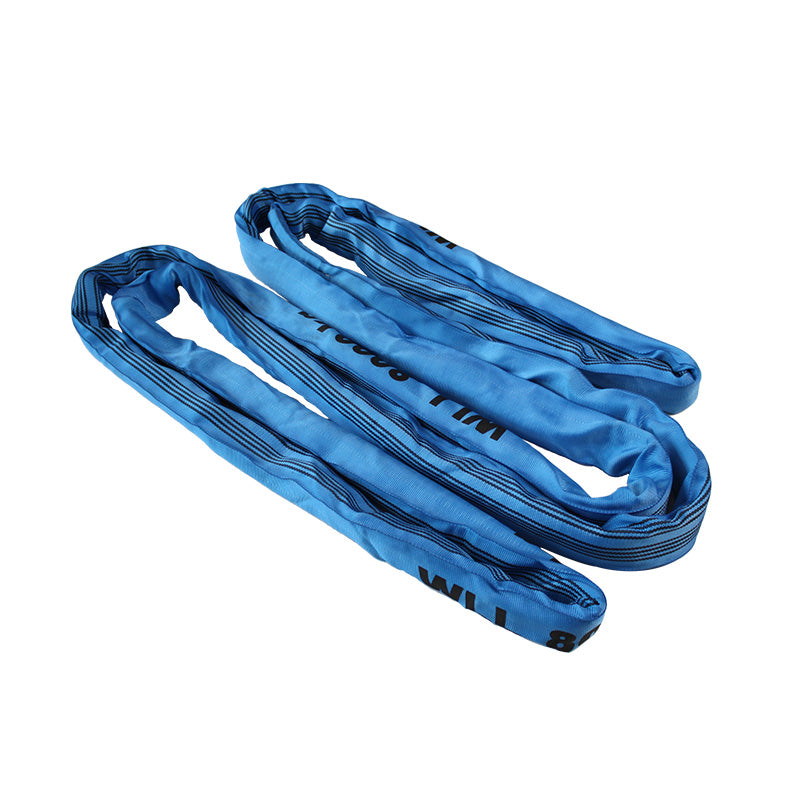

| 5232072 | BLUE | 8 | 8 | 6.4 | 16 | 11.2 | 8 | 11.2 | 8 | 16.8 | 12.0 |

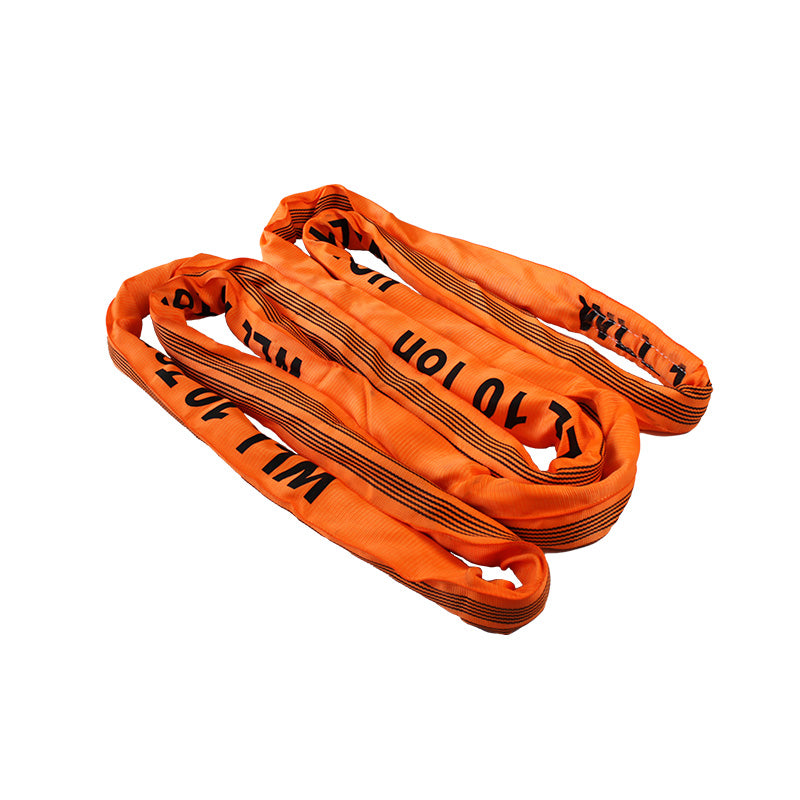

| 5232082 | ORANGE | 10 | 10 | 8.0 | 20 | 14.0 | 10 | 14.0 | 10 | 21.0 | 15.0 |
| 5232092 | 12 | 12 | 9.6 | 24 | 16.8 | 12 | 16.8 | 12 | 25.2 | 18 | |
Application and Rating Confirmation
Breaking-load values are not working load limits. Confirm the rated working load limit, design factor, hitch, sling angle, number of legs, end fittings, and application suitability for the exact assembly before use. Manufacturer table values and claims are retained as source data, not independent Capella certification.
