Capella
MOORING TAIL POLYESTER
Capella MOORING TAIL POLYESTER features polyester mooring tail with 8/12-strand construction listed in the source. Compare dimensions and source data for a polyester mooring-tail requirement.
- Product family
- Marine Mooring Tail
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

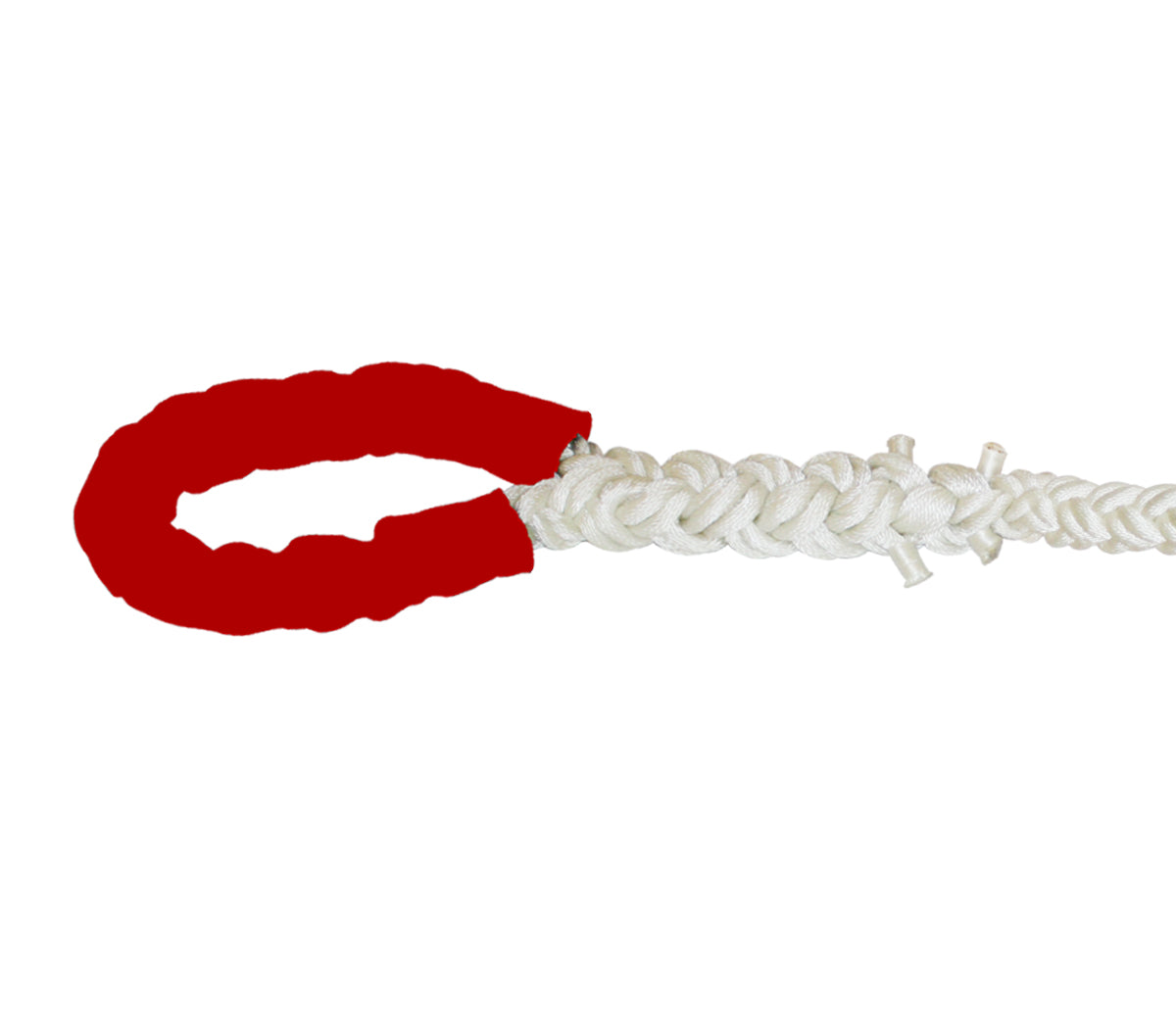

Polyester mooring tail
Capella MOORING TAIL POLYESTER features polyester mooring tail with 8/12-strand construction listed in the source. Compare dimensions and source data for a polyester mooring-tail requirement.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Mooring tails provide good elasticity and sudden shock absorption when windy weather or big wave comes, it's a necessary protection for primary mooring line .
Construction, Features and Applications
High Tenacity Polyester
Structure: 8/12-strand
Features:
Easy to splice
UV resistance
Rot-proof
High abrasion resistance
Applications:
General Working Lines
Mooring Tails
Technical Specifications
| Dia | Circ. | Weight | Eye Length | Total Length | Code | 8-strand | Code | 12-strand | ||||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | inch | mm | ft | m | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 48 | 2 | 6 | 175.0 | 117.4 | 70 | 1800 | 36 | 11 | 6345125 | 41.0 | 402 | 36.9 | 362 | 6346125 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 137.5 | 70 | 1800 | 36 | 11 | 6345126 | 49.0 | 480 | 44.1 | 432 | 6346126 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 159.6 | 70 | 1800 | 36 | 11 | 6345127 | 55.1 | 540 | 49.6 | 486 | 6346127 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 183.1 | 70 | 1800 | 36 | 11 | 6345128 | 61.2 | 600 | 55.1 | 540 | 6346128 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 208.6 | 70 | 1800 | 36 | 11 | 6345130 | 68.6 | 672 | 61.7 | 605 | 6346130 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 263.6 | 70 | 1800 | 36 | 11 | 6345134 | 86.9 | 852 | 78.2 | 767 | 6346134 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 326.0 | 70 | 1800 | 36 | 11 | 6345136 | 110.2 | 1080 | 99.2 | 972 | 6346136 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 394.4 | 70 | 1800 | 36 | 11 | 6345138 | 129.8 | 1272 | 116.8 | 1145 | 6346138 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 468.8 | 70 | 1800 | 36 | 11 | 6345140 | 153.1 | 1500 | 137.8 | 1350 | 6346140 | 161.6 | 1584 | 145.5 | 1426 |
| 48 | 2 | 6 | 175.0 | 117.4 | 70 | 1800 | 72 | 22 | 6345225 | 41.0 | 402 | 36.9 | 362 | 6346225 | 43.5 | 426 | 39.1 | 383 |
| 52 | 2-1/8 | 6-1/2 | 205.0 | 137.5 | 70 | 1800 | 72 | 22 | 6345226 | 49.0 | 480 | 44.1 | 432 | 6346226 | 52.0 | 510 | 46.8 | 459 |
| 56 | 2-1/4 | 7 | 238.0 | 159.6 | 70 | 1800 | 72 | 22 | 6345227 | 55.1 | 540 | 49.6 | 486 | 6346227 | 58.2 | 570 | 52.3 | 513 |
| 60 | 2-1/2 | 7-1/2 | 273.0 | 183.1 | 70 | 1800 | 72 | 22 | 6345228 | 61.2 | 600 | 55.1 | 540 | 6346228 | 64.9 | 636 | 58.4 | 572 |
| 64 | 2-5/8 | 8 | 311.0 | 208.6 | 70 | 1800 | 72 | 22 | 6345230 | 68.6 | 672 | 61.7 | 605 | 6346230 | 73.5 | 720 | 66.1 | 648 |
| 72 | 3 | 9 | 393.0 | 263.6 | 70 | 1800 | 72 | 22 | 6345234 | 86.9 | 852 | 78.2 | 767 | 6346234 | 91.8 | 900 | 82.7 | 810 |
| 80 | 3-1/4 | 10 | 486.0 | 326.0 | 70 | 1800 | 72 | 22 | 6345236 | 110.2 | 1080 | 99.2 | 972 | 6346236 | 116.3 | 1140 | 104.7 | 1026 |
| 88 | 3-5/8 | 11 | 588.0 | 394.4 | 70 | 1800 | 72 | 22 | 6345238 | 129.8 | 1272 | 116.8 | 1145 | 6346238 | 137.1 | 1344 | 123.4 | 1210 |
| 96 | 4 | 12 | 699.0 | 468.8 | 70 | 1800 | 72 | 22 | 6345240 | 153.1 | 1500 | 137.8 | 1350 | 6346240 | 161.6 | 1584 | 145.5 | 1426 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
