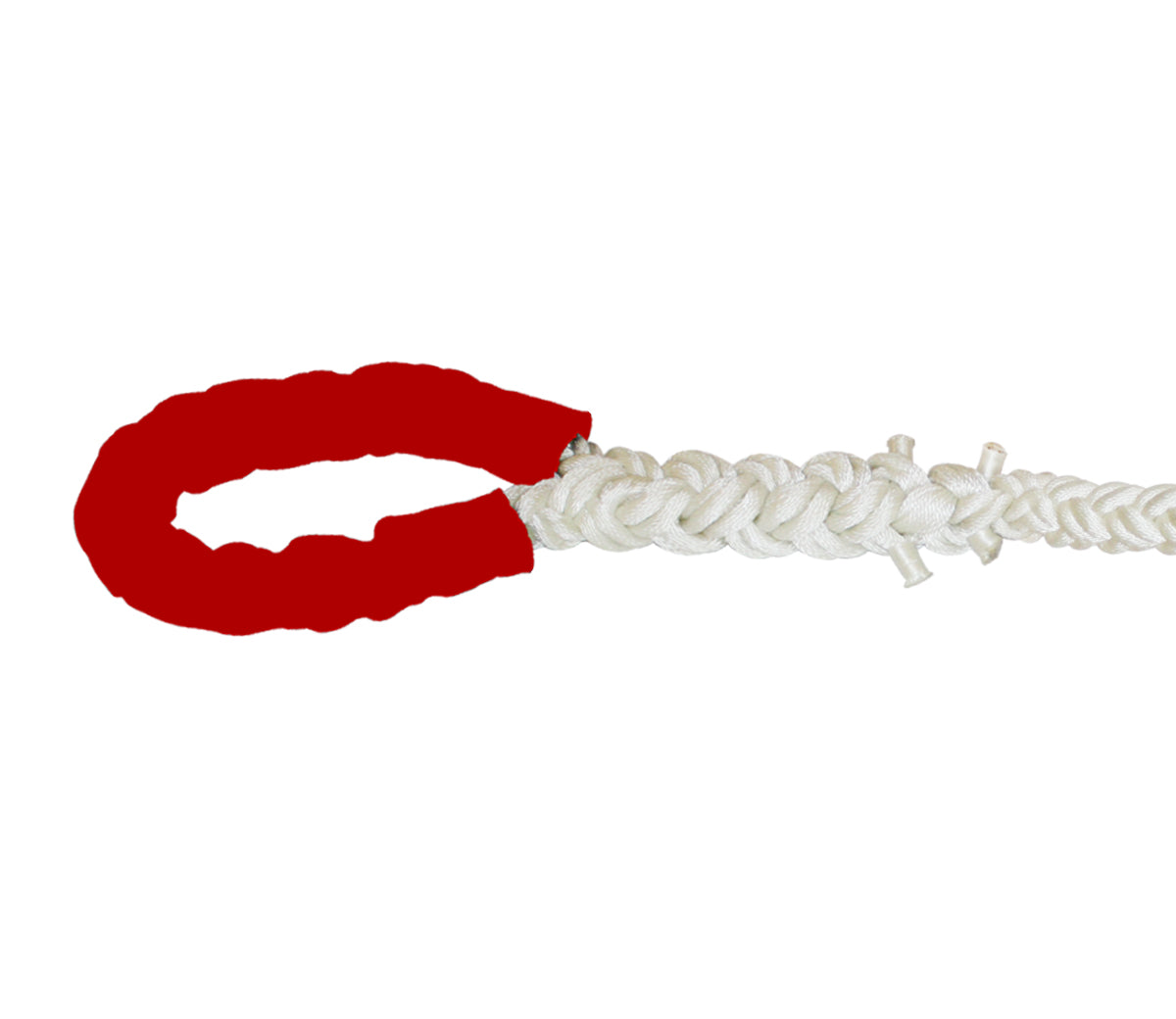

Capella MOORING TAIL POLYAMIDE Rope; polyamide mooring tail with 8/12-strand construction listed in the source
Capella MOORING TAIL POLYAMIDE Rope; polyamide mooring tail with 8/12-strand construction listed in the source

Capella

MOORING TAIL POLYAMIDE

Capella MOORING TAIL POLYAMIDE features polyamide mooring tail with 8/12-strand construction listed in the source. Compare polyamide mooring-tail dimensions and manufacturer data.

Product family
Marine Mooring Tail
Industry
Commercial Marine
Available by quotation

Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.

Request a quote View technical specifications

Capella / Available by quotation

Tell us what you need.

Start with your application and required dimensions. Our team will review the configuration before providing a quotation.

Prefer email? mike@ropehub.com

Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

Quoting: Capella MOORING TAIL POLYAMIDE

Fields marked * are required. Share the specifications you know; we can help with the rest.

Your contact details
Product requirements

Submitting a request does not place an order. Specifications, price and delivery must be confirmed in your quotation.

Product details & technical data

Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

Polyamide mooring tail

Capella MOORING TAIL POLYAMIDE features polyamide mooring tail with 8/12-strand construction listed in the source. Compare polyamide mooring-tail dimensions and manufacturer data.

Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.

Overview

Mooring tails provide good elasticity and sudden shock absorption when windy weather or big wave comes,it's a necessary protection for primary mooring line.

Construction, Features and Applications

High Tenacity Polyamide
Structure: 8/12-strand


Features:

Easy to splice

UV resistance

Rot-proof

High abrasion resistance


Applications:

General Working Lines

Mooring Tails

Technical Specifications

Dia Circ. Weight Eye Length Total Length Code 8-strand Code 12-strand
Unspliced MBL LDBF, Spliced MBL Unspliced MBL LDBF, Spliced MBL
mm inch inch kg/100m lbs/100ft inch mm ft m ton kN ton kN ton kN ton kN
48 2 6 144.0  96.6  70  1800  36  11  6335125 52.1  510  46.9  460  6336125 55.1  540  49.6  486
52 2-1/8 6-1/2 170.0  114.0  70  1800  36  11  6335126 61.2  600  55.1  540  6336126 64.9  636  58.4  572
56 2-1/4 7 197.0  132.1  70  1800  36  11  6335127 68.5  672  61.7  605  6336127 73.4  720  66.1  648
60 2-1/2 7-1/2 226.0  151.6  70  1800  36  11  6335128 77.2  756  69.5  680  6336128 82.1  804  73.8  724
64 2-5/8 8 257.0  172.4  70  1800  36  11  6335130 86.9  852  78.2  767  6336130 91.8  900  82.7  810
72 3 9 325.0  218.0  70  1800  36  11  6335133 110.2  1080  99.2  972  6336133 116.3  1140  104.6  1026
80 3-1/4 10 401.0  269.0  70  1800  36  11  6335136 137.2  1344  123.5  1210  6336136 144.5  1416  130.1  1274
88 3-5/8 11 486.0  326.0  70  1800  36  11  6335138 161.6  1584  145.4  1426  6336138 171.5  1680  154.3  1512
96 4 12 578.0  387.7  70  1800  36  11  6335140 196.0  1920  176.3  1728  6336140 208.2  204  187.3  1836
48 2 6 144.0  96.6  70  1800  72  22  6335225 52.1  510  46.9  460  6336225 55.1  540  49.6  486
52 2-1/8 6-1/2 170.0  114.0  70  1800  72  22  6335226 61.2  600  55.1  540  6336226 64.9  636  58.4  572
56 2-1/4 7 197.0  132.1  70  1800  72  22  6335227 68.5  672  61.7  605  6336227 73.4  720  66.1  648
60 2-1/2 7-1/2 226.0  151.6  70  1800  72  22  6335228 77.2  756  69.5  680  6336228 82.1  804  73.8  724
64 2-5/8 8 257.0  172.4  70  1800  72  22  6335230 86.9  852  78.2  767  6336230 91.8  900  82.7  810
72 3 9 325.0  218.0  70  1800  72  22  6335233 110.2  1080  99.2  972  6336233 116.3  1140  104.6  1026
80 3-1/4 10 401.0  269.0  70  1800  72  22  6335236 137.2  1344  123.5  1210  6336236 144.5  1416  130.1  1274
88 3-5/8 11 486.0  326.0  70  1800  72  22  6335238 161.6  1584  145.4  1426  6336238 171.5  1680  154.3  1512
96 4 12 578.0  387.7  70  1800  72  22  6335240 196.0  1920  176.3  1728  6336240 208.2  204  187.3  1836


a. Bespoke diameter and length is available.

b. ±5% tolerance according to ISO 2307:2010.

c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)



Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.

Technical Reference

Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.

Request a Quote

This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
