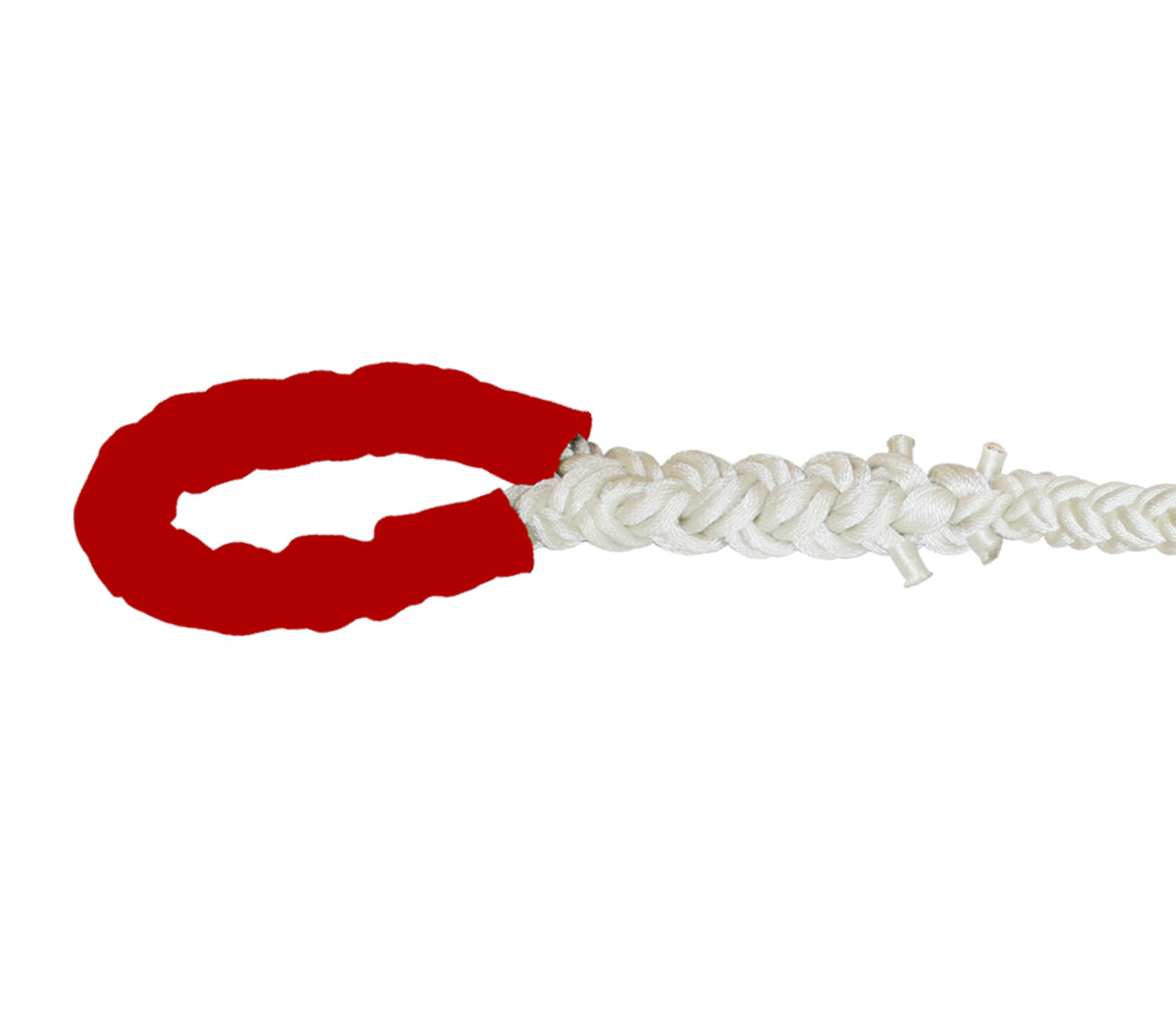

Capella MOORING TAIL MIXED features mooring tail made from polyolefin and polyester, with 8/12-strand construction listed. Review mixed-fiber mooring-tail dimensions and source specifications.
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Call RopeHub: +1 888-354-1699
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Capella MOORING TAIL MIXED features mooring tail made from polyolefin and polyester, with 8/12-strand construction listed. Review mixed-fiber mooring-tail dimensions and source specifications.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Mooring tails provide good elasticity and sudden shock absorption when windy weather or big wave comes, it's a necessary protection for primary mooring line .
High Tenacity Polyolefin & Polyester
Structure: 8/12-strand
Features:
Easy to splice
UV resistance
Rot-proof
High abrasion resistance
Applications:
General Working Lines
Mooring Tails
| Dia | Circ. | Weight | Eye Length | Total Length | Code | 8-strand | Code | 12-strand | ||||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | inch | mm | ft | m | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 48 | 2 | 6 | 122.1 | 82.0 | 70 | 1800 | 36 | 11 | 6395125 | 50.1 | 491 | 45.2 | 443 | 6396125 | 51.6 | 506 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 70 | 1800 | 36 | 11 | 6395126 | 58.4 | 572 | 52.7 | 516 | 6396126 | 60.1 | 589 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 112.3 | 70 | 1800 | 36 | 11 | 6395127 | 67.3 | 660 | 60.6 | 594 | 6396127 | 69.4 | 680 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 70 | 1800 | 36 | 11 | 6395128 | 76.8 | 753 | 69.2 | 678 | 6396128 | 79.1 | 776 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 147.0 | 70 | 1800 | 36 | 11 | 6395130 | 86.9 | 852 | 78.3 | 767 | 6396130 | 89.5 | 878 | 80.6 | 790 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 166.2 | 70 | 1800 | 36 | 11 | 6395131 | 97.3 | 954 | 87.7 | 859 | 6396131 | 100.3 | 983 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 186.1 | 70 | 1800 | 36 | 11 | 6395139 | 108.7 | 1065 | 97.9 | 959 | 6396134 | 111.9 | 1097 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 229.7 | 70 | 1800 | 36 | 11 | 6395136 | 132.7 | 1300 | 119.4 | 1170 | 6396136 | 136.6 | 1339 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 276.9 | 70 | 1800 | 36 | 11 | 6395138 | 159.8 | 1566 | 143.3 | 1404 | 6396138 | 164.6 | 1613 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 330.1 | 70 | 1800 | 36 | 11 | 6395140 | 188.8 | 1850 | 169.5 | 1661 | 6396140 | 194.4 | 1906 | 174.6 | 1711 |
| 48 | 2 | 6 | 122.1 | 82.0 | 70 | 1800 | 72 | 22 | 6395225 | 50.1 | 491 | 45.2 | 443 | 6396225 | 51.6 | 506 | 46.6 | 456 |
| 52 | 2-1/8 | 6-1/2 | 145.2 | 97.5 | 70 | 1800 | 72 | 22 | 6395226 | 58.4 | 572 | 52.7 | 516 | 6396226 | 60.1 | 589 | 54.2 | 531 |
| 56 | 2-1/4 | 7 | 167.2 | 112.3 | 70 | 1800 | 72 | 22 | 6395227 | 67.3 | 660 | 60.6 | 594 | 6396227 | 69.4 | 680 | 62.4 | 612 |
| 60 | 2-1/2 | 7-1/2 | 192.5 | 129.2 | 70 | 1800 | 72 | 22 | 6395228 | 76.8 | 753 | 69.2 | 678 | 6396228 | 79.1 | 776 | 71.3 | 698 |
| 64 | 2-5/8 | 8 | 218.9 | 147.0 | 70 | 1800 | 72 | 22 | 6395230 | 86.9 | 852 | 78.3 | 767 | 6396230 | 89.5 | 878 | 80.6 | 790 |
| 68 | 3-3/4 | 8-1/2 | 247.5 | 166.2 | 70 | 1800 | 72 | 22 | 6395231 | 97.3 | 954 | 87.7 | 859 | 6396231 | 100.3 | 983 | 90.3 | 885 |
| 72 | 3 | 9 | 277.2 | 186.1 | 70 | 1800 | 72 | 22 | 6395239 | 108.7 | 1065 | 97.9 | 959 | 6396234 | 111.9 | 1097 | 100.8 | 988 |
| 80 | 3-1/4 | 10 | 342.1 | 229.7 | 70 | 1800 | 72 | 22 | 6395236 | 132.7 | 1300 | 119.4 | 1170 | 6396236 | 136.6 | 1339 | 123.0 | 1205 |
| 88 | 3-5/8 | 11 | 412.5 | 276.9 | 70 | 1800 | 72 | 22 | 6395238 | 159.8 | 1566 | 143.3 | 1404 | 6396238 | 164.6 | 1613 | 147.6 | 1446 |
| 96 | 4 | 12 | 491.7 | 330.1 | 70 | 1800 | 72 | 22 | 6395240 | 188.8 | 1850 | 169.5 | 1661 | 6396240 | 194.4 | 1906 | 174.6 | 1711 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
