Capella

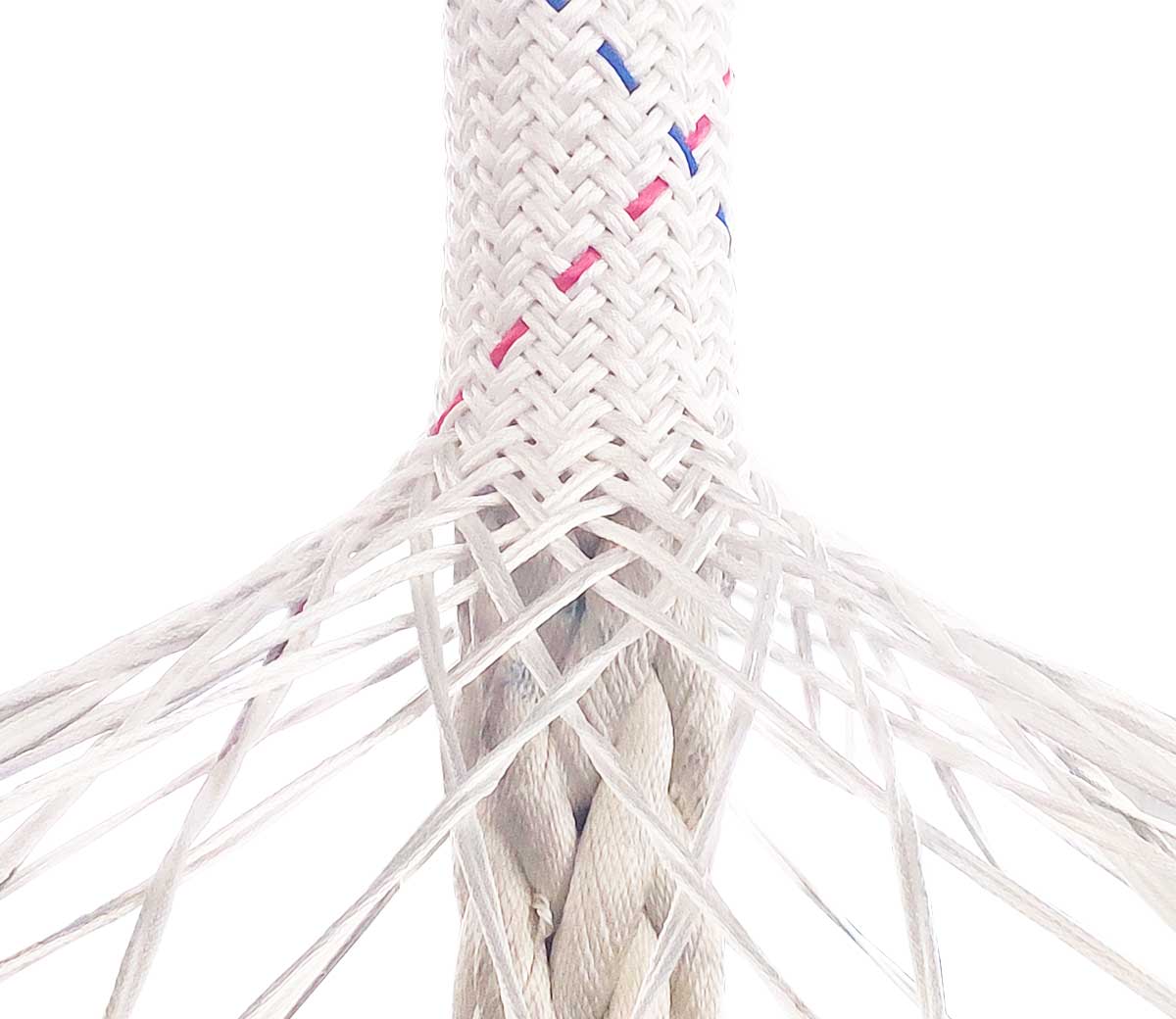

LABACUS Multi-Layer Rope （HMPE Core）
Capella LABACUS Multi-Layer Rope （HMPE Core） features multi-layer offshore rope with an HMPE core. Review the LABACUS core specification and size table for station-keeping requirements.
- Product family
- Offshore Mooring Rope
- Industry
- Offshore
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
HMPE core offshore rope
Capella LABACUS Multi-Layer Rope （HMPE Core） features multi-layer offshore rope with an HMPE core. Review the LABACUS core specification and size table for station-keeping requirements.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This special rope mainly used for offshore industry like platform station-keeping,the rope usually produced with multi-layer technology,including external jacket,filtration and inner core.The rope design and produce must be based on specific working condition.
Construction, Features and Applications
Construction:
Multi-Layer
Features:
Excellent abrasion resistance
Excellent chemical resistance
Excellent UV resistance
Excellent Tension fatigue
Bespoke diameter and length is available
Applications: Station keeping
Technical Specifications
Item Number |
Size (mm) |
Size(inch) |
Circ.(inch) |
Breaking Load (kg) |
Breaking Load(lb) |
6411322 |
63 |
2-1/2 |
7-3/4 |
255000 |
561000 |
6411352 |
71 |
2-3/4 |
8-3/4 |
326000 |
719000 |
6411392 |
80 |
3-1/8 |
9-7/8 |
408000 |
899000 |
6411432 |
90 |
3-1/2 |
11-1/8 |
510000 |
1123000 |
6411462 |
100 |
4 |
12-3/8 |
642000 |
1415000 |
6411482 |
106 |
4-1/4 |
13-1/8 |
724000 |
1595000 |
6411502 |
118 |
4-5/8 |
14-1/2 |
918000 |
2022000 |
6411532 |
132 |
5-1/4 |
16-3/8 |
1142000 |
2517000 |
6411562 |
150 |
5-7/8 |
18-1/2 |
1428000 |
3146000 |
6411582 |
160 |
6-1/4 |
19-7/8 |
1632000 |
3596000 |
6411602 |
170 |
6-3/4 |
21 |
1836000 |
4045000 |
6411622 |
180 |
7-1/8 |
22-3/8 |
2040000 |
4495000 |
6411632 |
190 |
7-1/2 |
23-1/2 |
2244000 |
4944000 |
6411642 |
200 |
7-7/8 |
24-3/4 |
2450000 |
5394000 |
6411652 |
212 |
8-3/8 |
26-1/4 |
2750000 |
6068000 |
6411662 |
224 |
8-7/8 |
27-3/4 |
3060000 |
6742000 |
6411672 |
236 |
9-3/8 |
29-1/4 |
3367000 |
7417000 |
6411682 |
250 |
10 |
31 |
3877000 |
8540000 |
6411692 |
265 |
10-1/2 |
32-3/4 |
4285000 |
9440000 |
6411702 |
280 |
11 |
34-5/8 |
4796000 |
10563000 |
Breaking-load values are not working load limits. Rope design, diameter, length, end termination, and application suitability require confirmation for the specific working conditions.
Technical Reference
Original manufacturer documents are retained for technical reference and may show original manufacturer branding or document names. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
