Capella

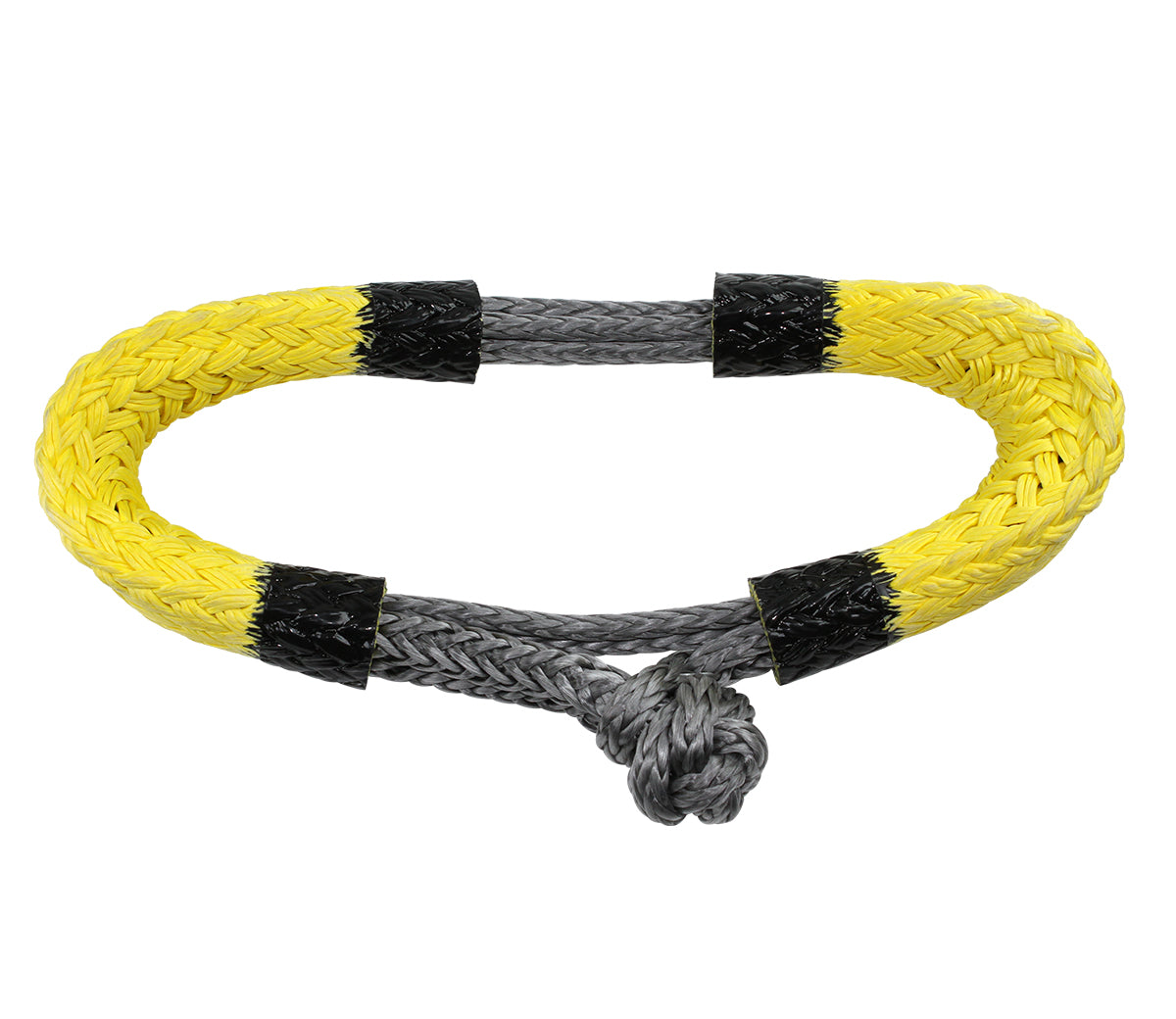

HOPEX SOFT SHACKLE
Capella HOPEX SOFT SHACKLE features soft shackle made from 12-strand UHMWPE rope. Review connection dimensions and source breaking-force data for the requested assembly.
- Product family
- Marine Soft Shackle
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
UHMWPE soft shackle
Capella HOPEX SOFT SHACKLE features soft shackle made from 12-strand UHMWPE rope. Review connection dimensions and source breaking-force data for the requested assembly.
Request a quote with the connection dimensions, required assembly specification and quantity. This is a non-stocked item; ratings, fit and lead time require confirmation.
Overview
HOPEX™ soft shackle offers superior strength, durability, and versatility. Made from high-modulus HMPE rope, it is lightweight, rust-resistant, and floats in water, which making them to be an ideal to instead of steel shackle.
Construction, Features and Applications
Ultra High Molecular Weight Polyethylene
Structure: 12-strand
Features:
Easy and quick to connect
Variable calculated breaking force
Connection to a wide range of synthetic ropes
Stronger than other steel-made shackles in weight Cost savings, Low weight, High performance
Smoother line movement and easier handling
No damage to mooring rope and ship
Technical Specifications
| Code | Dia | Minimum Breaking Strength | Work Load Limit | |||
| mm | inch | ton | kN | ton | kN | |
| 6420109 | 14 | 9/16 | 30 | 294 | 6 | 59 |
| 6420111 | 18 | 3/4 | 50 | 490 | 10 | 98 |
| 6420116 | 28 | 1-1/8 | 100 | 980 | 20 | 196 |
| 6420119 | 34 | 1-11/32 | 150 | 1470 | 30 | 294 |
| 6420122 | 40 | 1-5/8 | 200 | 1960 | 40 | 392 |
| 6420126 | 52 | 2-1/8 | 300 | 2940 | 60 | 588 |
| 6420131 | 68 | 2-3/4 | 500 | 4900 | 100 | 980 |
| 6420141 | 100 | 4-1/8 | 1000 | 9800 | 200 | 1960 |
| 6420148 | 120 | 5 | 1500 | 14700 | 300 | 2940 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
