Capella
HOPEX PRO
Capella HOPEX PRO features rope with a 12-strand UHMWPE load-bearing core and a braided UHMWPE jacket. Review the UHMWPE core and jacket specification for your rope application.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

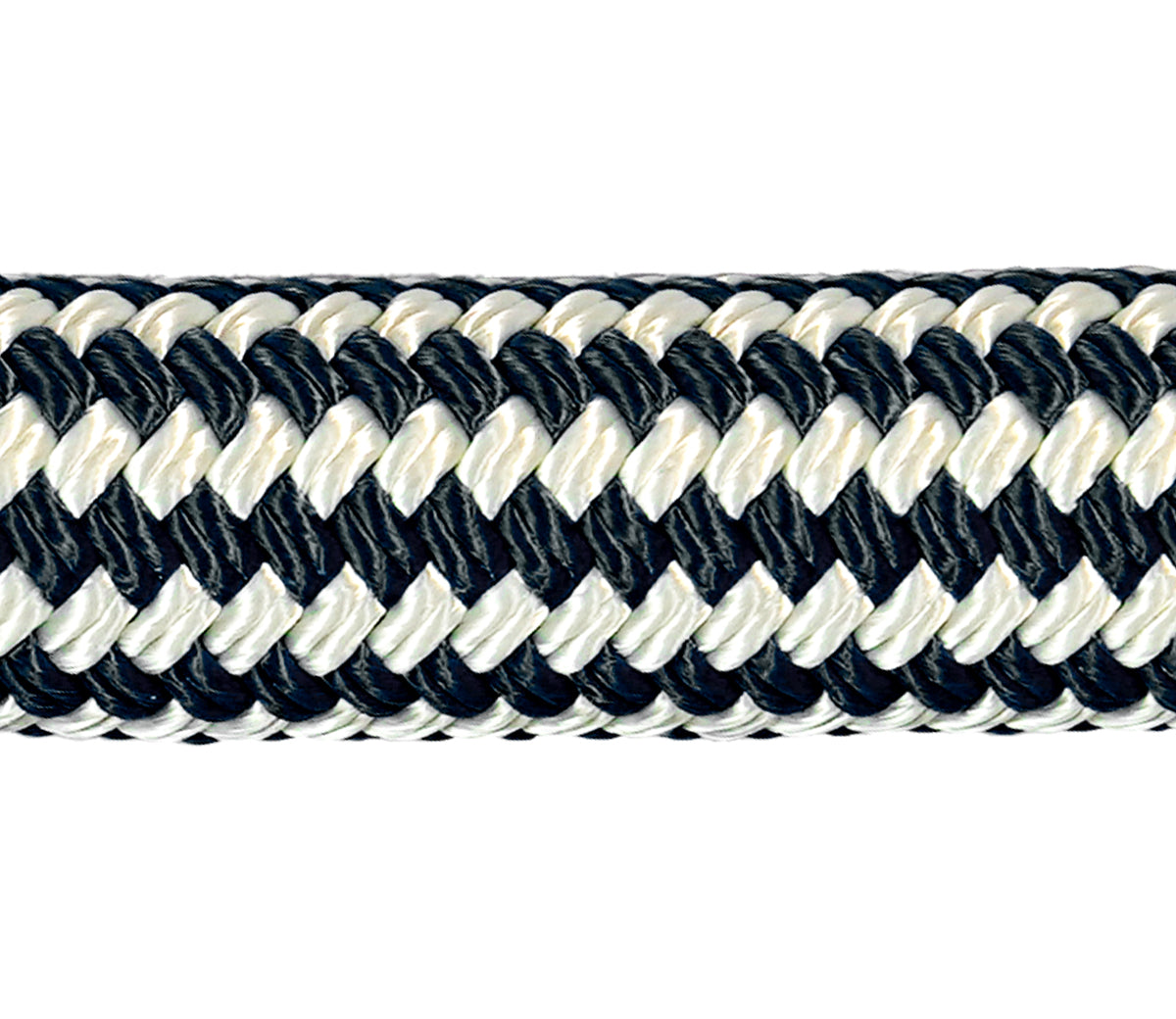

Jacketed UHMWPE rope
Capella HOPEX PRO features rope with a 12-strand UHMWPE load-bearing core and a braided UHMWPE jacket. Review the UHMWPE core and jacket specification for your rope application.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This combination makes the rope with extremely high strength & low stretch, 7 times stronger than steel ropes and 3 times stronger than polyester (on a weight by weight comparison). The braided jacket offers superior resistance to UV & chemicals, more wear resistance, excellent gripping properties and a torque - free construction.
Construction, Features and Applications
Ultra High Molecular Weight Polyethylene
UHMWPE 12-strand Load-bearing Core & UHMWPE Braided Jacket
Features
Specific Gravity: 0.97
Melting Point: 145℃
Breaking Elongation: < 4%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: 100%
Applications
Mooring Lines
Towing Lines
Winch Lines
Lifting Slings
Messenger Lines
Oceanographic Cables
Fishing Farming
Wind Farm Lines
Offshore Applications
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6114112 | 20 | 13/16 | 2-1/2 | 25.2 | 16.9 | 30.5 | 299 | 27.5 | 269 |
| 6114113 | 22 | 7/8 | 2-3/4 | 30.5 | 20.4 | 38.3 | 375 | 34.5 | 338 |
| 6114114 | 24 | 1 | 3 | 35.7 | 24.0 | 45.1 | 442 | 40.6 | 398 |
| 6114115 | 26 | 1-1/16 | 3-1/4 | 42.0 | 28.2 | 52.9 | 518 | 47.6 | 467 |
| 6114116 | 28 | 1-1/8 | 3-1/2 | 48.3 | 32.4 | 61.6 | 604 | 55.4 | 543 |
| 6114117 | 30 | 1-1/4 | 3-3/4 | 55.7 | 37.4 | 71.5 | 701 | 64.4 | 631 |
| 6114118 | 32 | 1-5/16 | 4 | 63.0 | 42.3 | 82.6 | 809 | 74.3 | 729 |
| 6114119 | 34 | 1-11/32 | 4-1/4 | 71.2 | 47.8 | 92.2 | 904 | 83.0 | 813 |
| 6114120 | 36 | 1-7/16 | 4-1/2 | 80.9 | 54.3 | 102.4 | 1004 | 92.2 | 903 |
| 6114121 | 38 | 1-1/2 | 4-3/4 | 89.4 | 60.0 | 116.2 | 1139 | 104.6 | 1025 |
| 6114122 | 40 | 1-5/8 | 5 | 98.7 | 66.3 | 127.9 | 1253 | 115.1 | 1128 |
| 6114123 | 44 | 1-3/4 | 5-1/2 | 120.8 | 81.1 | 154.9 | 1518 | 139.4 | 1366 |
| 6114125 | 48 | 2 | 6 | 142.8 | 95.9 | 180.7 | 1771 | 162.6 | 1594 |
| 6114126 | 52 | 2-1/8 | 6-1/2 | 168.0 | 112.8 | 215.5 | 2112 | 194.0 | 1901 |
| 6114127 | 56 | 2-1/4 | 7 | 194.3 | 130.4 | 245.9 | 2410 | 221.3 | 2169 |
| 6114128 | 60 | 2-1/2 | 7-1/2 | 222.6 | 149.4 | 282.8 | 2771 | 254.5 | 2494 |
| 6114130 | 64 | 2-5/8 | 8 | 252.0 | 169.2 | 323.3 | 3168 | 291.0 | 2852 |
| 6114131 | 68 | 2-3/4 | 8-1/2 | 285.6 | 191.7 | 366.0 | 3587 | 329.4 | 3228 |
| 6114133 | 72 | 3 | 9 | 322.4 | 216.4 | 407.4 | 3993 | 366.7 | 3593 |
| 6114134 | 76 | 3-1/8 | 9-1/2 | 357.0 | 239.7 | 451.2 | 4422 | 406.1 | 3980 |
| 6114136 | 80 | 3-1/4 | 10 | 393.8 | 264.4 | 506.2 | 4961 | 455.6 | 4465 |
| 6114138 | 88 | 3-5/8 | 11 | 472.5 | 317.2 | 600.5 | 5885 | 540.5 | 5296 |
| 6114140 | 96 | 4 | 12 | 556.5 | 373.6 | 704.9 | 6908 | 634.4 | 6217 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Manufacturer references are retained for technical context. Links labeled web page open the supplier product page in place of an unavailable PDF.
Ordering
Pricing, orderable lengths, and availability require confirmation. This listing is being prepared for quotation.
