Capella
HOPEX PLUS

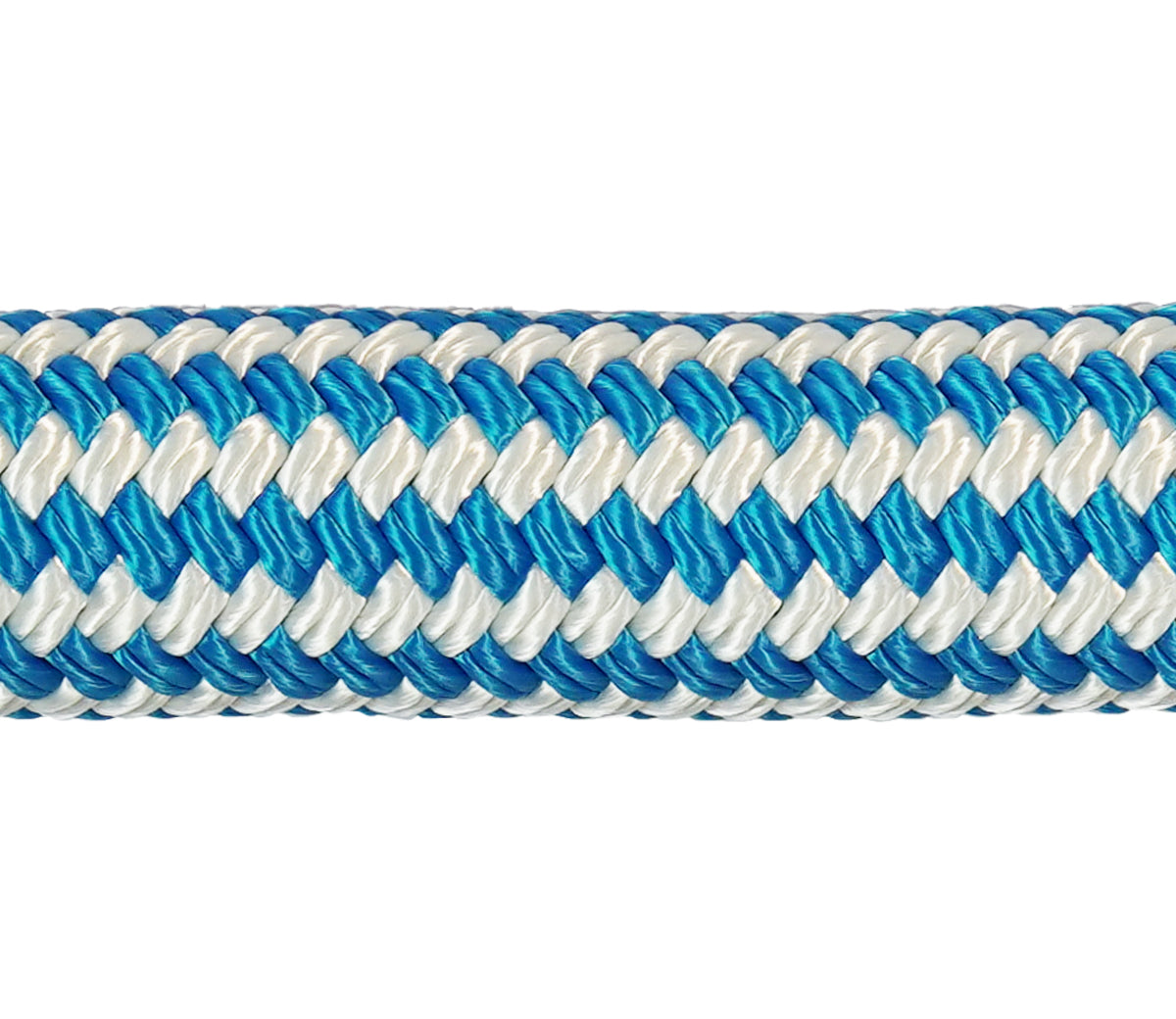

Capella HOPEX PLUS features rope with a 12-strand UHMWPE load-bearing core and a braided polyester jacket. Compare core and jacket construction for your marine rope specification.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
UHMWPE rope
Capella HOPEX PLUS features rope with a 12-strand UHMWPE load-bearing core and a braided polyester jacket. Compare core and jacket construction for your marine rope specification.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This structure is non - rotative and torque free construction, the rope will not kink, round and firm structure makes rope grip well. Also braided Jacket enhance rope with excellent wear resistance and increase the Structure: UHMWPE 12-strand Load-bearing Core & Polyester Braided Jacketservice life of the rope.
Construction, Features and Applications
UHMWPE &High Tenacity Polyester
UHMWPE 12-strand Load-bearing Core & Polyester Braided Jacket
Features
Specific Gravity: 0.97~1.10
Melting Point: 145℃/260℃
Breaking Elongation: 5%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications
Mooring Lines
Towing Lines
Lifting Slings
Winch Lines
Messenger Lines
Oceanographic Cables
Fishing Farming
Wind Farm Lines
Offshore Applications
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6113112 | 20 | 13/16 | 2-1/2 | 28.5 | 19.1 | 30.5 | 299 | 27.5 | 269 |
| 6113113 | 22 | 7/8 | 2-3/4 | 34.4 | 23.1 | 38.3 | 375 | 34.5 | 338 |
| 6113114 | 24 | 1 | 3 | 40.4 | 27.1 | 45.1 | 442 | 40.6 | 398 |
| 6113115 | 26 | 1-1/16 | 3-1/4 | 47.5 | 31.9 | 52.9 | 518 | 47.6 | 467 |
| 6113116 | 28 | 1-1/8 | 3-1/2 | 54.7 | 36.7 | 61.6 | 604 | 55.4 | 543 |
| 6113117 | 30 | 1-1/4 | 3-3/4 | 62.9 | 42.2 | 71.5 | 701 | 64.4 | 631 |
| 6113118 | 32 | 1-5/16 | 4 | 71.3 | 47.9 | 82.6 | 809 | 74.3 | 729 |
| 6113119 | 34 | 1-11/32 | 4-1/4 | 80.8 | 54.2 | 92.2 | 904 | 83.0 | 813 |
| 6113120 | 36 | 1-7/16 | 4-1/2 | 91.5 | 61.4 | 102.4 | 1004 | 92.2 | 903 |
| 6113121 | 38 | 1-1/2 | 4-3/4 | 101.1 | 67.9 | 116.8 | 1145 | 105.1 | 1030 |
| 6113122 | 40 | 1-5/8 | 5 | 111.7 | 75.0 | 127.9 | 1253 | 115.1 | 1128 |
| 6113123 | 44 | 1-3/4 | 5-1/2 | 136.6 | 91.7 | 154.9 | 1518 | 139.4 | 1366 |
| 6113125 | 48 | 2 | 6 | 161.6 | 108.5 | 180.7 | 1771 | 162.6 | 1594 |
| 6113126 | 52 | 2-1/8 | 6-1/2 | 190.1 | 127.6 | 215.5 | 2112 | 194.0 | 1901 |
| 6113127 | 56 | 2-1/4 | 7 | 219.8 | 147.6 | 245.9 | 2410 | 221.3 | 2169 |
| 6113128 | 60 | 2-1/2 | 7-1/2 | 251.9 | 169.1 | 282.8 | 2771 | 254.5 | 2494 |
| 6113130 | 64 | 2-5/8 | 8 | 285.1 | 191.4 | 323.3 | 3168 | 291.0 | 2852 |
| 6113131 | 68 | 2-3/4 | 8-1/2 | 323.2 | 217.0 | 366.0 | 3587 | 329.4 | 3228 |
| 6113133 | 72 | 3 | 9 | 364.8 | 244.9 | 407.4 | 3993 | 366.7 | 3593 |
| 6113134 | 76 | 3-1/8 | 9-1/2 | 403.9 | 271.2 | 451.2 | 4422 | 406.1 | 3980 |
| 6113136 | 80 | 3-1/4 | 10 | 445.5 | 299.1 | 506.2 | 4961 | 455.6 | 4465 |
| 6113138 | 88 | 3-5/8 | 11 | 534.6 | 358.9 | 600.5 | 5885 | 540.5 | 5296 |
| 6113140 | 96 | 4 | 12 | 629.6 | 422.7 | 704.9 | 6908 | 634.4 | 6217 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Manufacturer references are retained for technical context. Links labeled web page open the supplier product page in place of an unavailable PDF.
Ordering
Pricing, orderable lengths, and availability require confirmation. This listing is being prepared for quotation.
