Capella
HOPEX DUO
Capella HOPEX DUO features 12-strand UHMWPE rope with a high-tenacity polyester jacket. Review the DUO construction and size table for your marine rope requirements.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
UHMWPE marine rope
Capella HOPEX DUO features 12-strand UHMWPE rope with a high-tenacity polyester jacket. Review the DUO construction and size table for your marine rope requirements.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview

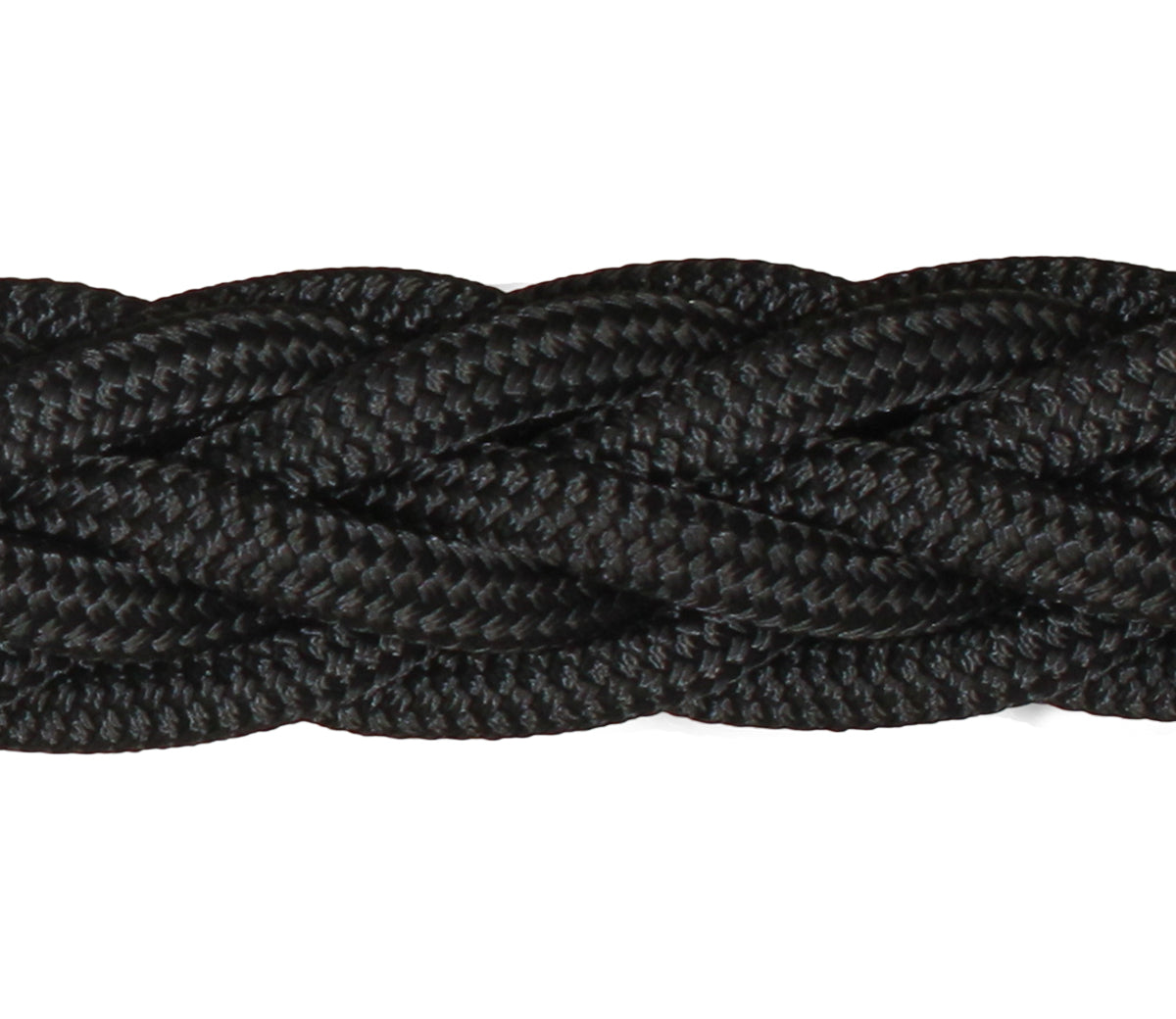

HOPEX DUO™ is a 12 construction rope made of UHMWPE fibers with high tenacity polyester jacket, offering exceptional properties. Its 12-strand braided design provides high strength, superior fatigue resistance, and creep resistance. Despite being a braided rope, it’s easy to splice.
Construction, Features and Applications
UHMWPE & High Tenacity Polyester
Structure: 12-Strand
Features
Specific Gravity: 0.97~1.10
Melting Point: 145℃ / 260℃
Breaking Elongation: < 5%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications
Mooring Lines
Towing Lines
Lifting Slings
Messenger Lines
Oceanographic Cables
Fishing Farming
Wind Farm Lines
Offshore Applications
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6113612 | 20 | 13/16 | 2-1/2 | 28.0 | 18.8 | 38.8 | 380 | 34.7 | 340 |
| 6113613 | 22 | 7/8 | 2-3/4 | 33.6 | 22.6 | 45.9 | 450 | 41.3 | 405 |
| 6113614 | 24 | 1 | 3 | 39.7 | 26.7 | 53.1 | 520 | 48.0 | 470 |
| 6113615 | 26 | 1-1/16 | 3-1/4 | 46.3 | 31.1 | 61.2 | 600 | 55.1 | 540 |
| 6113616 | 28 | 1-1/8 | 3-1/2 | 53.4 | 35.9 | 69.9 | 685 | 62.8 | 615 |
| 6113617 | 30 | 1-1/4 | 3-3/4 | 61.0 | 41.0 | 79.1 | 775 | 71.4 | 700 |
| 6113618 | 32 | 1-5/16 | 4 | 69.0 | 46.3 | 88.3 | 865 | 79.6 | 780 |
| 6113619 | 34 | 1-11/32 | 4-1/4 | 77.5 | 52.0 | 98.5 | 965 | 88.8 | 870 |
| 6113620 | 36 | 1-7/16 | 4-1/2 | 86.6 | 58.1 | 109.2 | 1070 | 98.5 | 965 |
| 6113621 | 38 | 1-1/2 | 4-3/4 | 96.1 | 64.5 | 119.9 | 1175 | 108.2 | 1060 |
| 6113622 | 40 | 1-5/8 | 5 | 106.1 | 71.2 | 131.1 | 1285 | 117.9 | 1155 |
| 6113623 | 44 | 1-3/4 | 5-1/2 | 127.4 | 85.5 | 155.6 | 1525 | 140.3 | 1375 |
| 6113625 | 48 | 2 | 6 | 150.6 | 101.1 | 181.1 | 1775 | 163.3 | 1600 |
| 6113626 | 52 | 2-1/8 | 6-1/2 | 175.7 | 118.0 | 208.7 | 2045 | 187.8 | 1840 |
| 6113627 | 56 | 2-1/4 | 7 | 202.6 | 136.0 | 237.8 | 2330 | 213.8 | 2095 |
| 6113628 | 60 | 2-1/2 | 7-1/2 | 231.4 | 155.4 | 268.9 | 2635 | 241.8 | 2370 |
| 6113630 | 64 | 2-5/8 | 8 | 262.0 | 175.9 | 301.0 | 2950 | 270.9 | 2655 |
| 6113631 | 68 | 2-3/4 | 8-1/2 | 294.4 | 197.7 | 335.2 | 3285 | 301.5 | 2955 |
| 6113633 | 72 | 3 | 9 | 328.6 | 220.6 | 370.9 | 3635 | 333.7 | 3270 |
| 6113634 | 76 | 3-1/8 | 9-1/2 | 364.6 | 244.8 | 408.2 | 4000 | 367.3 | 3600 |
| 6113636 | 80 | 3-1/4 | 10 | 402.4 | 270.2 | 446.4 | 4375 | 402.0 | 3940 |
| 6113638 | 88 | 3-5/8 | 11 | 483.4 | 324.5 | 528.6 | 5180 | 475.5 | 4660 |
| 6113640 | 96 | 4 | 12 | 571.4 | 383.6 | 616.3 | 6040 | 554.6 | 5435 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
