Capella
HOPEX 12x12
Capella HOPEX 12x12 features UHMWPE rope with a 12x12-strand construction. Compare 12x12 construction, diameters and manufacturer breaking-load data.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

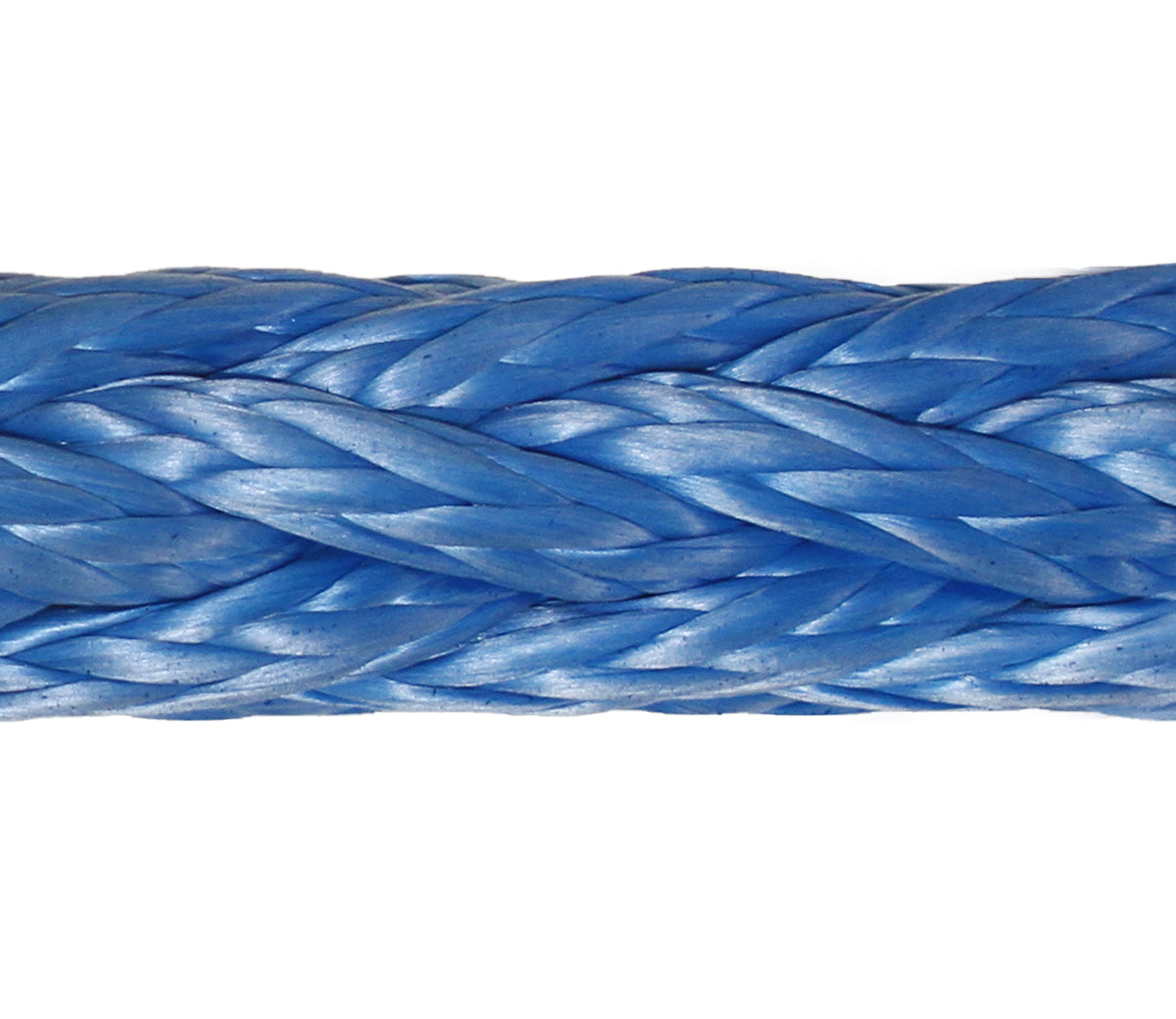

12x12 UHMWPE rope
Capella HOPEX 12x12 features UHMWPE rope with a 12x12-strand construction. Compare 12x12 construction, diameters and manufacturer breaking-load data.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
HOPEX™ 12x12 construction refers to a specific type of rope construction using ultra-high molecular weight polyethylene (UHMWPE) fiber. The HOPEX™ 12x12 rope is engineered with a unique 12-strand construction, offering enhanced strength and flexibility compared to the traditional HMPE 12 rope. This innovative design allows for a more balanced load distribution, significantly increasing the rope's overall durability and performance under stress.
Construction, Features and Applications
Ultra High Molecular Weight Polyethylene
Structure: 12x12-Strand
Features
Specific Gravity: 0.97
Melting Point: 145℃
Breaking Elongation: < 4%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0%
Wet-dry Strength Ratio: 100%
Applications
Mooring Lines
Towing Lines
Lifting Slings
Anchor Lines
Offshore lines
Pick Up Lines / Messenger Lines
Oceanographic Cables
Fishing Farming
Wind Farm Lines
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6101922 | 40 | 1-5/8 | 5 | 101.7 | 68.3 | 137.7 | 1349 | 124.0 | 1215 |
| 6101923 | 44 | 1-3/4 | 5-1/2 | 122.1 | 82.0 | 163.3 | 1600 | 147.4 | 1445 |
| 6101925 | 48 | 2 | 6 | 144.3 | 96.9 | 190.3 | 1865 | 171.4 | 1680 |
| 6101926 | 52 | 2-1/8 | 6-1/2 | 168.4 | 113.1 | 219.4 | 2150 | 196.9 | 1930 |
| 6101927 | 56 | 2-1/4 | 7 | 194.1 | 130.3 | 249.0 | 2440 | 224.5 | 2200 |
| 6101928 | 60 | 2-1/2 | 7-1/2 | 221.7 | 148.8 | 282.7 | 2770 | 254.1 | 2490 |
| 6101930 | 64 | 2-5/8 | 8 | 251.0 | 168.5 | 316.3 | 3100 | 284.2 | 2785 |
| 6101931 | 68 | 2-3/4 | 8-1/2 | 282.0 | 189.3 | 352.0 | 3450 | 316.3 | 3100 |
| 6101933 | 72 | 3 | 9 | 314.8 | 211.3 | 388.8 | 3810 | 350.5 | 3435 |
| 6101934 | 76 | 3-1/8 | 9-1/2 | 349.5 | 234.6 | 428.6 | 4200 | 385.7 | 3780 |
| 6101936 | 80 | 3-1/4 | 10 | 385.5 | 258.8 | 468.9 | 4595 | 423.5 | 4150 |
| 6101938 | 88 | 3-5/8 | 11 | 463.2 | 311.0 | 555.1 | 5440 | 499.0 | 4890 |
| 6101940 | 96 | 4 | 12 | 547.6 | 367.6 | 646.9 | 6340 | 581.6 | 5700 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
