Capella
HMPE 12 Braided Rope

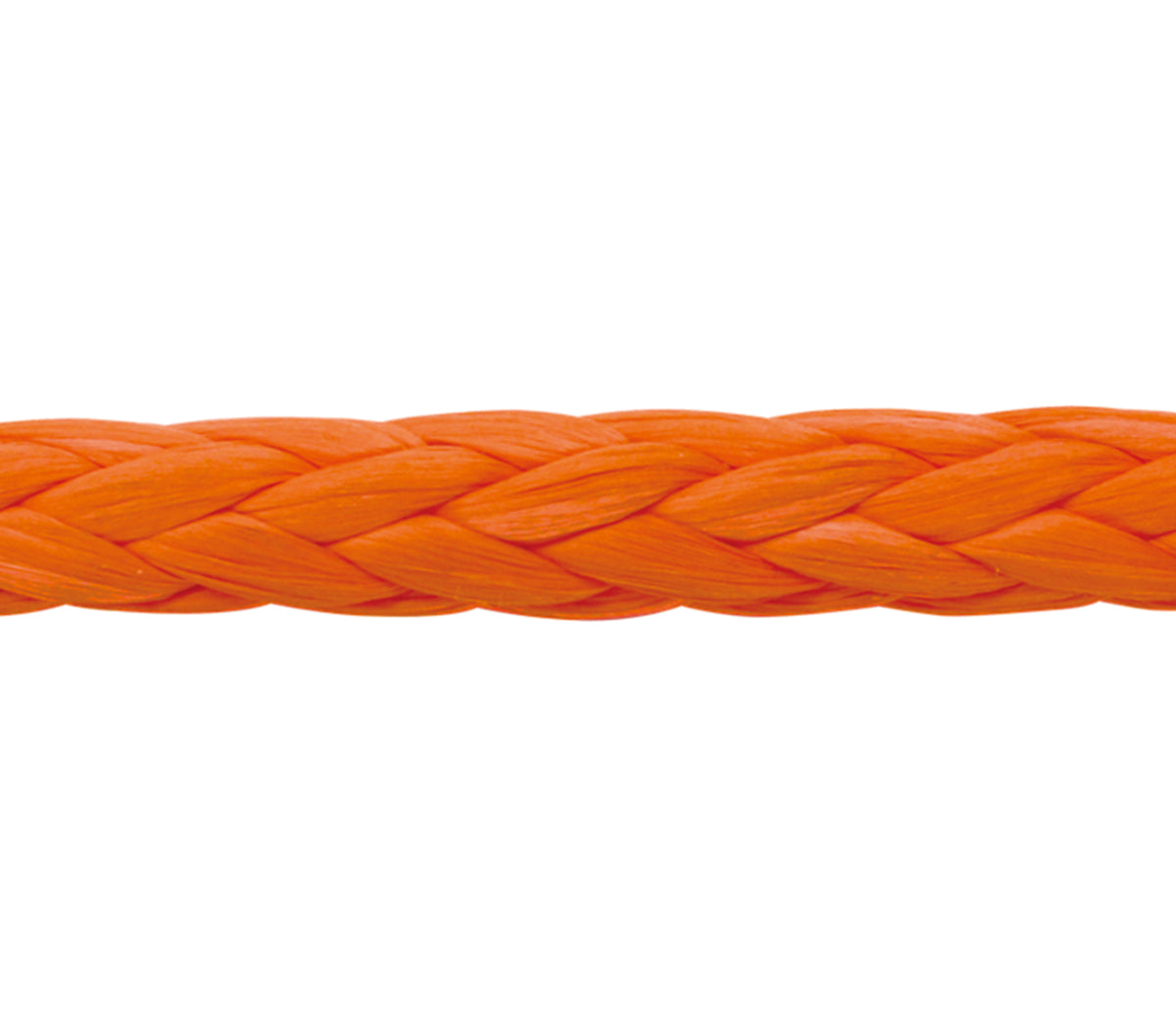

Capella HMPE 12 Braided Rope features 12-strand single-braid rope made from UHMWPE fibers. Review the diameter, length and weight table for the requested HMPE rope specification.
- Product family
- Commercial Fishing Rope
- Industry
- Commercial Fishing
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
HMPE braided fishing rope
Capella HMPE 12 Braided Rope features 12-strand single-braid rope made from UHMWPE fibers. Review the diameter, length and weight table for the requested HMPE rope specification.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
This rope is superior flex fatigue and wear resistance because of our special method treatment, extremely low stretch and high breaking strength, great replacement of wire steel rope.
Where a very strong, low stretch and light lifting or pulling line is required.
Construction, Features and Applications
Construction:
12 Single Braid of 100% UHMWPE fibres
Braid composed of 12 individual twisted yarns
Features:
Excellent abrasion resistance
Excellent dielectric properties
Very low stretch
Good dynamic loading
Flexible, torque free
Spliceable
Applications:
Halyards and sheets for running rigging
Stringing lines, winch lines, sling and fall lines
Topping lifts and chokers
Technical Specifications
| Item Number | Size（mm） | Circ.（mm） | Length（m） | Weight （kg/220m） | Breaking Load （kg） |
| 7114011 | 6 | 19 | 220 | 5.2 | 3776 |
| 7114021 | 8 | 26 | 220 | 8.8 | 6633 |
| 7114031 | 10 | 32 | 220 | 13.5 | 10408 |
| 7114041 | 12 | 38 | 220 | 19.2 | 15000 |
| 7114051 | 14 | 45 | 220 | 25.8 | 20408 |
| 7114061 | 16 | 51 | 220 | 33.3 | 26531 |
| 7114071 | 18 | 58 | 220 | 41.8 | 31633 |
| 7114081 | 20 | 64 | 220 | 51.2 | 38776 |
| 7114091 | 22 | 70 | 220 | 61.9 | 45918 |
| 7114101 | 24 | 77 | 220 | 72.9 | 53061 |
| 7114111 | 26 | 83 | 220 | 84.5 | 61224 |
| 7114121 | 28 | 90 | 220 | 97.9 | 69388 |
| 7114131 | 30 | 96 | 220 | 111 | 78571 |
| 7114141 | 32 | 102 | 220 | 126 | 88776 |
| 7114151 | 34 | 109 | 220 | 145 | 97959 |
| 7114161 | 36 | 115 | 220 | 158 | 106122 |
| 7114171 | 38 | 122 | 220 | 175 | 118367 |
| 7114181 | 40 | 128 | 220 | 193 | 128571 |
| 7114191 | 44 | 141 | 220 | 233 | 148980 |
| 7114201 | 48 | 154 | 220 | 275 | 173469 |
| 7114211 | 52 | 166 | 220 | 320 | 201020 |
| 7114221 | 56 | 179 | 220 | 370 | 230612 |
| 7114231 | 60 | 192 | 220 | 424 | 258163 |
| 7114241 | 64 | 205 | 220 | 484 | 289796 |
| 7114251 | 68 | 218 | 220 | 545 | 323469 |
| 7114261 | 72 | 230 | 220 | 611 | 359184 |
| 7114271 | 76 | 243 | 220 | 680 | 396939 |
| 7114281 | 80 | 256 | 220 | 755 | 438776 |
| 7114291 | 88 | 282 | 220 | 917 | 530612 |
| 7114301 | 96 | 307 | 220 | 1090 | 630612 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation for the requested configuration before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show supplier branding. Confirm the applicable document revision and specifications for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for your required diameter, length or spool weight, color, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
