Capella
FAST SLING Multi-Leg Lifting sling (Eye& Eye)
Capella FAST SLING Multi-Leg Lifting sling (Eye& Eye) features multi-leg UHMWPE rope sling using eye-and-eye fabricated legs. Compare the two-, three- and four-leg tables and confirm the assembly angle and design factor.
- Product family
- Lifting Sling
- Industry
- Lifting
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Multi-leg eye and eye sling
Capella FAST SLING Multi-Leg Lifting sling (Eye& Eye) features multi-leg UHMWPE rope sling using eye-and-eye fabricated legs. Compare the two-, three- and four-leg tables and confirm the assembly angle and design factor.
For a quotation, specify the required capacity, sling length, hitch or leg configuration, fittings and quantity. This is a non-stocked product; confirm the exact assembly and applicable ratings before ordering.
Overview
FAST sling is made of UHMWPE rope with high flex fatigue and abrasion resistance. As
an excellent solution to customization requirements , it offers all the benefits of a wire
rope sling, but the same size Fast-sling weighs only one seventh compared with the
wire rope.
Construction, Features and Applications
Eye & Eye spliced with abrasion resistant eye protection
Features/Benefits :
Floats
Soft Hand
Low Creep
Easy Splicing
Lowest Stretch
Torque Free
Highest Strength
Applications:
Lifting Slings
Winch Lines
Vessel Mooring
Aerial Retrieval Lines
Inland River Barge Lines
Emergency Tow Packages
Replacement for Wire Rope
Technical Specifications
Design Factor is 5
WLL(Work Load Limit) of each multi-leg is 5:1
larger sizes available upon request

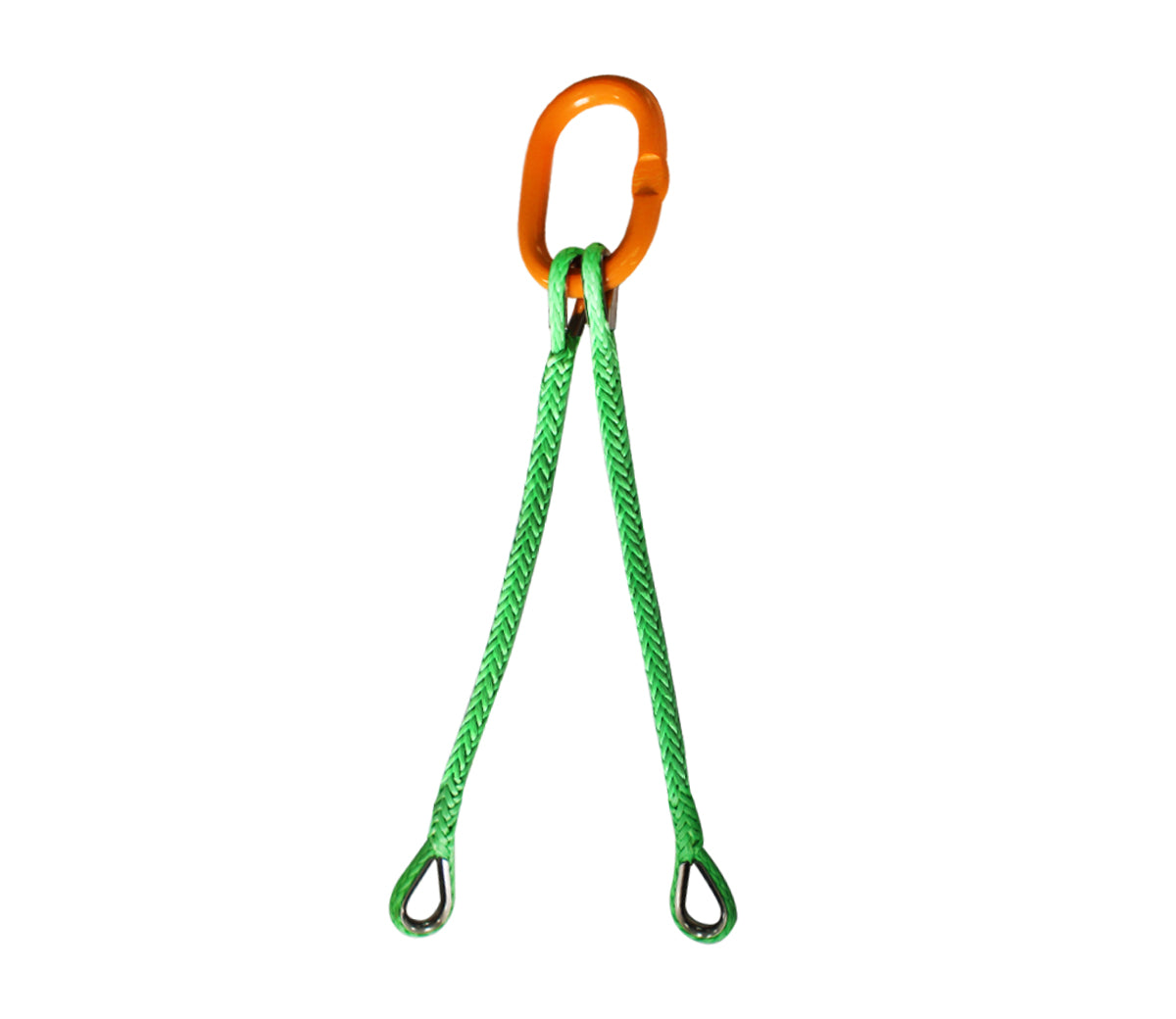

2-Leg
| Item No. | 2-Leg Lifting Sling - Using Eye-to-Eye Fabricated Legs | ||||
| Rope dia. Used | Minimum Sling Length | Assembly Capacity Rating 5:1 WLL | |||
| 60° Angle | 45° Angle | 30° Angle | |||
| mm | m | tonnes | tonnes | tonnes | |
| 5211043 | 12 | 1.3 | 4.9 | 4 | 2.8 |
| 5211063 | 16 | 1.7 | 8.1 | 6.6 | 4.7 |
| 5211073 | 18 | 2 | 10.8 | 8.8 | 6.2 |
| 5211093 | 22 | 2.4 | 14.5 | 11.9 | 8.4 |
| 5211103 | 24 | 2.7 | 17.3 | 14.1 | 10 |
| 5211123 | 28 | 3.1 | 23.1 | 18.9 | 13.3 |
| 5211133 | 30 | 3.4 | 25.9 | 21.2 | 15 |
| 5211143 | 32 | 3.5 | 30.8 | 25.2 | 17.8 |
| 5211153 | 36 | 4 | 34.7 | 28.4 | 20.1 |

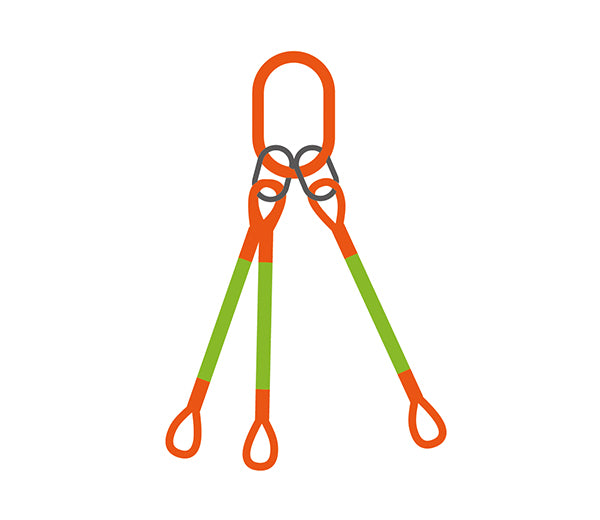

3-Leg
| Item No. | 3-Leg Lifting Sling - Using Eye-to-Eye Fabricated Legs | ||||
| Rope dia. Used | Minimum Sling Length | Assembly Capacity Rating 5:1 WLL | |||
| 60° Angle | 45° Angle | 30° Angle | |||
| mm | m | tonnes | tonnes | tonnes | |
| 5211044 | 12 | 1.3 | 7.4 | 6.0 | 4.3 |
| 5211064 | 16 | 1.7 | 12.1 | 9.9 | 7.0 |
| 5211074 | 18 | 2.0 | 16.2 | 13.2 | 9.3 |
| 5211094 | 22 | 2.4 | 21.8 | 17.8 | 12.6 |
| 5211104 | 24 | 2.7 | 25.9 | 21.2 | 15.0 |
| 5211124 | 28 | 3.1 | 34.7 | 28.3 | 20.0 |
| 5211134 | 30 | 3.4 | 38.9 | 31.8 | 22.5 |
| 5211144 | 32 | 3.5 | 46.2 | 37.7 | 26.7 |
| 5211154 | 36 | 4.0 | 52.1 | 42.6 | 30.1 |

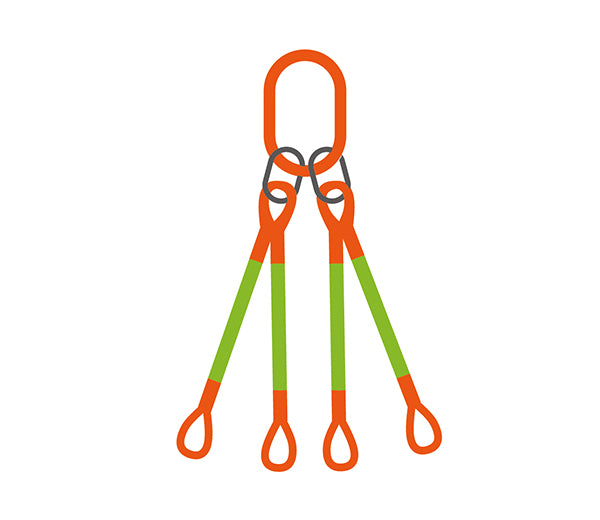

4-Leg
| Item No. | 4-Leg Lifting Sling - Using Eye-to-Eye Fabricated Legs | ||||
| Rope dia. Used | Minimum Sling Length | Assembly Capacity Rating 5:1 WLL | |||
| 60° Angle | 45° Angle | 30° Angle | |||
| mm | m | tonnes | tonnes | tonnes | |
| 5211045 | 12 | 1.3 | 9.8 | 8.0 | 5.7 |
| 5211065 | 16 | 1.7 | 16.1 | 13.2 | 9.3 |
| 5211075 | 18 | 2.0 | 21.5 | 17.6 | 12.4 |
| 5211095 | 22 | 2.4 | 29.1 | 23.8 | 16.8 |
| 5211105 | 24 | 2.7 | 34.6 | 28.2 | 20.0 |
| 5211125 | 28 | 3.1 | 46.2 | 37.7 | 26.7 |
| 5211135 | 30 | 3.4 | 51.9 | 42.4 | 30.0 |
| 5211145 | 32 | 3.5 | 61.7 | 50.3 | 35.6 |
| 5211155 | 36 | 4.0 | 69.5 | 56.7 | 40.1 |
Application and Rating Confirmation
Breaking-load values are not working load limits. Confirm the rated working load limit, design factor, hitch, sling angle, number of legs, end fittings, and application suitability for the exact assembly before use. Manufacturer table values and claims are retained as source data, not independent Capella certification.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for the required capacity, dimensions, length, quantity, hitch or leg configuration, end fittings, and application. Pricing, availability, and lead time are confirmed with the quotation.
