Capella
DURA-PP 12
Capella DURA-PP 12 features 12-strand rope made from high-tenacity polypropylene. Compare the DURA-PP 12 construction and size-specific marine rope data.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

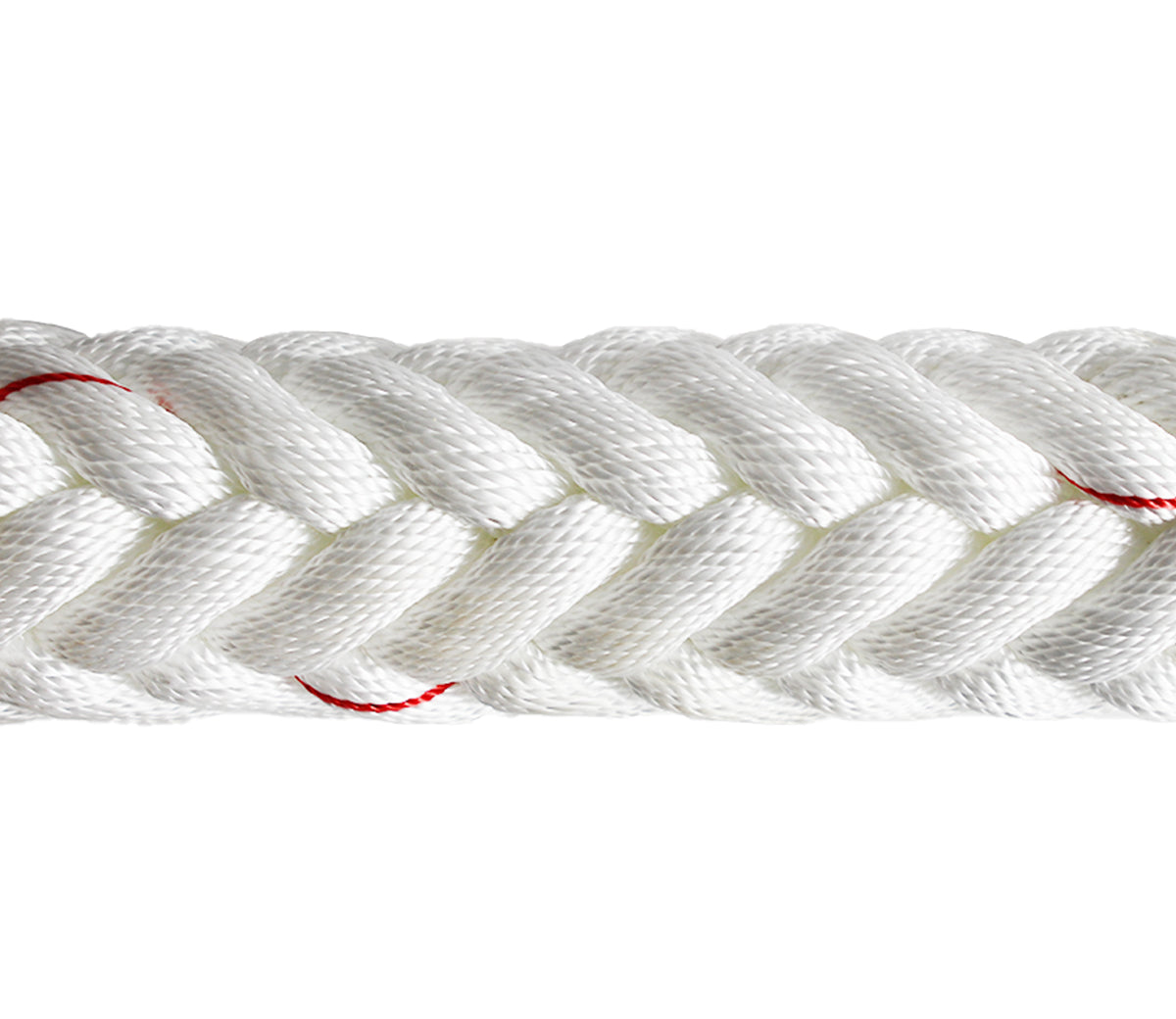

12-strand polypropylene rope
Capella DURA-PP 12 features 12-strand rope made from high-tenacity polypropylene. Compare the DURA-PP 12 construction and size-specific marine rope data.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Light weight mooring line, very easy to handle, keep same strength in wet or dry environment.
Construction, Features and Applications
High Tenacity Polypropylene
Structure: 12-strand
Features:
Specific Gravity: 0.91~0.93
Melting Point: 165℃
Breaking Elongation: 12%~20%
Abrasion Resistance: Normal
Chemical Resistance: Very Good
UV Resistance: Normal
Water Absorption: 0.01%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications:
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
Technical Specifications
| Dia | Circ. | Weight | Code | 8-strand | Code | 12-strand | ||||||||
| Unspliced MBL | LDBF, Spliced MBL | Unspliced MBL | LDBF, Spliced MBL | |||||||||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | ton | kN | ton | kN | ||
| 24 | 1 | 3 | 26.0 | 17.4 | 6105514 | 7.7 | 75 | 6.9 | 68 | 6105614 | 8.2 | 80 | 7.3 | 72 |
| 28 | 1-1/8 | 3-1/2 | 35.4 | 23.7 | 6105516 | 10.2 | 100 | 9.2 | 90 | 6105616 | 10.8 | 106 | 9.7 | 95 |
| 30 | 1-1/4 | 3-3/4 | 40.7 | 27.3 | 6105517 | 11.4 | 112 | 10.3 | 101 | 6105617 | 12.0 | 118 | 10.8 | 106 |
| 32 | 1-5/16 | 4 | 46.3 | 31.1 | 6105518 | 13.5 | 132 | 12.1 | 119 | 6105618 | 14.3 | 140 | 12.9 | 126 |
| 36 | 1-1/2 | 4-1/2 | 58.6 | 39.3 | 6105520 | 16.3 | 160 | 14.7 | 144 | 6105620 | 17.3 | 170 | 15.6 | 153 |
| 40 | 1-5/8 | 5 | 72.3 | 48.5 | 6105522 | 20.4 | 200 | 18.4 | 180 | 6105622 | 21.4 | 210 | 19.3 | 189 |
| 44 | 1-3/4 | 5-1/2 | 87.5 | 58.7 | 6105523 | 24.1 | 236 | 21.6 | 212 | 6105623 | 25.5 | 250 | 23.0 | 225 |
| 48 | 2 | 6 | 104.0 | 69.8 | 6105525 | 28.6 | 280 | 25.7 | 252 | 6105625 | 30.6 | 300 | 27.6 | 270 |
| 52 | 2-1/8 | 6-1/2 | 122.0 | 81.8 | 6105526 | 34.2 | 335 | 30.8 | 302 | 6105626 | 36.2 | 355 | 32.7 | 320 |
| 56 | 2-1/4 | 7 | 142.0 | 95.2 | 6105527 | 38.3 | 375 | 34.5 | 338 | 6105627 | 40.8 | 400 | 36.7 | 360 |
| 60 | 2-1/2 | 7-1/2 | 163.0 | 109.3 | 6105528 | 43.4 | 425 | 39.1 | 383 | 6105628 | 45.9 | 450 | 41.3 | 405 |
| 64 | 2-5/8 | 8 | 185.0 | 124.1 | 6105530 | 48.5 | 475 | 43.7 | 428 | 6105630 | 51.0 | 500 | 45.9 | 450 |
| 72 | 3 | 9 | 234.0 | 157.0 | 6105533 | 61.2 | 600 | 55.1 | 540 | 6105633 | 64.3 | 630 | 57.9 | 567 |
| 80 | 3-1/4 | 10 | 289.0 | 193.8 | 6105536 | 76.5 | 750 | 68.9 | 675 | 6105636 | 81.6 | 800 | 73.5 | 720 |
| 88 | 3-5/8 | 11 | 350.0 | 234.8 | 6105538 | 91.8 | 900 | 82.7 | 810 | 6105638 | 96.9 | 950 | 87.2 | 855 |
| 96 | 4 | 12 | 417.0 | 279.7 | 6105540 | 108.2 | 1060 | 97.3 | 954 | 6105640 | 114.3 | 1120 | 102.9 | 1008 |
| 104 | 4-1/4 | 13 | 489.0 | 328.0 | 6105542 | 127.6 | 1250 | 114.8 | 1125 | 6105642 | 134.7 | 1320 | 121.2 | 1188 |
| 112 | 4-5/8 | 14 | 567.0 | 380.3 | 6105545 | 142.9 | 1400 | 128.6 | 1260 | 6105645 | 153.1 | 1500 | 137.8 | 1350 |
| 120 | 5 | 15 | 651.0 | 436.0 | 6105548 | 163.3 | 1600 | 146.9 | 1440 | 6105648 | 173.5 | 1700 | 156.1 | 1530 |
| 128 | 5-1/4 | 16 | 741.0 | 497.0 | 6105549 | 193.9 | 1900 | 174.5 | 1710 | 6105649 | 204.1 | 2000 | 183.7 | 1800 |
| 136 | 5-5/8 | 17 | 836.0 | 560.7 | 6105551 | 216.3 | 2120 | 194.7 | 1908 | 6105651 | 228.6 | 2240 | 205.7 | 2016 |
| 144 | 6 | 18 | 937.0 | 628.5 | 6105552 | 240.8 | 2360 | 216.7 | 2124 | 6105652 | 255.1 | 2500 | 229.6 | 2250 |
| 160 | 6-5/8 | 20 | 1160.0 | 778.0 | 6105555 | 285.7 | 2800 | 257.1 | 2520 | 6105655 | 306.1 | 3000 | 275.5 | 2700 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
