Capella
DURA-PES DOUBLE BRAID
Capella DURA-PES DOUBLE BRAID features double-braid rope made from high-tenacity polyester. Compare the core-and-cover construction and manufacturer size table.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

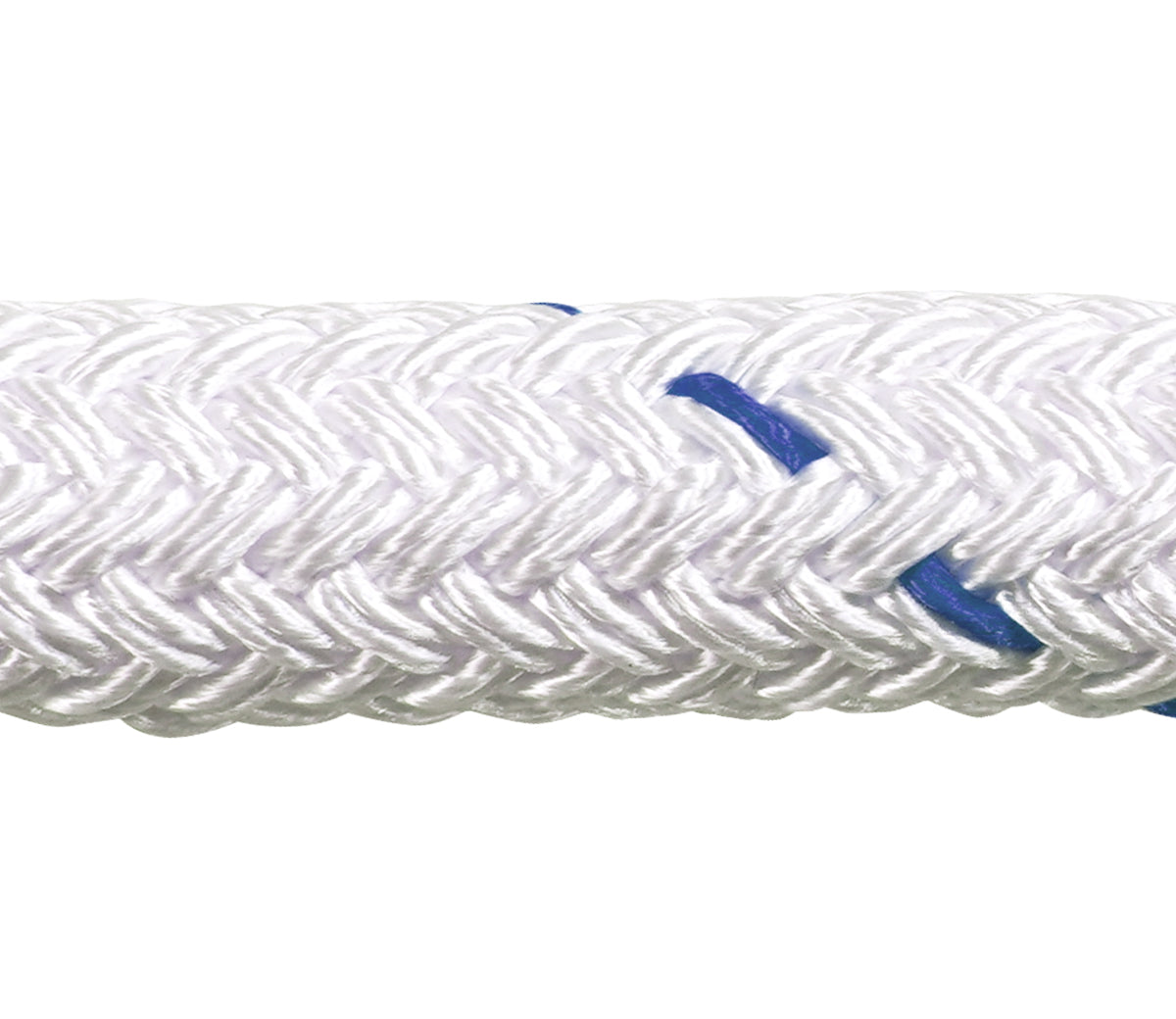

Double-braid polyester rope
Capella DURA-PES DOUBLE BRAID features double-braid rope made from high-tenacity polyester. Compare the core-and-cover construction and manufacturer size table.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
Leader among all popular fibers for weatherability characteristics , polyester exhibits excellent abrasion resistance and strength . Good resistance to UV light and most common chemicals . This rope offers excellent gripping properties and a torque - free construction .
Construction, Features and Applications
High Tenacity Polyester
Structure: Double Braid
Features
Specific Gravity: 1.38~1.44
Melting Point: 250~260℃
Breaking Elongation: 20% ~ 30%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 0.4%
Wet-dry Strength Ratio: Dry ≈ Wet
Applications
Anchor Lines
Dock Lines
Shock Lines
Mooring Lines
Towing Lines
Winch Lines
Lifting Slings
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6104713 | 22 | 7/8 | 2-3/4 | 38.6 | 25.9 | 10.4 | 102 | 9.4 | 92 |
| 6104714 | 24 | 1 | 3 | 45.9 | 30.8 | 12.3 | 121 | 11.1 | 109 |
| 6104715 | 26 | 1-1/16 | 3-1/4 | 53.9 | 36.2 | 14.4 | 141 | 12.9 | 127 |
| 6104716 | 28 | 1-1/8 | 3-1/2 | 62.5 | 42.0 | 16.6 | 163 | 15.0 | 147 |
| 6104717 | 30 | 1-1/4 | 3-3/4 | 71.7 | 48.1 | 19.0 | 186 | 17.1 | 167 |
| 6104718 | 32 | 1-5/16 | 4 | 81.6 | 54.8 | 21.4 | 210 | 19.3 | 189 |
| 6104720 | 36 | 1-1/2 | 4-1/2 | 103.0 | 69.2 | 26.9 | 264 | 24.2 | 238 |
| 6104722 | 40 | 1-5/8 | 5 | 128.0 | 85.9 | 33.1 | 324 | 29.8 | 292 |
| 6104723 | 44 | 1-3/4 | 5-1/2 | 154.0 | 103.4 | 39.7 | 389 | 35.7 | 350 |
| 6104725 | 48 | 2 | 6 | 184.0 | 123.5 | 46.9 | 460 | 42.2 | 414 |
| 6104726 | 52 | 2-1/8 | 6-1/2 | 216.0 | 145.0 | 54.8 | 537 | 49.3 | 483 |
| 6104727 | 56 | 2-1/4 | 7 | 250.0 | 167.8 | 63.1 | 618 | 56.8 | 556 |
| 6104728 | 60 | 2-1/2 | 7-1/2 | 287.0 | 192.7 | 72.1 | 707 | 64.9 | 636 |
| 6104730 | 64 | 2-5/8 | 8 | 326.0 | 218.9 | 81.6 | 800 | 73.5 | 720 |
| 6104733 | 72 | 3 | 9 | 413.0 | 277.3 | 102.0 | 1000 | 91.8 | 900 |
| 6104736 | 80 | 3-1/4 | 10 | 510.0 | 342.4 | 125.5 | 1230 | 113.0 | 1107 |
| 6104738 | 88 | 3-5/8 | 11 | 617.0 | 414.2 | 151.0 | 1480 | 135.9 | 1332 |
| 6104740 | 96 | 4 | 12 | 735.0 | 493.5 | 178.6 | 1750 | 160.7 | 1575 |
| 6104742 | 104 | 4-1/4 | 13 | 862.0 | 578.7 | 208.2 | 2040 | 187.3 | 1836 |
| 6104745 | 112 | 4-5/8 | 14 | 1000.0 | 671.4 | 239.8 | 2350 | 215.8 | 2115 |
| 6104748 | 120 | 5 | 15 | 1150.0 | 772.1 | 274.5 | 2690 | 247.0 | 2421 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
