Capella
DURA - AR PLUS

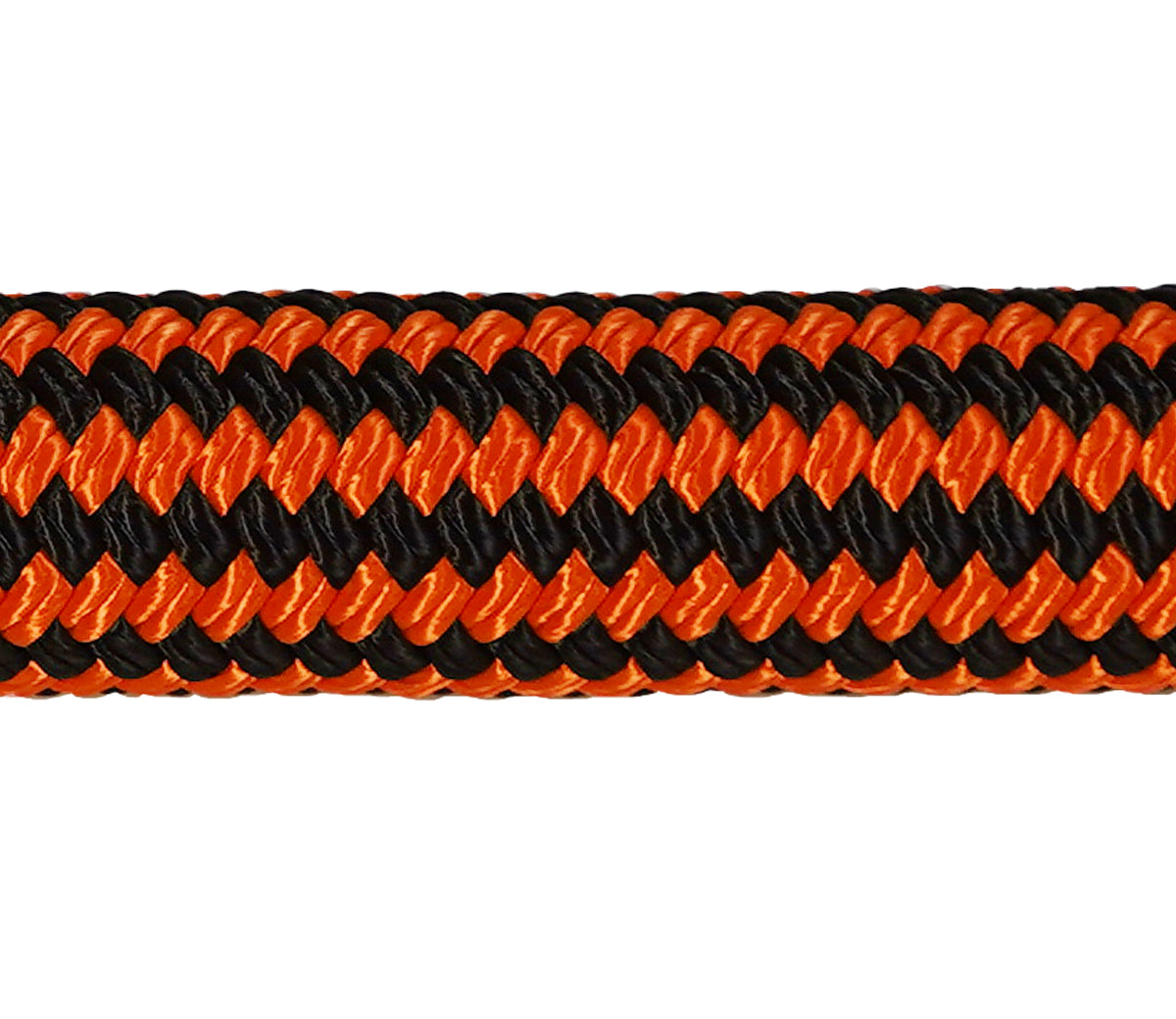

Capella DURA - AR PLUS features rope with a 12-strand aramid load-bearing core and a braided polyester jacket. Review aramid-core and polyester-jacket construction for your specification.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Aramid-core rope
Capella DURA - AR PLUS features rope with a 12-strand aramid load-bearing core and a braided polyester jacket. Review aramid-core and polyester-jacket construction for your specification.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
It's a high performance and best rope used for extreme high temperature working condition.It is fatigue and abrasion resistant, with the ability to absorb dynamic loads for long periods of time. The jacket of this construction can be repaired and replaced to offer longer service lifetime.
Construction, Features and Applications
Excellent Heat Resistance Aramid & Polyester
Aramid 12-strand Load-bearing Core & Polyester Braided Jacket
Features
Specific Gravity: 1.44
Melting Point: 500℃/260℃
Breaking Elongation: < 3%
Abrasion Resistance: Very Good
Chemical Resistance: Very Good
UV Resistance: Very Good
Water Absorption: 4%
Wet-dry Strength Ratio: Dry > Wet
Applications
Lifting Slings
Fire Mooring Lines
Winch Lines
Fiber Optic Cables
Technical Specifications
| Code | Dia | Circ. | Weight | Unspliced MBL | LDBF, Spliced MBL | ||||
| mm | inch | inch | kg/100m | lbs/100ft | ton | kN | ton | kN | |
| 6112112 | 20 | 13/16 | 2-1/2 | 34.6 | 23.2 | 37.2 | 365 | 33.5 | 328 |
| 6112114 | 24 | 1 | 3 | 49.5 | 33.2 | 53.8 | 527 | 48.4 | 475 |
| 6112116 | 28 | 1-1/8 | 3-1/2 | 67.1 | 45.0 | 73.4 | 719 | 66.1 | 647 |
| 6112118 | 32 | 1-5/16 | 4 | 85.6 | 57.4 | 90.0 | 882 | 81.0 | 794 |
| 6112119 | 34 | 1-11/32 | 4-1/4 | 95.8 | 64.3 | 95.1 | 932 | 85.6 | 839 |
| 6112120 | 36 | 1-7/16 | 4-1/2 | 106.7 | 71.6 | 108.6 | 1064 | 98.7 | 967 |
| 6112121 | 38 | 1-1/2 | 4-3/4 | 116.9 | 78.4 | 121.0 | 1186 | 108.9 | 1067 |
| 6112122 | 40 | 1-5/8 | 5 | 126.8 | 85.1 | 135.5 | 1328 | 122.0 | 1195 |
| 6112123 | 44 | 1-3/4 | 5-1/2 | 162.2 | 108.9 | 161.4 | 1582 | 145.3 | 1424 |
| 6112125 | 48 | 2 | 6 | 189.4 | 127.2 | 185.3 | 1816 | 166.8 | 1634 |
| 6112126 | 52 | 2-1/8 | 6-1/2 | 215.0 | 144.4 | 213.3 | 2090 | 192.0 | 1881 |
| 6112127 | 56 | 2-1/4 | 7 | 252.9 | 169.8 | 245.8 | 2409 | 221.2 | 2168 |
| 6112128 | 60 | 2-1/2 | 7-1/2 | 277.1 | 186.0 | 262.4 | 2572 | 236.2 | 2314 |
| 6112130 | 64 | 2-5/8 | 8 | 307.4 | 206.4 | 291.0 | 2852 | 261.9 | 2567 |
| 6112133 | 72 | 3 | 9 | 378.6 | 254.2 | 374.9 | 3674 | 337.4 | 3307 |
| 6112136 | 80 | 3-1/4 | 10 | 476.6 | 320.0 | 454.8 | 4457 | 409.3 | 4011 |
| 6112138 | 88 | 3-5/8 | 11 | 565.1 | 379.4 | 553.9 | 5428 | 498.5 | 4885 |
| 6112140 | 96 | 4 | 12 | 689.1 | 462.6 | 663.2 | 6499 | 596.9 | 5849 |
a. Bespoke diameter and length is available.
b. ±5% tolerance according to ISO 2307:2010.
c. LDBF=Line Design Break Force according to OCIMF Mooring Equipment Guidelines 4(MEG4)
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
