Capella
Crane Hosit Rope

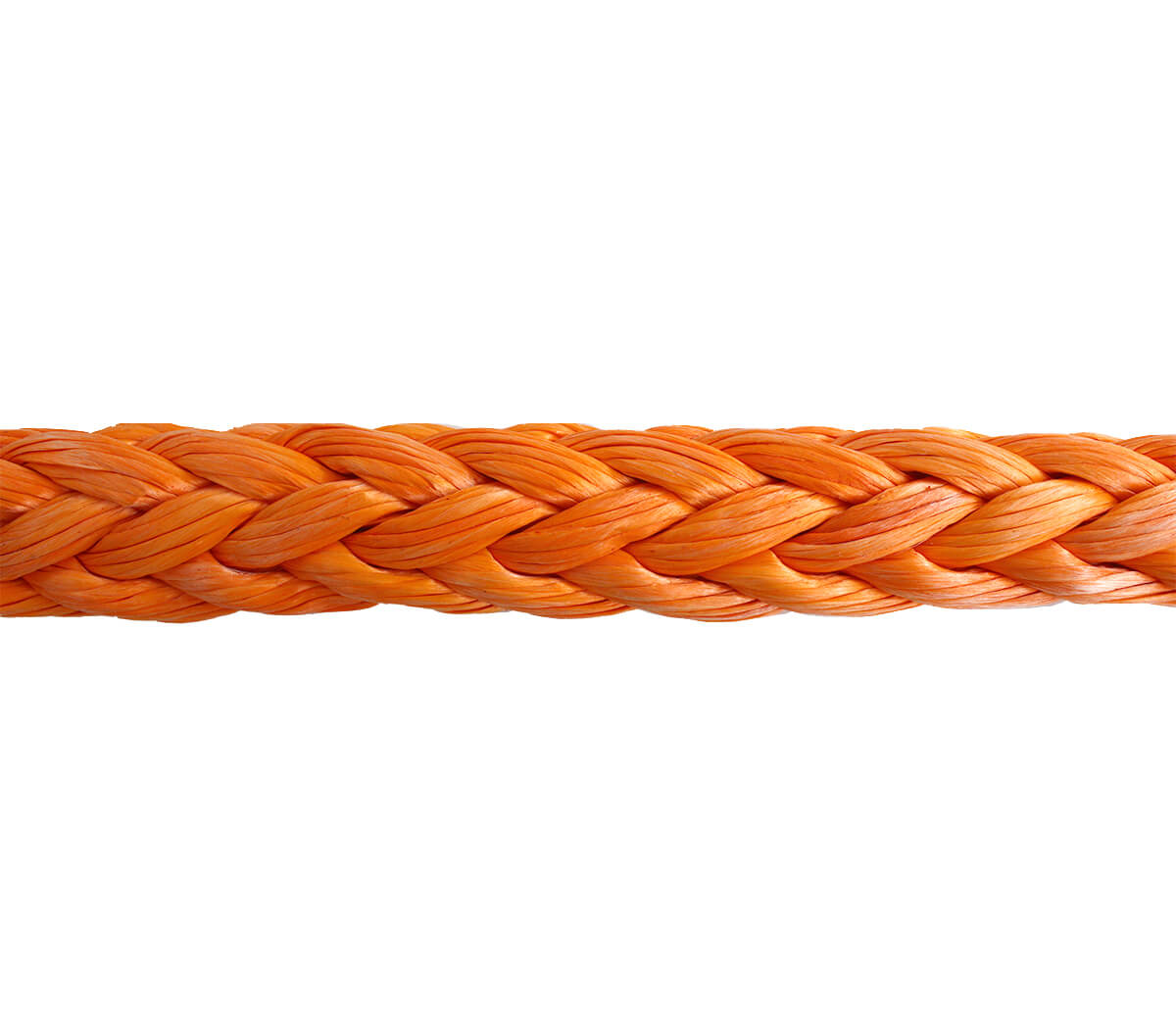

Capella Crane Hosit Rope features 12-strand braided HMPE rope listed for crane-hoist applications. The source model name is Crane Hosit Rope; review the technical table before specifying a hoist line.
- Product family
- Lifting Rope
- Industry
- Lifting
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
HMPE crane hoist rope
Capella Crane Hosit Rope features 12-strand braided HMPE rope listed for crane-hoist applications. The source model name is Crane Hosit Rope; review the technical table before specifying a hoist line.
For a quotation, specify the required capacity, sling length, hitch or leg configuration, fittings and quantity. This is a non-stocked product; confirm the exact assembly and applicable ratings before ordering.
Overview
The Hosit rope is made of HMPE fiber with low creep,The rope with unique method treatment,ultra high abrasion risistance makes rope have long life and more durable. At the same size of steel rope options, HMPE solutions can be more ligher , the HMPE rope is easier to move and control.Significantly improving the workforce.
Construction, Features and Applications
Construction:
12 strand braided
Features:
Floatable
Easy splicing
Easy to inspect
Extremely low stretch
Very good Abrasion resistant
Highly flex-fatigue resistant
Bespoke diameter and length is available
Applications:
Crane hoist rope. Heavy lifting
Technical Specifications
| Item Number | Size(mm) | Size(inch) | Circ.(inch) | Weight(kgs/100m) | Weight(lb/100ft) | Break Load(kgs) | Break Load(lbs) |
| 2211042 | 6 | 1/4 | 3/4 | 2.5 | 1.68 | 3300 | 7200 |
| 2211052 | 8 | 5/16 | 1 | 4.3 | 2.89 | 5600 | 12300 |
| 2211062 | 10 | 3/8 | 1-1/8 | 6.2 | 4.16 | 8500 | 18700 |
| 2211072 | 11 | 7/16 | 1-1/4 | 7.2 | 4.83 | 10442 | 23000 |
| 2211082 | 12 | 1/2 | 1-1/2 | 9.7 | 6.51 | 13600 | 30000 |
| 2211092 | 14 | 9/16 | 1-3/4 | 11.8 | 7.92 | 15900 | 35000 |
| 2211102 | 16 | 5/8 | 2 | 15.2 | 10.20 | 20600 | 45000 |
| 2211112 | 18 | 3/4 | 2-1/4 | 20.7 | 13.90 | 26600 | 58600 |
| 2211122 | 20 | 13/16 | 2-1/2 | 26.5 | 17.79 | 34600 | 76200 |
| 2211132 | 22 | 7/8 | 2-3/4 | 30.7 | 20.61 | 37900 | 83500 |
| 2211142 | 24 | 1 | 3 | 34 | 22.83 | 45500 | 100200 |
| 2211152 | 26 | 1-1/16 | 3-1/4 | 42.9 | 28.80 | 55600 | 122500 |
| 2211162 | 28 | 1-1/8 | 3-1/2 | 49.8 | 33.43 | 61600 | 135700 |
| 2211172 | 30 | 1-1/4 | 3-3/4 | 55 | 36.93 | 68100 | 150000 |
| 2211182 | 32 | 1-5/16 | 4 | 65 | 43.64 | 77600 | 170900 |
| 2211192 | 34 | 1-3/8 | 4-1/8 | 68 | 45.65 | 84200 | 185400 |
| 2211202 | 36 | 1-1/2 | 4-1/2 | 79 | 53.04 | 95200 | 209700 |
| 2211212 | 38 | 1-9/16 | 4-3/4 | 89.9 | 60.36 | 109000 | 240000 |
| 2211222 | 40 | 1-5/8 | 5 | 101.8 | 68.35 | 118000 | 260000 |
| 2211232 | 42 | 1-11/16 | 5-1/4 | 111.3 | 74.72 | 130000 | 286000 |
| 2211242 | 44 | 1-3/4 | 5-1/2 | 122.8 | 82.44 | 139000 | 306000 |
| 2211252 | 46 | 1-13/16 | 5-5/8 | 130 | 87.28 | 146000 | 321600 |
| 2211262 | 48 | 2 | 6 | 135.5 | 90.97 | 158000 | 348000 |
| 2211272 | 50 | 2-1/16 | 6-1/4 | 148 | 99.36 | 173000 | 381000 |
| 2211282 | 52 | 2-1/8 | 6-1/2 | 170 | 114.13 | 181000 | 398700 |
| 2211292 | 56 | 2-1/4 | 7 | 181.6 | 121.92 | 216000 | 475800 |
| 2211302 | 60 | 2-1/2 | 7-1/2 | 231 | 155.09 | 230000 | 506600 |
| 2211332 | 64 | 2-5/8 | 8 | 260 | 174.56 | 265000 | 583700 |
| 2211342 | 68 | 2-3/4 | 8-1/2 | 292 | 196.04 | 295000 | 649700 |
| 2211362 | 72 | 3 | 9 | 322 | 216.18 | 333000 | 733500 |
| 2211372 | 76 | 3-1/8 | 9-1/2 | 356 | 239.01 | 372000 | 819400 |
| 2211392 | 80 | 3-1/4 | 10 | 375 | 251.76 | 408000 | 898700 |
| 2211412 | 86 | 3-1/2 | 10-1/2 | 460 | 308.83 | 480000 | 1057300 |
| 2211442 | 92 | 3-3/4 | 11-1/4 | 565 | 379.32 | 670000 | 1475800 |
| 2211452 | 96 | 4 | 12 | 623 | 418.26 | 750000 | 1652000 |
| 2211472 | 104 | 4-1/4 | 13 | 706 | 473.98 | 832000 | 1832600 |
| 2211492 | 112 | 4-5/8 | 14 | 861 | 578.05 | 1010000 | 2224700 |
| 2211512 | 120 | 5 | 15 | 951 | 638.47 | 1068000 | 2352400 |
Application and Rating Confirmation
Breaking-load values are not working load limits. Confirm the rated working load limit, design factor, hitch, sling angle, number of legs, end fittings, and application suitability for the exact assembly before use. Manufacturer table values and claims are retained as source data, not independent Capella certification.
Technical Reference
Original manufacturer documents may show supplier branding or earlier document names. Confirm the applicable revision and product configuration.
Request a Quote
This is a quote-only, non-stocked product. Request a quotation for the required capacity, dimensions, length, quantity, hitch or leg configuration, end fittings, and application. Pricing, availability, and lead time are confirmed with the quotation.
