Capella
Aramid 12-Strand Rope
Capella Aramid 12-Strand Rope features 12-strand rope made from aramid fiber. Review material and dimensional data for your rope specification without treating breaking load as a working load limit.
- Product family
- Commercial Marine Rope
- Industry
- Commercial Marine
Available by quotation
Request a quote
View technical specifications
Non-stocked product. Tell us your specifications and we will confirm pricing, configuration and lead time.
Capella / Available by quotation
Tell us what you need.
Start with your application and required dimensions. Our team will review the configuration before providing a quotation.
Prefer email? mike@ropehub.com
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.
Product details & technical data
Breaking-load values are not working load limits. Application suitability, dimensions and end terminations must be confirmed before ordering.

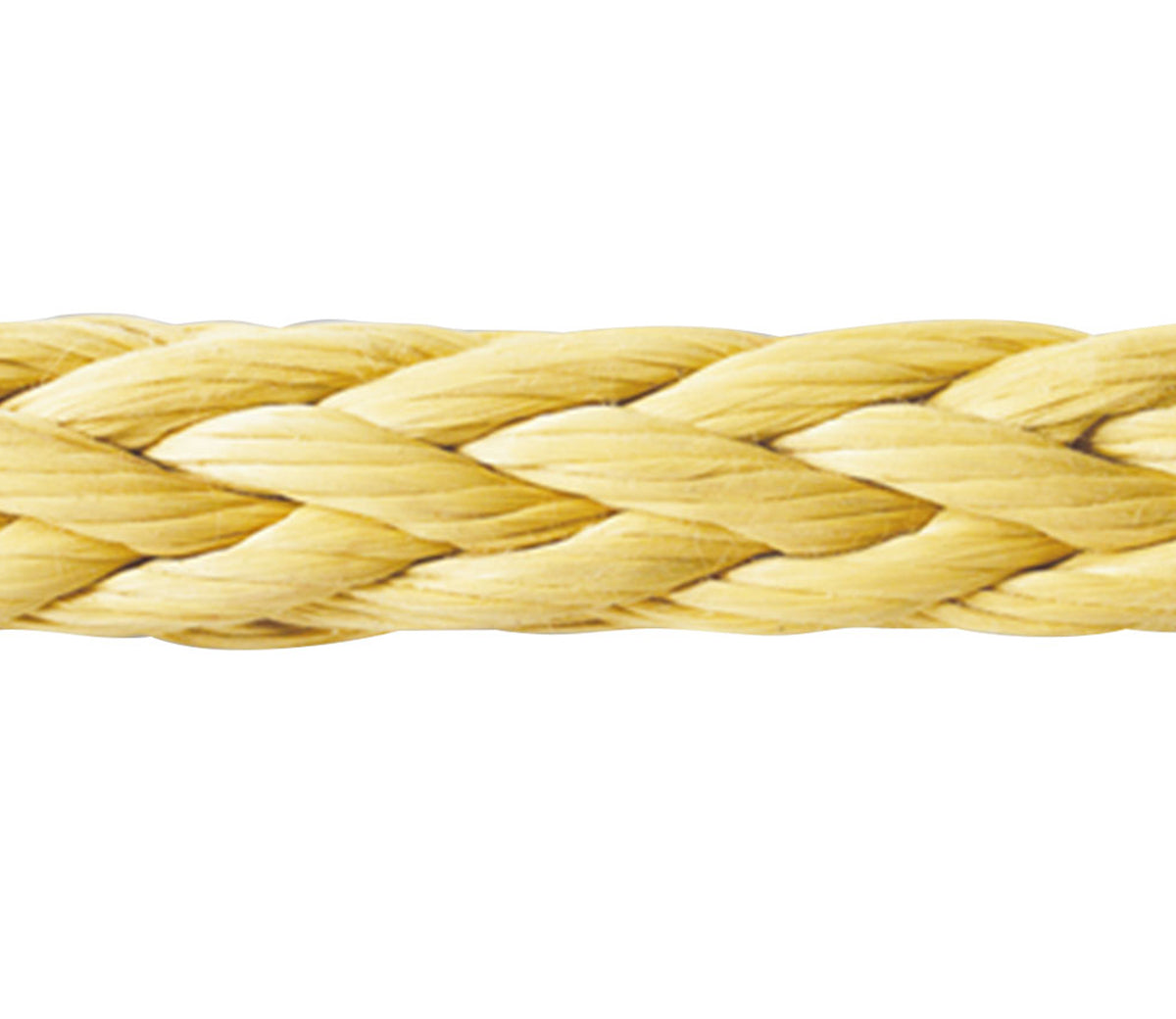

12-strand aramid rope
Capella Aramid 12-Strand Rope features 12-strand rope made from aramid fiber. Review material and dimensional data for your rope specification without treating breaking load as a working load limit.
Request a quote with the required diameter, length, quantity, terminations and intended application. This is a non-stocked product; price and lead time are confirmed for your requirement.
Overview
It's best rope for extreme high temperature working condition, 12-strand construction is heat and flex fatigue resistant and perform very well around pulleys and winches.
Construction, Features and Applications
Material Properties:
Melting Point :450℃~500℃
Specific Gravity: 1.39~1.44
Elongation at Breaking:3~5%
Features:
Excellent Heat Resistance
Abrasion Resistant
Easy Splicing
Low Elongation
Bespoke diameter and length is available.
Applications: Winch line. Control line. Lifting sling.
Technical Specifications
Item Number |
Size(mm) |
Size(inch) |
Circ.(inch) |
Weight(kgs/100m) |
Weight(lb/100ft) |
Breaking Load(kg) |
Breaking Load(lb) |
6125011 |
3 |
1/8 |
3/8 |
1.1 |
0.74 |
960 |
2100 |
6125021 |
4 |
5/32 |
15/32 |
1.3 |
0.87 |
1200 |
2600 |
6125031 |
5 |
3/16 |
9/16 |
2 |
1.34 |
2500 |
5500 |
6125041 |
6 |
1/4 |
3/4 |
3.1 |
2.08 |
4200 |
9200 |
6125051 |
8 |
5/16 |
1 |
4.9 |
3.29 |
5300 |
11700 |
6125061 |
10 |
3/8 |
1-1/8 |
6.6 |
4.43 |
8100 |
17800 |
6125071 |
11 |
7/16 |
1-1/4 |
10.1 |
6.78 |
9700 |
21400 |
6125081 |
12 |
1/2 |
1-1/2 |
12.1 |
8.12 |
14100 |
31000 |
6125091 |
14 |
9/16 |
1-3/4 |
21.2 |
14.23 |
15900 |
35000 |
6125101 |
16 |
5/8 |
2 |
29.2 |
19.60 |
17500 |
38500 |
6125111 |
18 |
3/4 |
2-1/4 |
35.8 |
24.03 |
23000 |
50700 |
6125131 |
22 |
7/8 |
2-3/4 |
39.5 |
26.52 |
26000 |
57300 |
6125141 |
24 |
1 |
3 |
45.8 |
30.75 |
36000 |
79300 |
Breaking-load values are not working load limits. Diameter, length, end termination, and application suitability require confirmation before ordering.
Technical Reference
Original manufacturer documents are retained for technical reference and may show the original manufacturer's branding. Specifications require confirmation for the requested configuration.
Request a Quote
This is a quote-only, non-stocked product. Please request a quotation for your required diameter, length, quantity, terminations, and application. Pricing, availability, and lead time are confirmed with the quotation.
