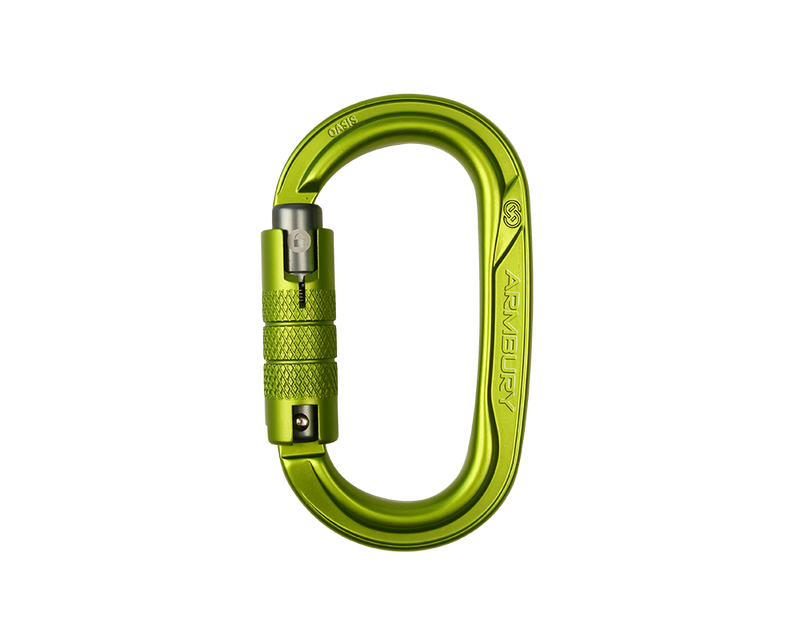

Armbury Oasis TG Oval Twist-Lock Carabiner

Armbury Oasis TG Oval Twist-Lock Carabiner

The Armbury Oasis TG is a full-size oval aluminum carabiner with a twist-lock gate, designed especially for use with pulleys, ascenders and descenders. Its symmetrical shape supports effective loading, while rounded bearing surfaces provide smooth contact with connected equipment and rope.

Balanced handling for technical systems

When connecting a pulley or setting up an ascent or descent device, the Oasis TG combines a symmetrical oval profile with an ergonomic design. Its 22 mm gate opening makes clipping practical, while the keylock nose helps prevent snagging and a lock marking gives a visible warning when the gate is unlocked.

Key features

• Full-size oval profile designed for pulleys, ascenders and descenders
• Twist-lock gate with visual unlocked-gate marking
• Symmetrical shape for effective loading
• Rounded bearing surfaces designed to help extend carabiner and rope service life
• Keylock nose helps reduce snagging
• Hot-forged I-beam aluminum construction balances size, strength and weight
• Individually tested to 10 kN with a unique serial number for traceability, according to the supplied technical sheet

Size and related gate versions

• Oasis TG dimensions: 110 × 63 mm
• This model: twist lock, manufacturer reference 4131424
• Related Oasis versions:
  • screw lock (4131414) and
  • triple lock (4131434)

Technical specifications

• Dimensions: 110 × 63 mm
• Gate: twist lock; gate opening: 22 mm
• Minimum breaking strength, major axis: 26 kN
• Minimum breaking strength, minor axis: 10 kN
• Minimum breaking strength, gate open: 8 kN
• Material: aluminum
• Weight: 78 g/m

Certification & safety

The supplied technical sheet lists CE, EN 12275, EN 362 and UIAA. Check the markings on the item and follow current manufacturer instructions for approved uses, gate operation, device compatibility, inspection and retirement. Verify the gate is locked before loading; strength ratings vary with loading direction and gate condition.
